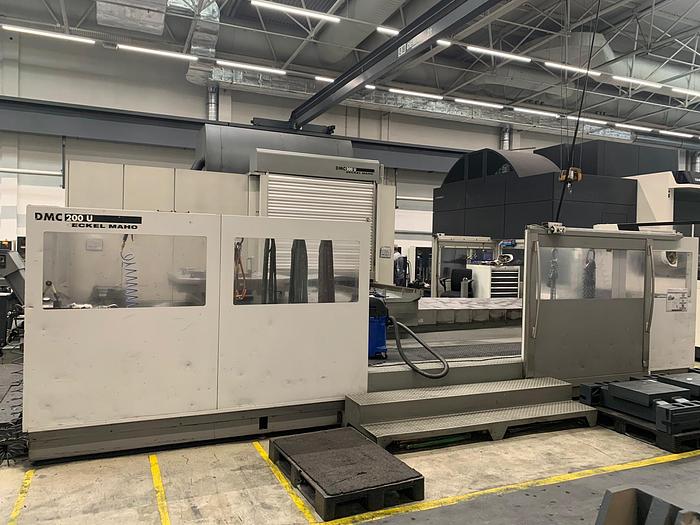

Universal machining center DECKEL MAHO - DMC 200 U

Universal machining center DECKEL MAHO - DMC 200 U

Contact us for price

Schwäbisch Gmünd, Germany

orCall +49 7171 8749911

Description

Universal machining center DECKEL MAHO - DMC 200 U Year of manufacture 2001 CNC control HEIDENHAIN MULLPLUS IT Technical details x-travel 1,800 mm y-way 2,000 mm z-travel 1,100 mm Main spindle: Speed range - main spindle max. 8,000 min / -1 Drive power - main spindle 30/20 kW Tool holder SK 50 Milling head H / V - swiveling B-axis Pallet changer: Number of pallets 2 Pallet size 1,600 x 1,400 mm Max. Workpiece dimensions 1,950 x 1,100 mm Max. Workpiece weight 3,000 kg Tool magazine: Number of tool places 180 pos. Tool holder SK 50 max.tool diameter 110 mm max.form throughput with free side box. 230 mm max.tool length 450 mm max.tool weight 20.0 kg max.total weight 800 kg Total power consumption 73 kVA Machine weight approx. 37.0 t Required space approx. 12.0 x 12.0 x 4.5 m

Specifications

ManufacturerDECKEL MAHO
Year2001
ConditionUsed
Stock Number2100092
