DUNKES HRW 63 hydraulic straightening press

DUNKES HRW 63 hydraulic straightening press

Contact us for price

Schwäbisch Gmünd, Germany

orCall +49 7171 8749911

Description

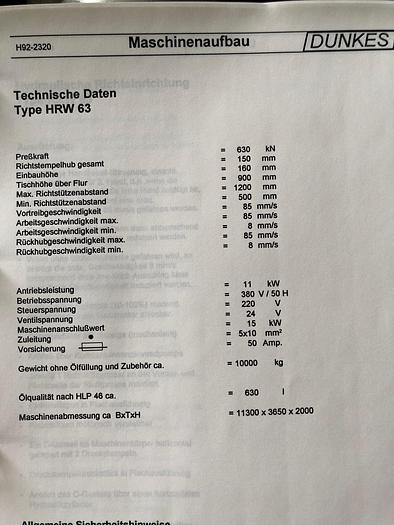

Hydraulic straightening press DARK HRW 63 Year of construction 1993 Pressing force 630 kN Stamp stroke total 150 mm Installation height 160 mm Table height above floor 900 mm Max. Distance between props 1200 mm Min. Distance between props 500 mm Propulsion speed 85 m / s Working speed min. 8 mm / s max. 85 mm / s Oil pressure max. 266 bar Drive power 11 kW Machine dimensions approx. WxDxH 11300 x 3650 x 2000 mm Weight without accessories approx. 10 to.

Specifications

ConditionUsed
Stock Number1004501
