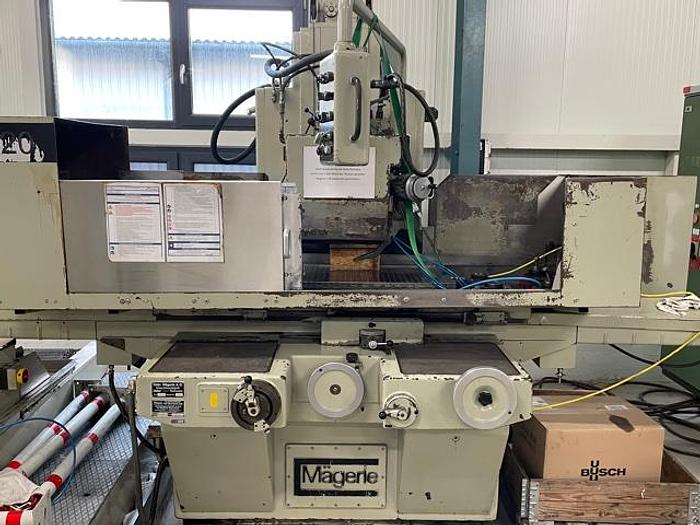

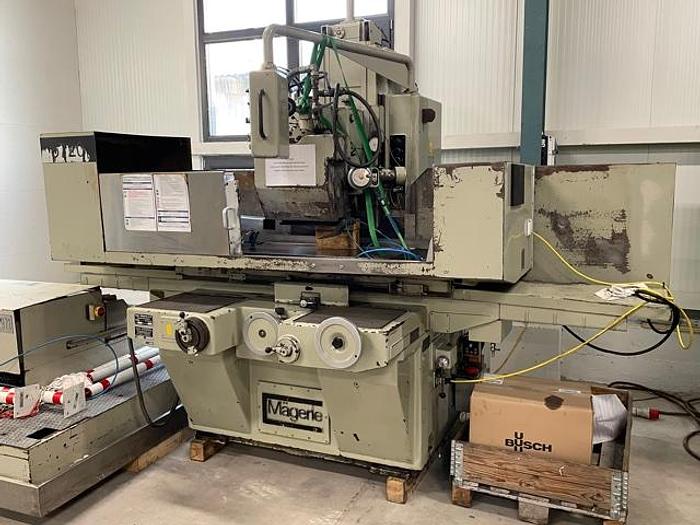

Surface grinding machine MÄGERLE F-100-R-S1

Surface grinding machine

MÄGERLE F-100-R-S1

Grinding length max. 1000mm

Clamping surface of the table 1050/450mm

Grinding width max. 530mm

Cross stroke of worktable max. 480mm

Height table/spindle centre min/max. 130/755mm

Vertical movement of the sanding support 625mm

Speed of longitudinal table 3-30 m/min.

Automatic vertical infeed 0,0003 - 0,03mm

Rapid feed and return 210 mm/min

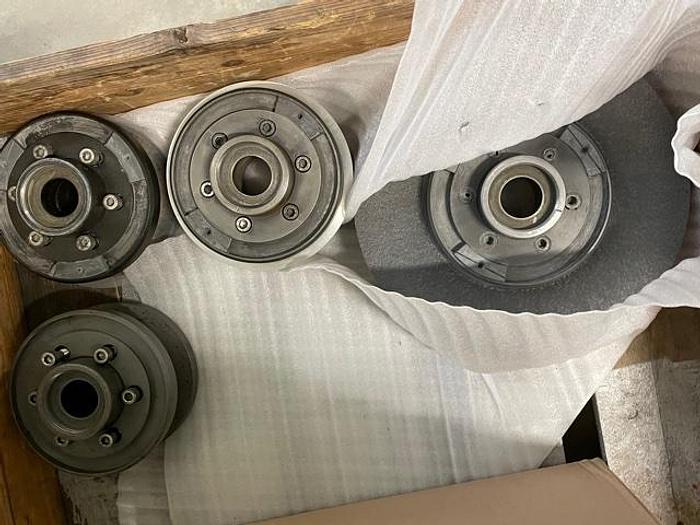

Grinding wheel size 400 x 50 x 127mm

Grinding wheel speed 1620 rpm

Connected load 14 kVA

Weight approx. 5000kg
