CNC Machining Centre Vertical Cincinnati CFV 550

CNC Machining Centre Vertical Cincinnati CFV 550

Contact us for price

Schwäbisch Gmünd, Germany

orCall +49 7171 8749911

Description

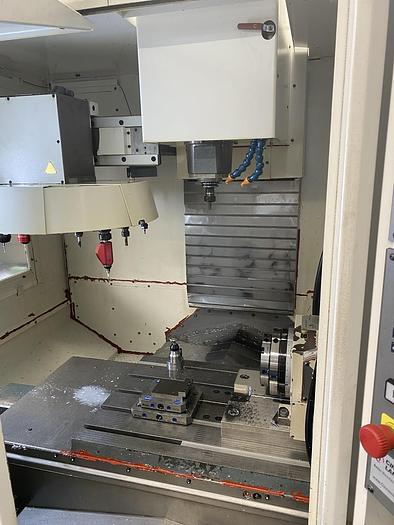

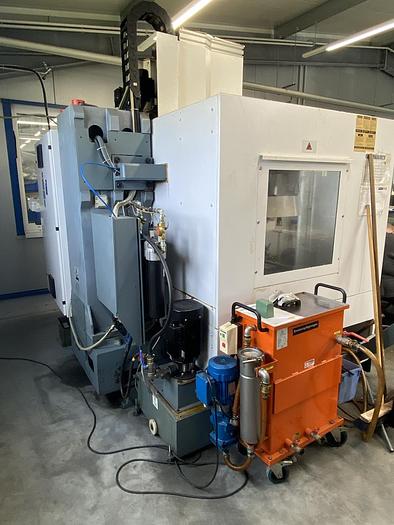

CNC Machining Centre Vertical

Cincinnati CFV 550

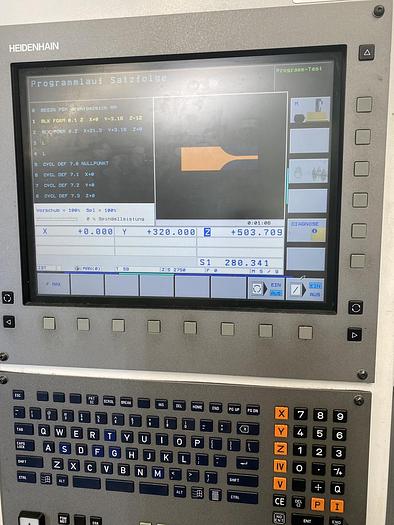

CNC control HDH iTNC 530

Year of manufacture 2005


Travels

 x 540 mm

 Y 540 mm

 z 560 mm


WORK TABLE

 Table size 700 x 520 mm


Axis speeds

 Rapid traverse (x, y, z) 30 m / min

 Max. feed (x, y, z) 20 m / min


Spindle

 8000 rpm


21 compartment tool changer

 Storage capacity of 21 tools SK40

 Max. Tool weight 6,8 kg

 Max. Tool diameter 80 mm (160mm)

 Max. tool length Tool length 385 mm

 Chip to chip time 6.0 sec.


WEIGHT & Mass

 Weight 4200 kg

 Footprint (width x depth) 2.6 x 3.0 m

 Max. Height 2,7 m


Extras

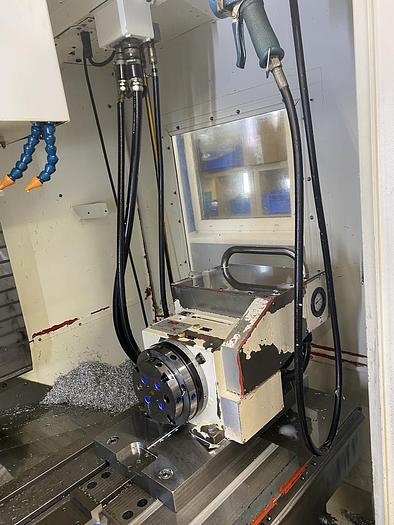

 4th axis rotary table

 Chip conveyor

 IKZ


Translated with www.DeepL.com/Translator (free version)

Specifications

Year2005
ConditionUsed
