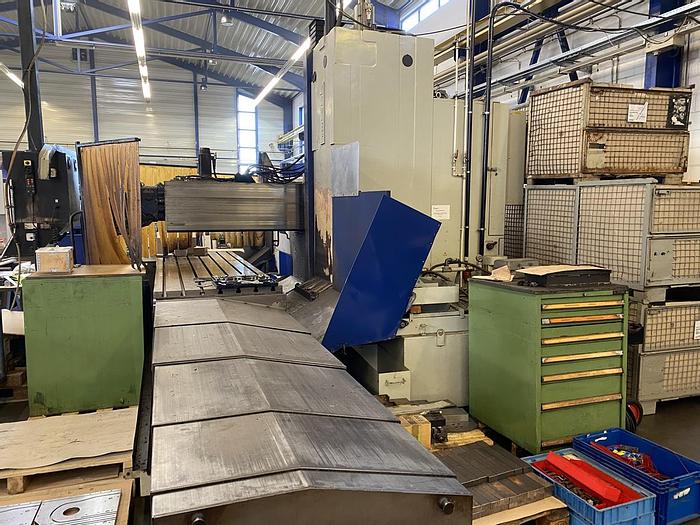

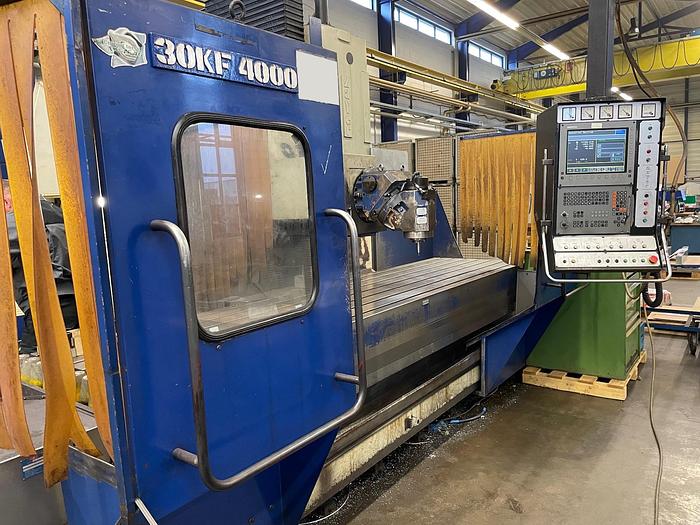

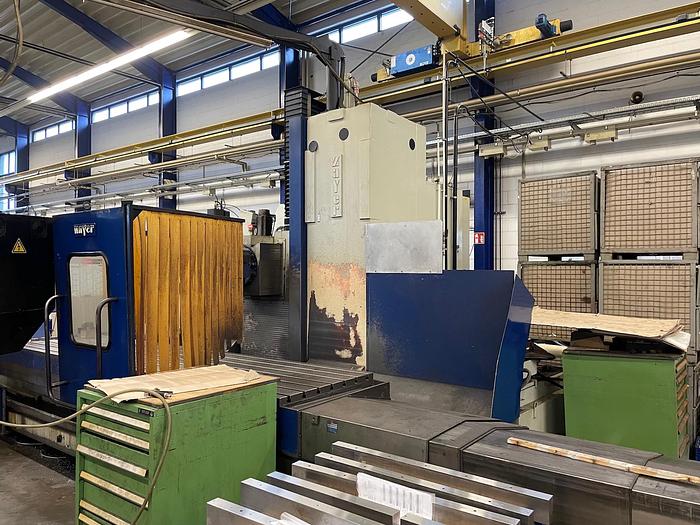

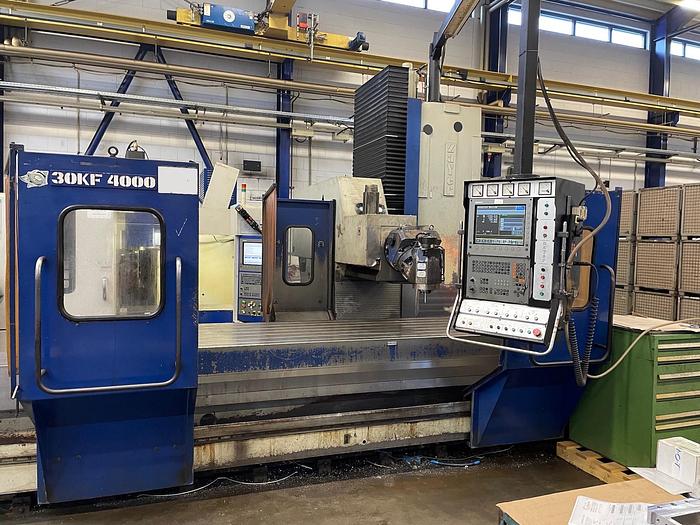

CNC bed milling machine ZAYER 30 KF 4000

CNC bed milling machine

ZAYER 30 KF 4000

year of manufacture: 1999

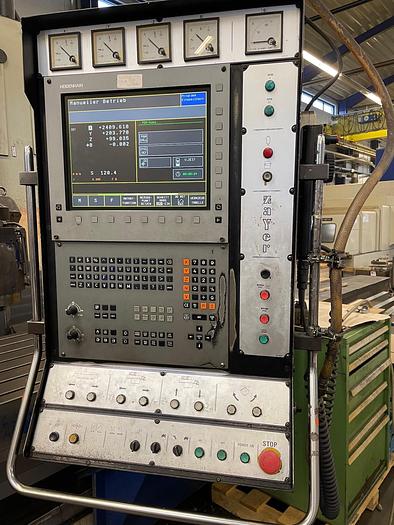

Control: CNC Heidenhain TNC 426

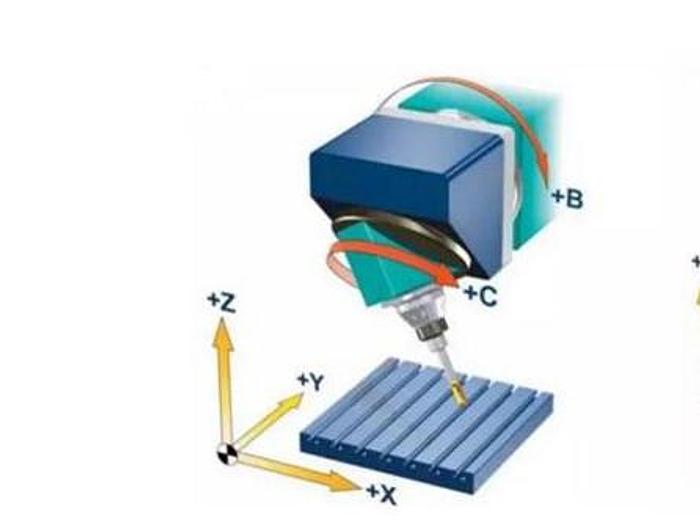

Number of simultaneous axes: 4 (XYZ B + 1 positioning axis C swivel head)

Table size: 4000 x 1.000 mm

Max. table load: 10,000 kg

Axis travel (X, Y, Z): 3700 x 1500 x 1500 mm

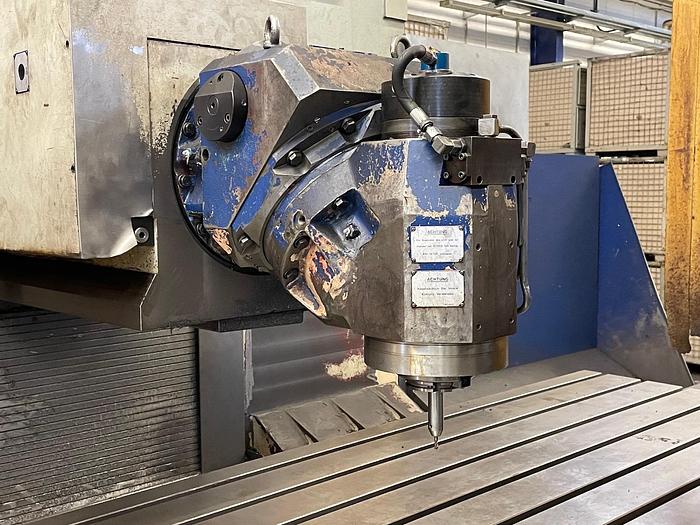

Universal milling head 3000 min-1 with automatic swivelling in the front plane hori./vertical

Turntable 360,000 positions as 4th axis

spindle motor: 37 KW

Spindle taper: ISO 69871 AD 50 & 7388 / 2

Main spindle speed: 35-3000 1/min (2 steps)

Rapid traverse (X,Y,Z): 15m/min

Feed rate: 6-5000 mm

Power: 66,65 KVA

Floor space requirement: approx. 10 x 5.1 x 4.1 m

Accessories:

Chip conveyor, cooling tank 1,000 l with two pumps 2.5 + 15 bar.
