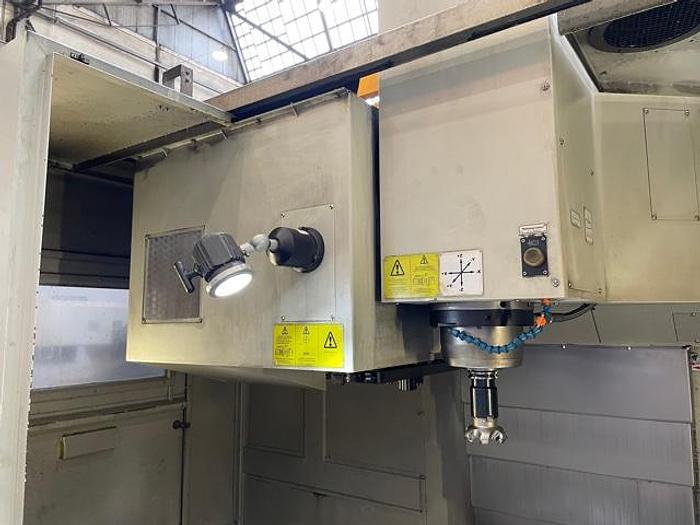

CNC Machining Centre BRIDGEPORT UNITECH GX 1000

CNC Machining Centre

BRIDGEPORT UNITECH GX 1000

Year of manufacture 2011

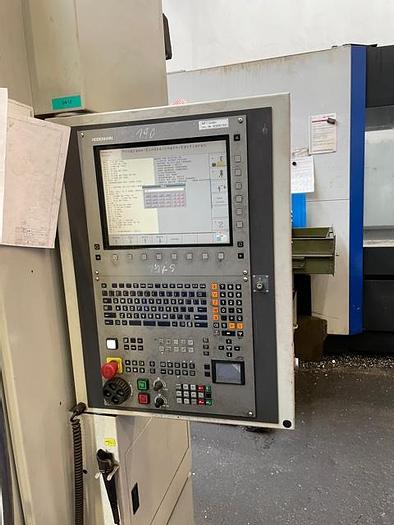

CNC control HEIDENHAIN iTNC 530

X-axis (table longitudinal adjustment) 1.000 mm

Y-axis (table cross adjustment) 540 mm

Z-axis (support vertical adjustment) 540 mm

Clamping surface 1,120 x 540 mm

Max. table load (centre) 700 kg

Work feed range (infinitely variable) 1 ... 12,000 mm/min

rapid traverse 30 m/min

Tool holding system (DIN 69871/A) SK 40 taper shank

Drive power at S6 40 % (SIEMENS) 13 kW

Torque at S6 40 % 83 Nm

Speed range 0 ... 8,000 min-1

Number of tool magazines 24 places

Change time (chip to chip) 5 sec.

Weight 5500 kg

Accessories:

El. handwheel

Measuring probe

Chip conveyor

IKZ

Machine switch-on hours: 15110h

Spindle hours: 3658h
