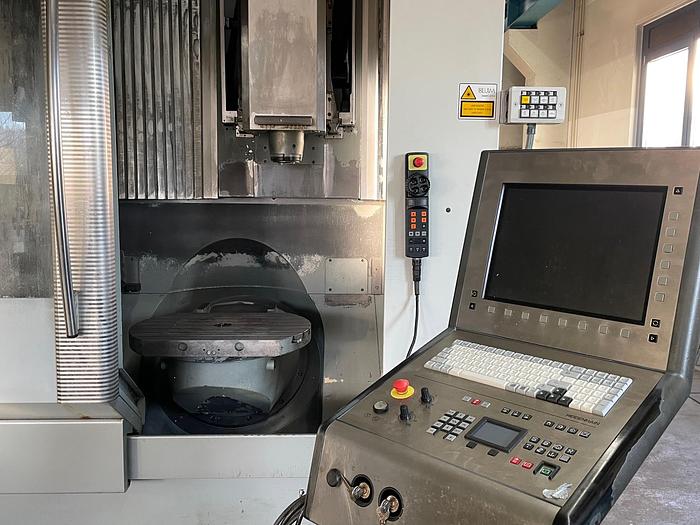

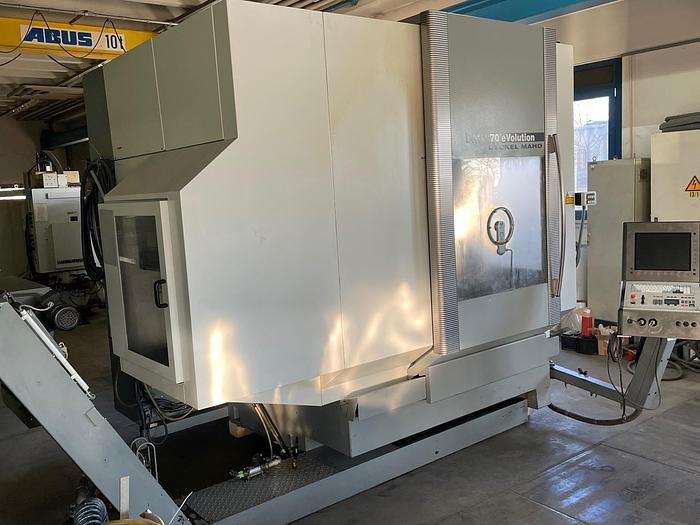

5-axis universal machining centre

DECKEL-MAHO DMU 70 eVolution

Year of manufacture 2002

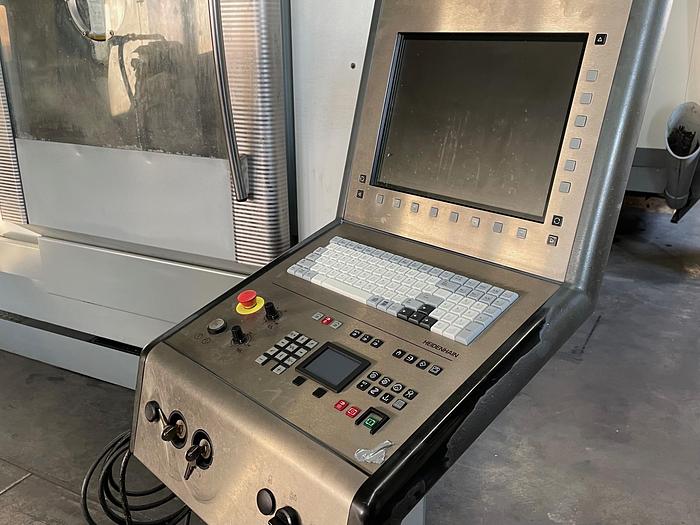

CNC control Heidenhain MillPlus

Technical data:

Travel X750/Y600/Z520

Total power requirement 66 kVA

Tool holder spindle taper SK40 DIN 69871A

Max. Spindle speed up to 18000 1/min

Feed rate X, Y, Z up to 20,000 mm/min

Rapid traverse X, Y, Z 50 m/min

Tool magazine : 60 places (2x 30 places)

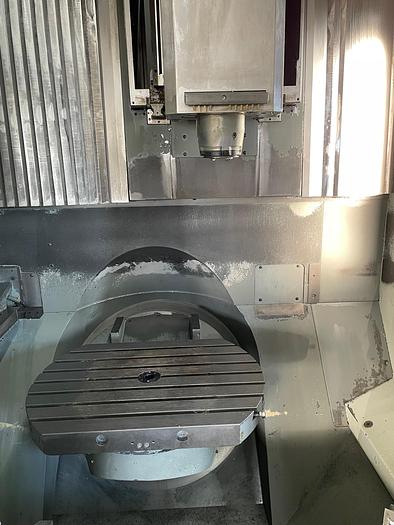

NC rotary table diameter 700mm x 500mm, 9 grooves 14mm , 63mm spacing

Table load 350 KG

Dimensions and weight:

Space requirement machine including operation and maintenance

Depth 5.0 metres Width 6.6 metres Height 2.8 metres

Weight approx. 9500 kg

Machine documents

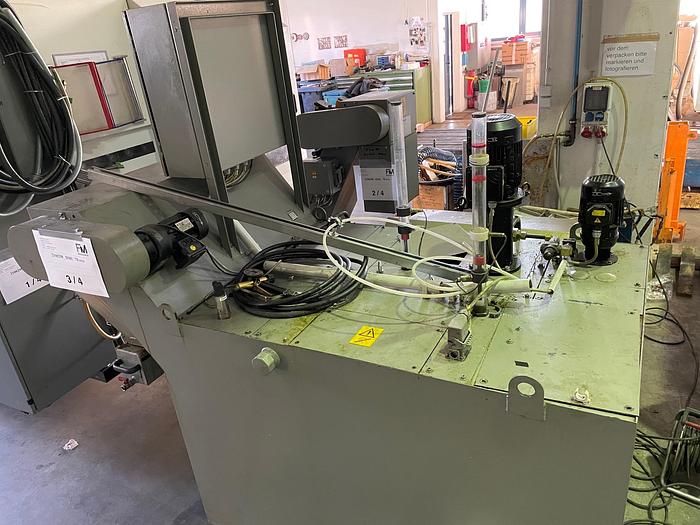

Coolant tank with paper tape separator

IKZ 40bar

Tool breakage monitoring

Visiport

Electronic handwheel

Chip conveyor
