Staehleschleifmaschine Klingel HSM 4

Sold

Staehleschleifmaschine Klingel HSM 4

Location:Schwäbisch Gmünd, Germany

Description

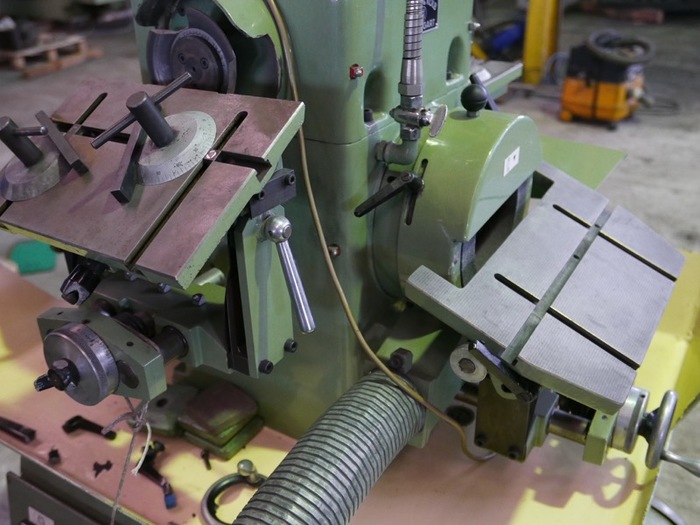

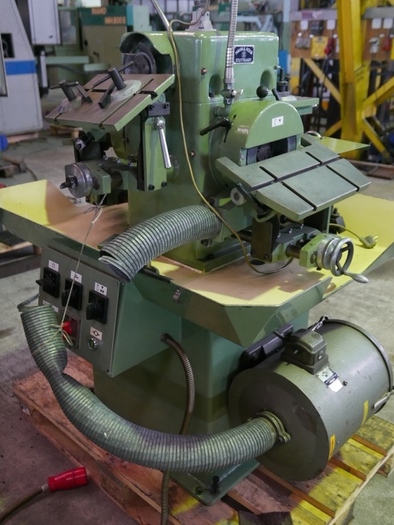

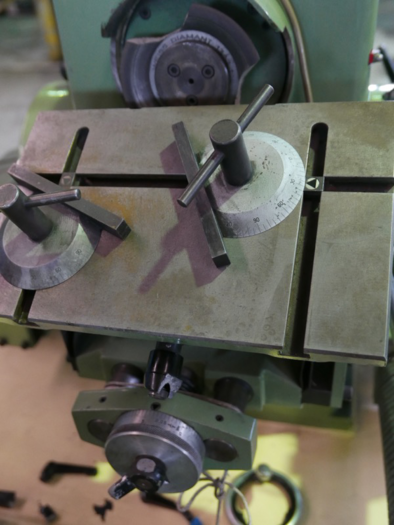

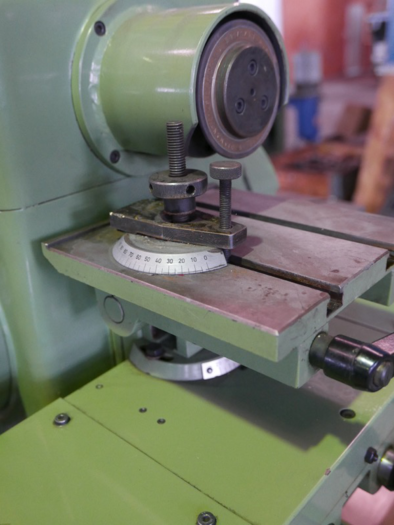

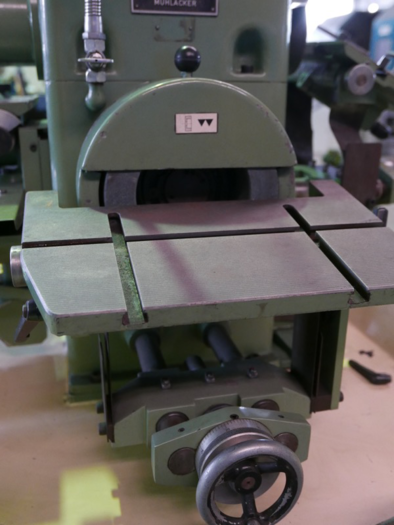

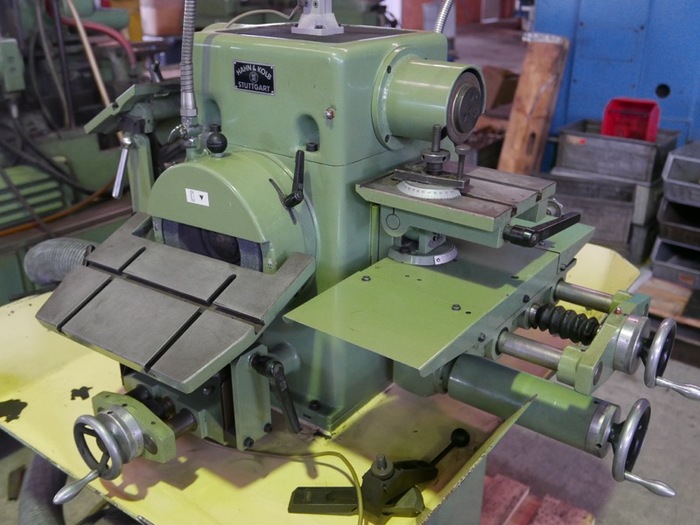

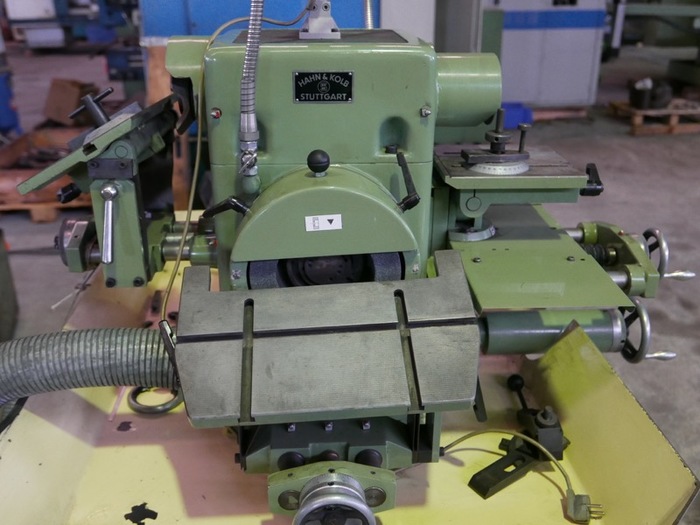

Staehleschleifmaschine Bell HSM 4 Built in 1977 Workspace for steels up to 40 x 40 mm Working height to center main grinding spindle 940 mm to the middle of the lapping spindle 1140 mm Speed 1400/2800 rpm Grinding wheels diameter 200 mm Circulating speed 28 m / s Laughing discs diameter 150 mm Diamond discs diameter 100 mm Steel support tables elec. braking means Main grinding motor 1,1 / 1,5 kW Space required 870 x 1100 mm Condition: used 1004120

Specifications

ConditionUsed
Serial Number6129-K
Stock Number1004125
