1998 CITIZEN L 32

Sold

1998 CITIZEN L 32

Location:Schwäbisch Gmünd, Germany

Description

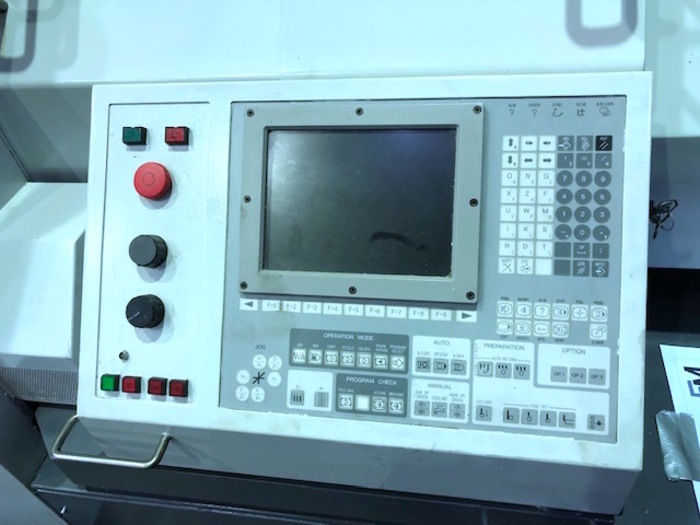

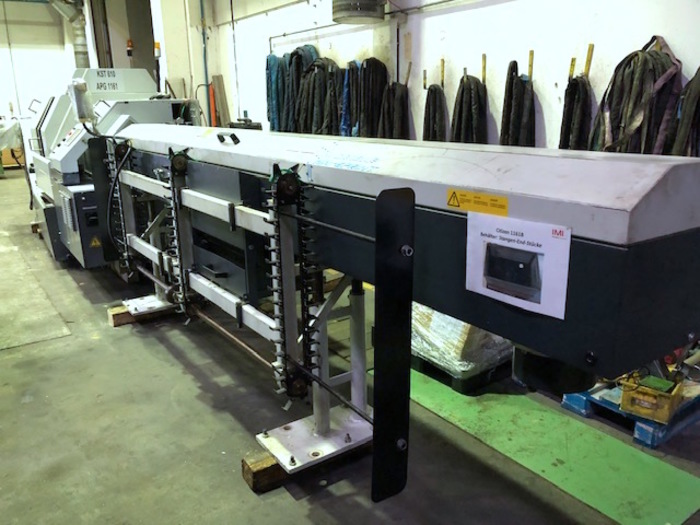

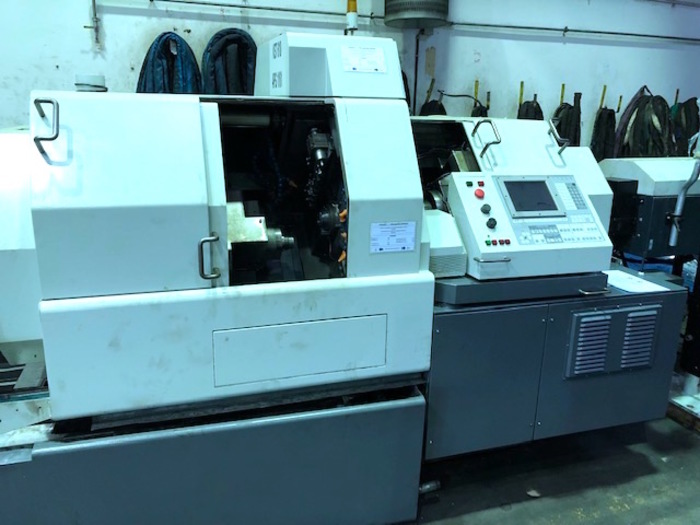

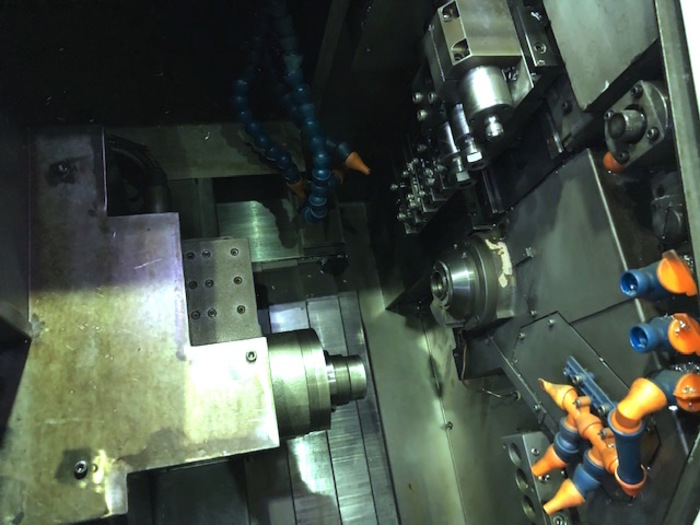

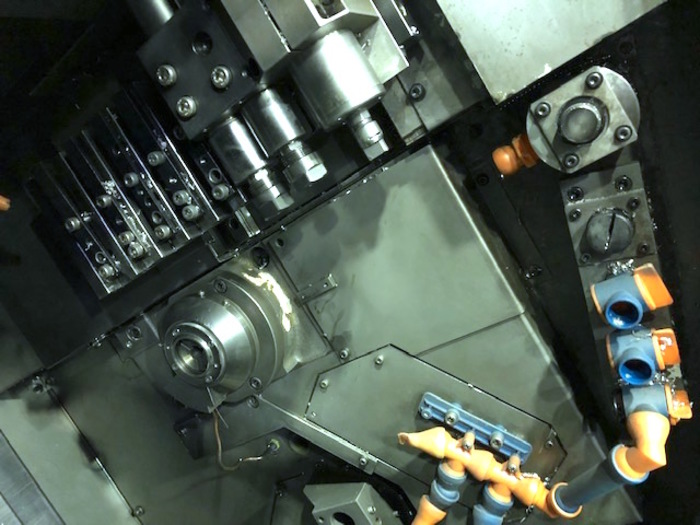

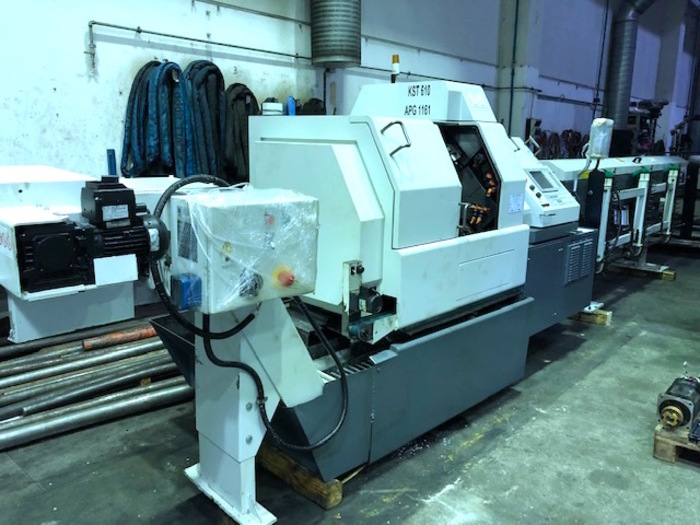

CNC lathe Citizen L32 Year of construction 1998 CNC control MITSUBISHI MELDAS Technical specifications Number of spindles: 2 main spindle Max. Bar diameter: 32 mm Speed: 200 - 8000 rpm Power: 5.5 kW Strokes Z1: 250 mm Axis C counter spindle Max. Bar diameter: 25 mm Speed: 200 - 6000 rpm Power: 2.2 kW Stroke Z2: 120 mm Number of fixed tools: 5 Number of powered tools: 4 Speed of the driven tools: 200 - 5000 rpm Power of the driven tools: 0.4 kW Number of fixed positions: 3 Number of fixed positions: 5 Supply voltage: 400 V / 50 Hz Power: 11 kW Dimensions: 2785 x 1270 x 1760 mm Weight: 2600 kg Extras: - driven guide bush - piece of catcher - piece of conveyor belt - Lubrication container with pump - Chip conveyor - Bar magazine LNS HYDROBAR MINISPRINT - Bar length: 3200 mm

Specifications

ManufacturerCITIZEN
ModelL 32
Year1998
ConditionUsed
Stock Number1004408
