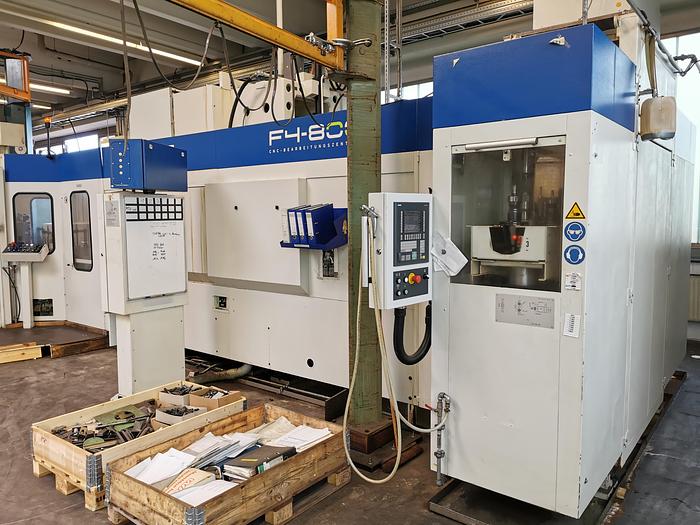

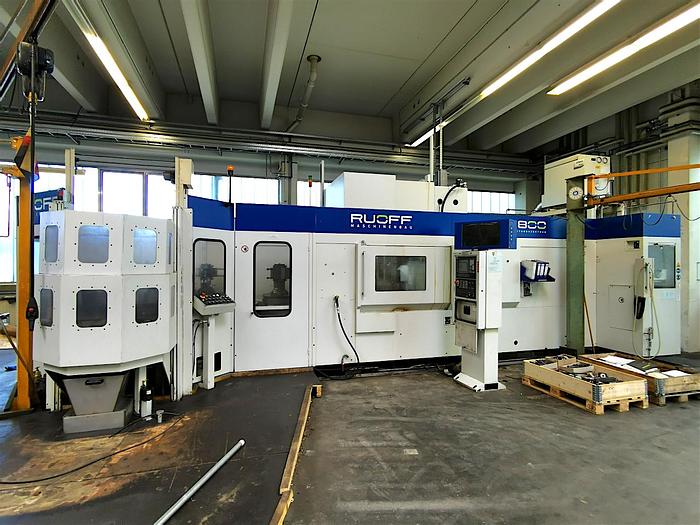

Horizontal machining center HELLER RUOFF F4 - 800 (BA2)
No longer available
Horizontal machining center HELLER RUOFF F4 - 800 (BA2)
Schwäbisch Gmünd, Germany
Description

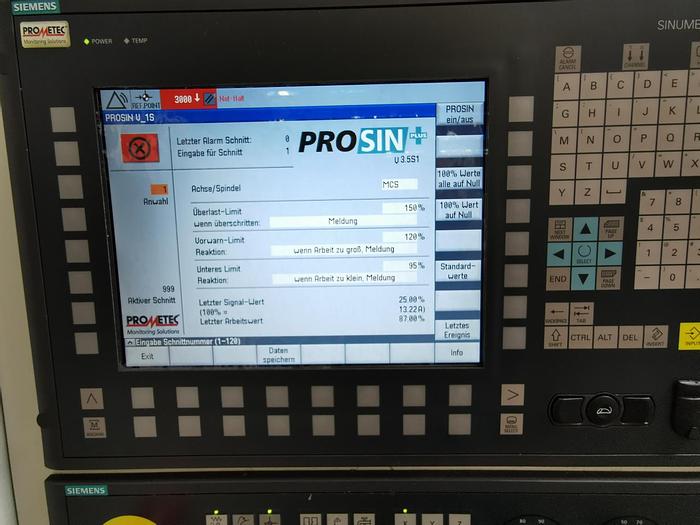

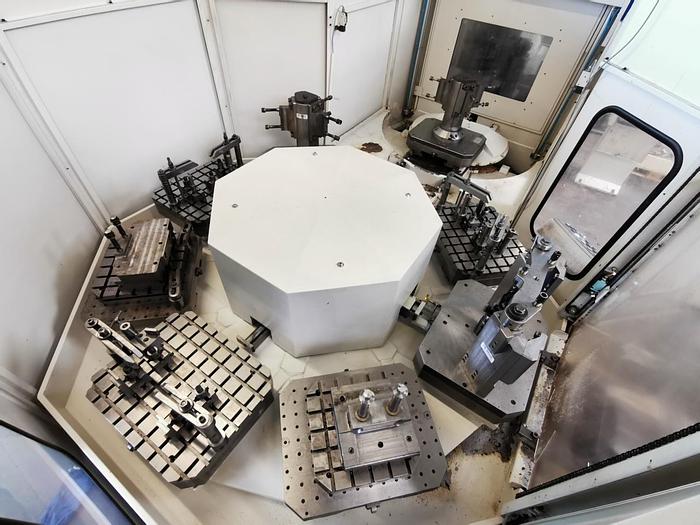

Horizontal machining center HELLER RUOFF F4 - 800 (BA2) Retrofit 2014 by Ruoff Control Siemens 840 D Travel X / Y / Z 800/800/630 mm Feed force X and Y axis 15000 N Feed force Z-axis 24000 N 40-fold tool changer Chain magazine SK 50 NC rotary table resolution 0.02 ° 8-way pallet storage system, 500 x 630 mm Chip conveyor IKZ up to 50 bar Direct position measuring system Spindle speed up to 6,000 rpm Voltage 3-400V Frequency 50 Hz Nominal current 100A Machine weight 12000 kg Required space 4.2 x 5.6 x 3.6m
Specifications
Year | 2014 |
Condition | Used |
Stock Number | 1004980 |
