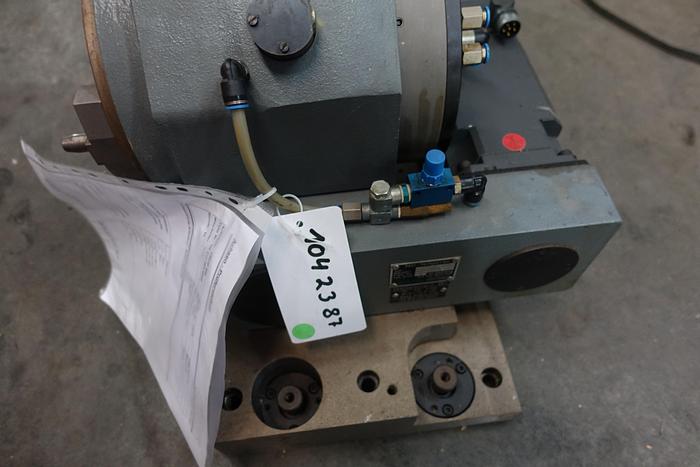

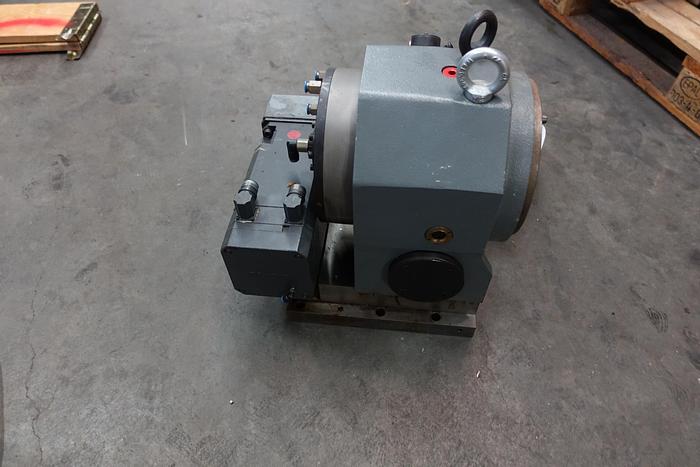

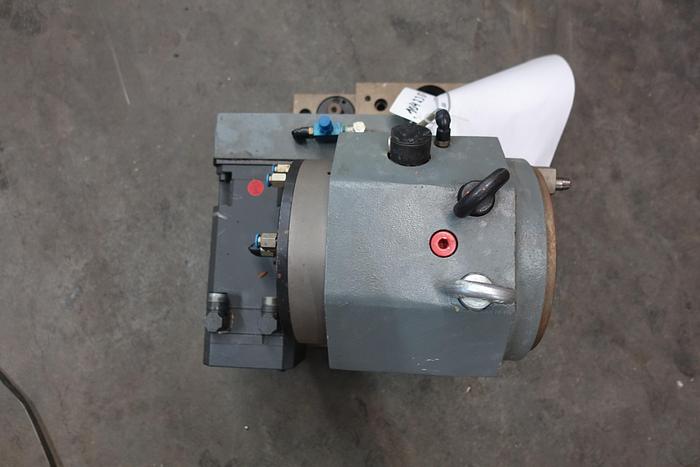

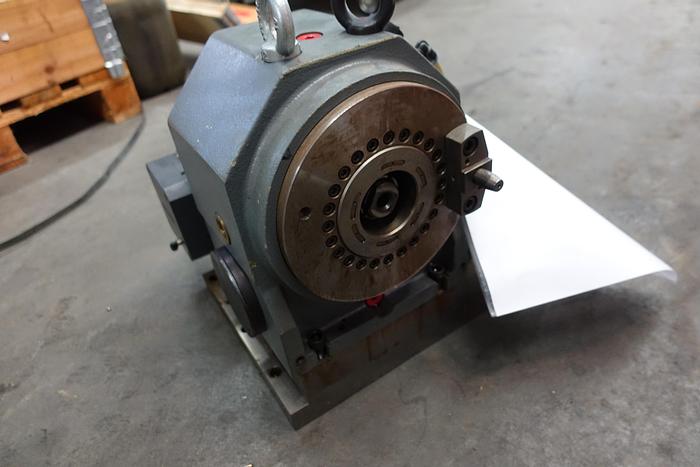

NC dividing head / NC rotary table PEISELER AWUP 200 - 4th axis for CHIRON machining centers
No longer available
NC dividing head / NC rotary table PEISELER AWUP 200 - 4th axis for CHIRON machining centers
Schwäbisch Gmünd, Germany
Description

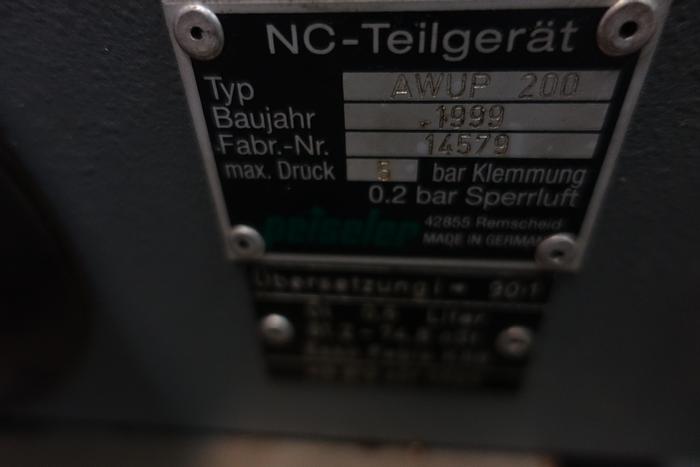

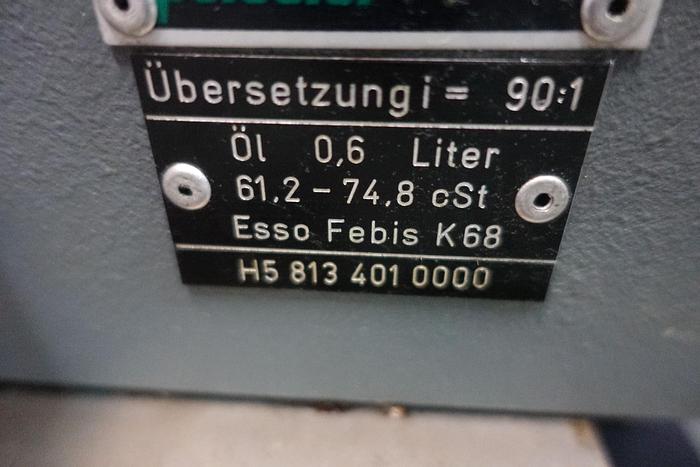

NC dividing head / NC rotary table PEISELER AWUP 200 Year of manufacture 1999 -maximum pressure: 5 bar clamping - 0.2 bar sealing air - Oil: 0.6 liters - 61.2-74.8 cSt -Esso Febis K 68 - Right breakaway torque: 1.4 Nm - Left breakaway torque: 1.5 Nm - Reversing mirror: 0.002mm at 0º 0.002mm at 90º 0.002mm at 180 ° 0.002mm at 270 ° - Swash of the faceplate: 0.007mm - Concentricity of the fitting bore: 0.006mm Length: 400mm Width: 300mm Height: 390mm Weight: 170kg
Specifications
Condition | Used |
Stock Number | 2100179 |
