WAGNER Typ 115 - 30 / 155 - 25 RA-1
No longer available
WAGNER Typ 115 - 30 / 155 - 25 RA-1
Schwäbisch Gmünd, Germany
Description
Elekto chuck
WAGNER magnets
Type 115 - 30/155 - 25 RA-1
Series 115
with pendulum pole pitch
High adhesive forces for milling and rough grinding.

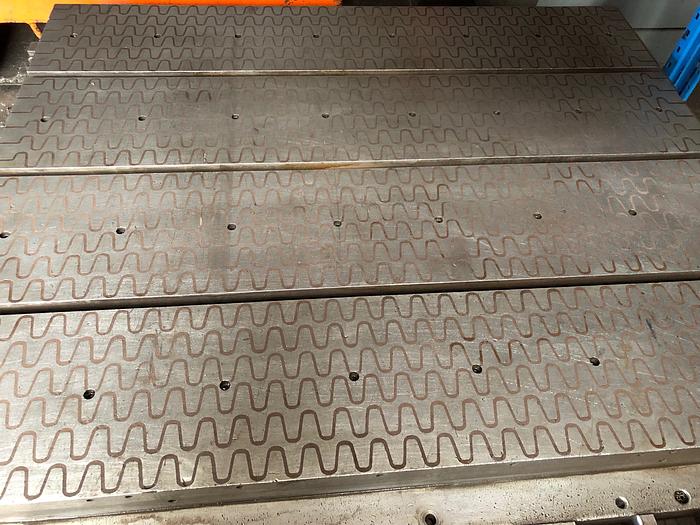

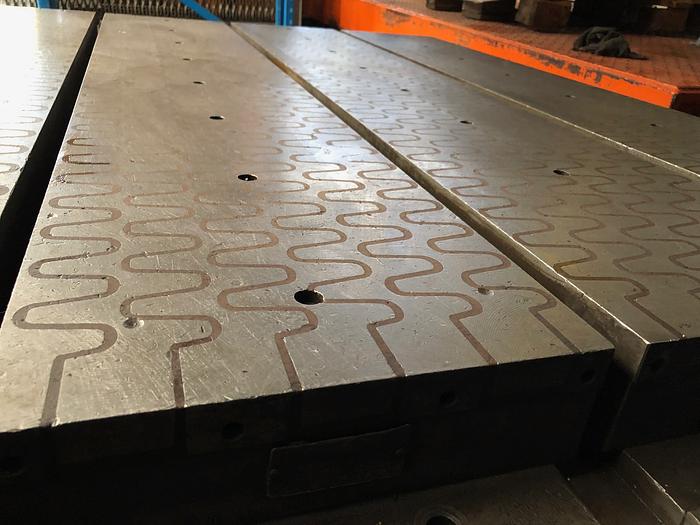

This special type of pole pitch gives you a symmetrical distribution of north and south poles over the entire clamping surface - in the longitudinal and transverse directions. By this arrangement, the clamping plate has a particularly uniform adhesive force over the entire pole surface. Application: grinding, milling

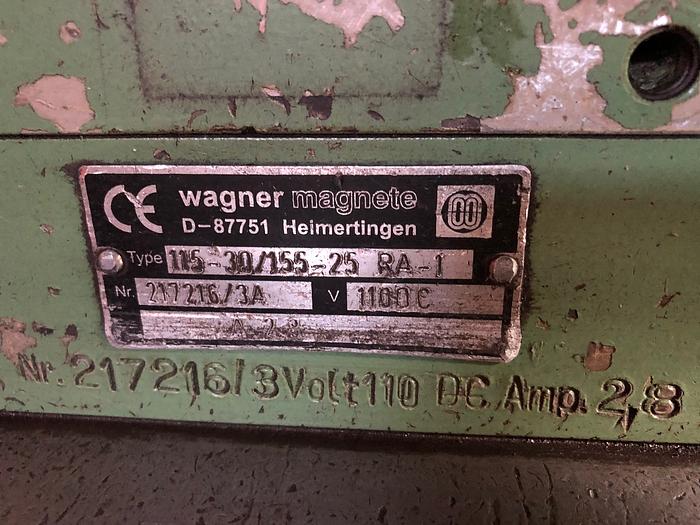

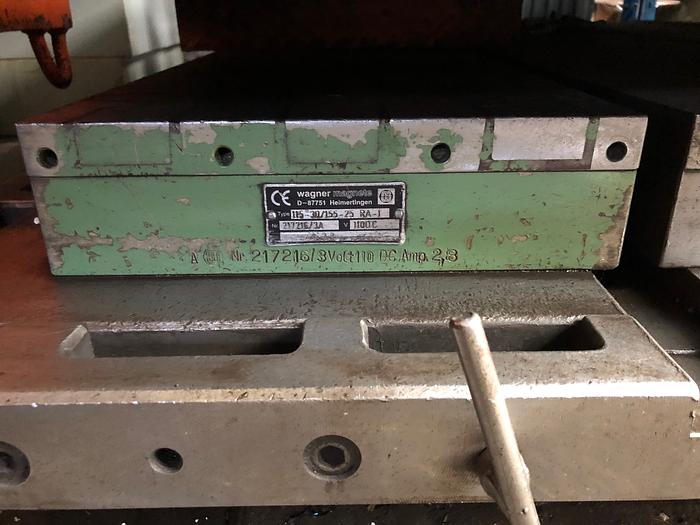

Supply voltage 110 Volt DC, 2.8 A.
Dimensions 1550mm x 300mm x 80mm

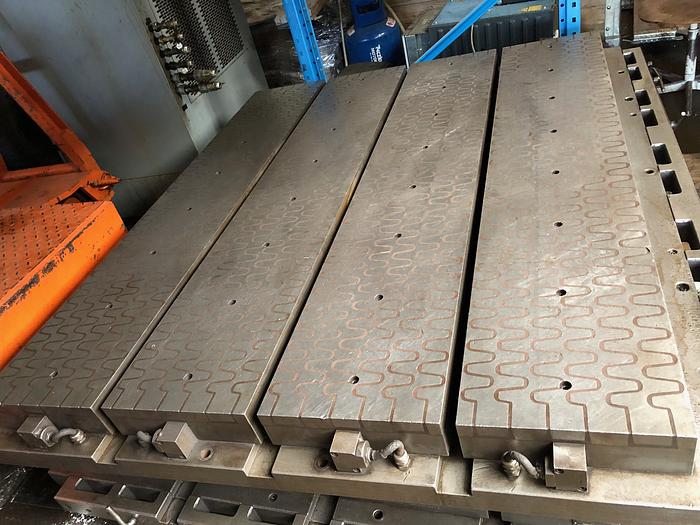

The magnetic chuck can also be used in combination with a total of
4 magnetic chucks are purchased together
Overall dimensions of the clamping surface in the composite: 1550 x 1265mm
Specifications
Manufacturer | WAGNER |
Model | Typ 115 - 30 / 155 - 25 RA-1 |
Condition | Used |
Stock Number | 1004494 |
