Cycle lathe KERN CD320

Cycle lathe KERN CD320

Contact us for price

Schwäbisch Gmünd, Germany

orCall +49 7171 8749911

Description

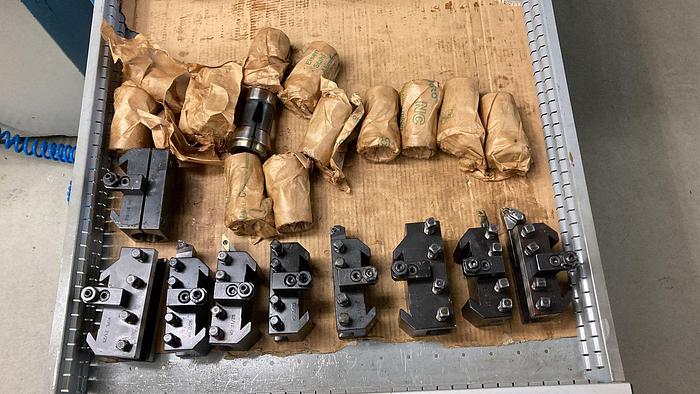

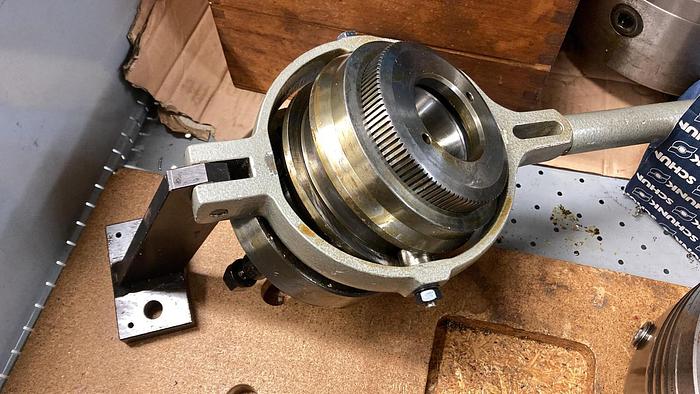

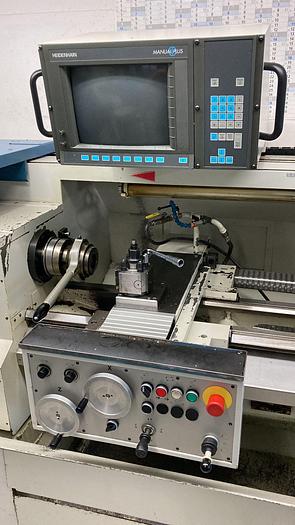

cycle lathe KERN CD320 Year of construction 1997 Control HEIDENHAIN Manual Plus Turning diameter over the bed 320mm Center height 160mm Center distance 800mm Turning diameter over the cross slide 150mm Turning diameter in the offset 380mm - Length of crank 235mm Spindle bore 50mm Spindle pickup: -DIN 55027/5 Spindle speeds: number 3 -Infinitely variable: From - to 1-4000 rpm. Tailstock quill mount: MK 4 - Quill: diameter 60mm - Quill: Stroke 120mm Feeds: -Longitudinal: from - to 0.001-1000mm/rev. -Cross: from - to 0.001-2000mm/rev. rapid traverses: -Longitudinal 10m/min -cross 5m/min Motor 400 volts, cable 11KW Machine dimensions: width x depth x height 2700x1400x1850mm Weight 2370Kg Accessories and equipment: Quick-action chuck device: F48 div. Number of collets 12 Quick-change steel holder: make PARAT div. Number of holders 7 chuck Rotating tip Coolant system

Specifications

Year1997
ConditionUsed
Stock Number22000136
