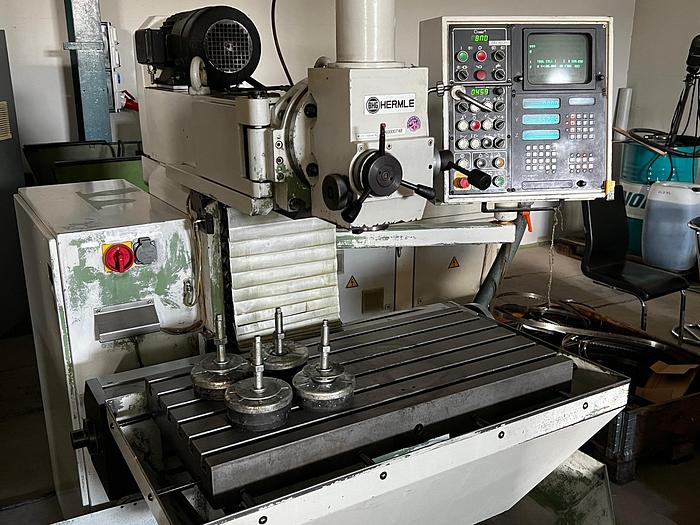

Tool milling machine Hermle UWF 801

Tool milling machine Hermle UWF 801

Contact us for price

Schwäbisch Gmünd, Germany

orCall +49 7171 8749911

Description

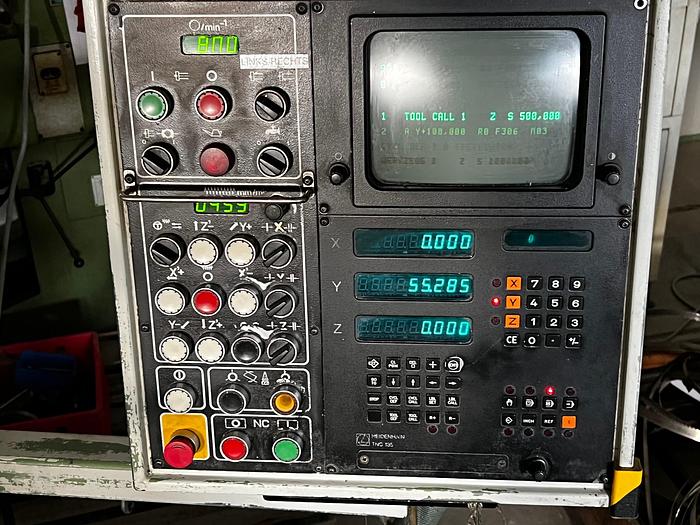

tool milling machine Hermle UWF 801 Control HEIDENHAIN TNC 131 Year of construction 1988 Technical details Clamping area 800 x 220 mm Longest X axis 500 mm Transverse Y axis 430 mm Vertical Z axis 400 mm Feed range X,Y 4-1600 mm/min Feed range Z 4-1000 mm/min Rapid traverse X,Y 1.6 m/min Rapid traverse Z 1 m/min Number of spindle speeds 18 Speed range 50-2500 rpm power of the spindle motor 3kW Dimensions LxWxH 2.3 x 2.3 x 1.8 m Weight approx. 1.5 tons

Specifications

Year1988
ConditionUsed
Stock Number2200150
