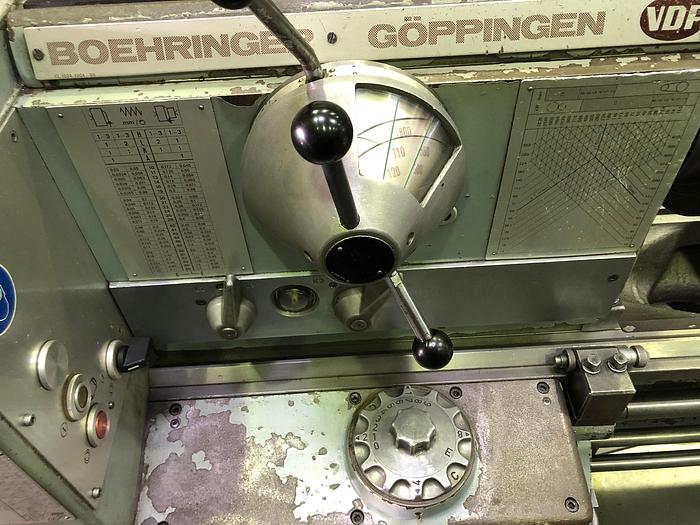

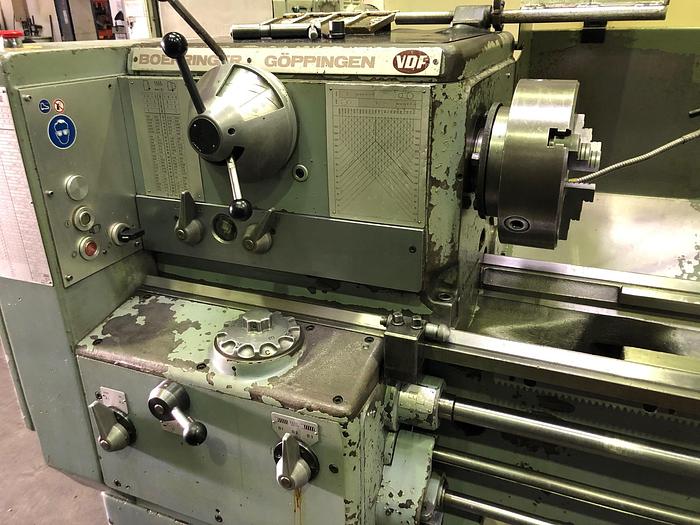

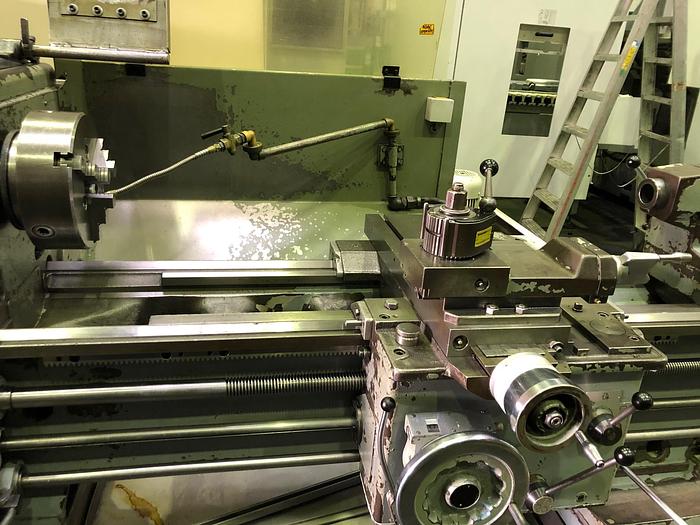

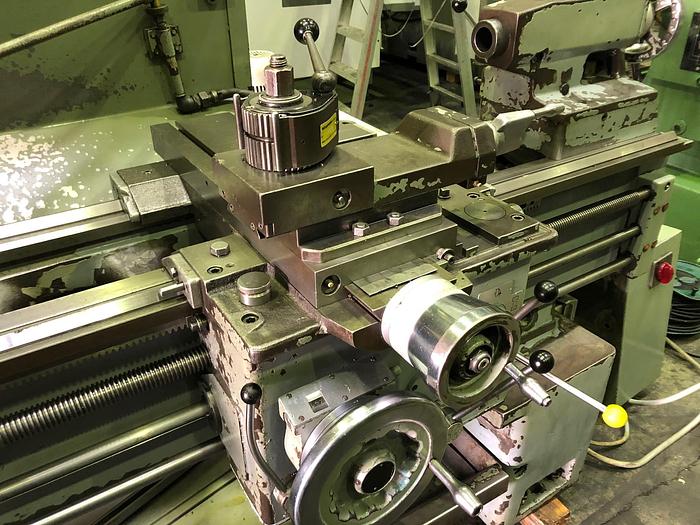

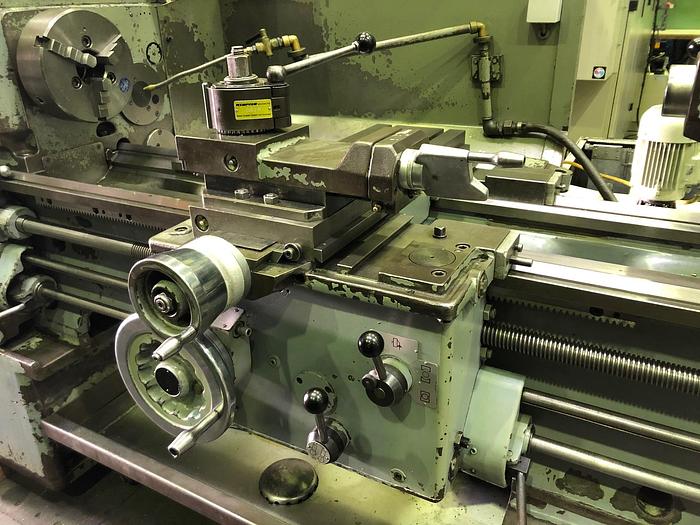

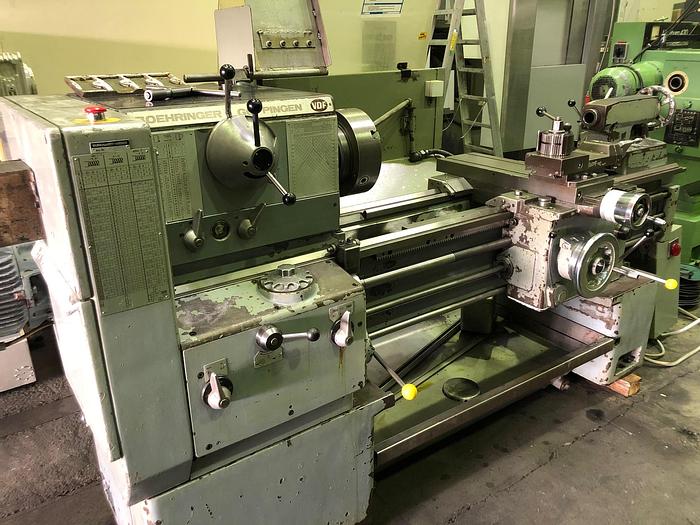

1973 Guide & traction spindle lathe BOEHRINGER VDF 48D
Sold
1973 Guide & traction spindle lathe BOEHRINGER VDF 48D
Schwäbisch Gmünd, Germany
Description
Lead & pull spindle lathe
BOEHRINGER VDF 48D
Built in 1973
Tip height: 232 mm
Distance between centers: 1000 mm
Circulation Ø over bed: 485 mm
Circulation Ø over cross slide: 270 mm
Main spindle bore: 62 mm
Brad: MK5
Speed: 35.5 rpm - 1800 rpm
Feed: 0.045 - 0.71 mm / rev
Tailstock:
Quill stroke: 180 mm
Quill Ø: 70 mm
Mounting cone DIN 228: MK5
Length x width x height: 1900 mm x 1050 mm x 1300 mm
Specifications
Manufacturer | Leit & Zugspindel Drehmaschine BOEHRINGER VDF 48D |
Year | 1973 |
Condition | Used |
Stock Number | 1004761 |
