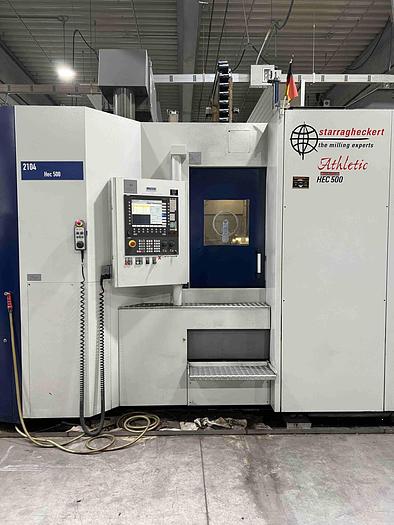

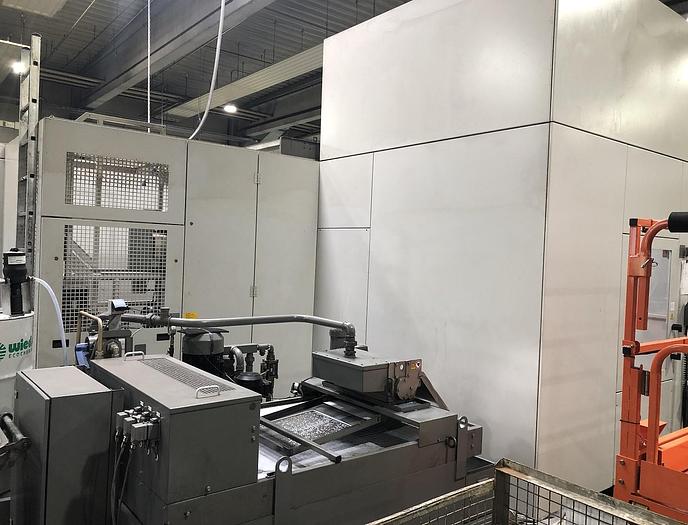

Horizontal machining center STARRAG HECKERT HEC 500 Athletic
No longer available
Horizontal machining center STARRAG HECKERT HEC 500 Athletic
Schwäbisch Gmünd, Germany
Description
Horizontal machining center
STARRAG HECKERT HEC 500 Athletic
Year of construction 2005

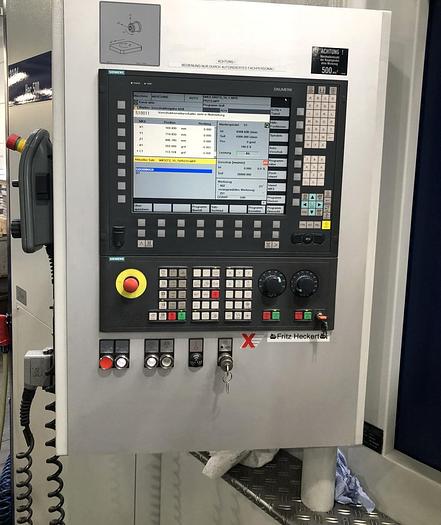

CNC control SIEMENS 840 D
Technical details
x-travel 1000 mm
y-travel 800 mm
z-travel 1000 mm
B axis: 360° (0.001 degrees)

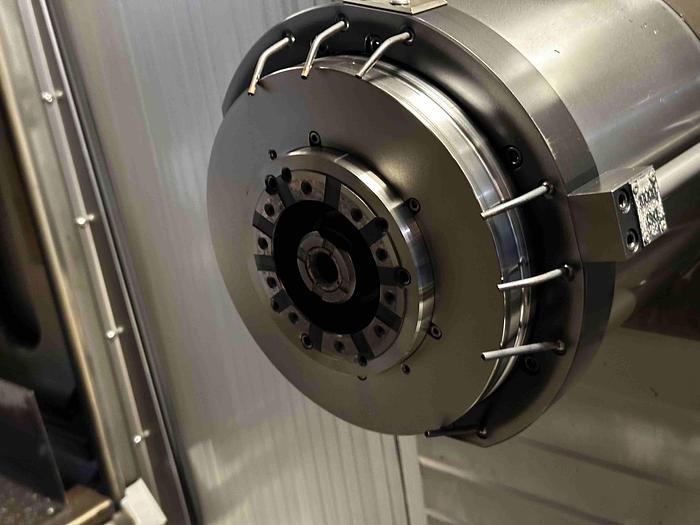

Max. spindle speed: 10,000 min/-1 (2x gear stages)
Drive power: main spindle 38 kW
Max. torque: 900 Nm
Tool holder: HSK 100 DIN 69893-1

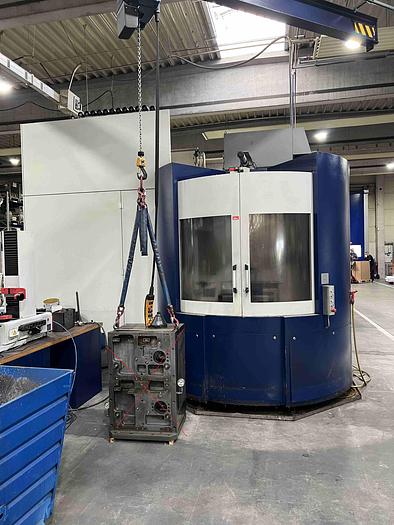

Pallets: 2 (500 x 630 mm)

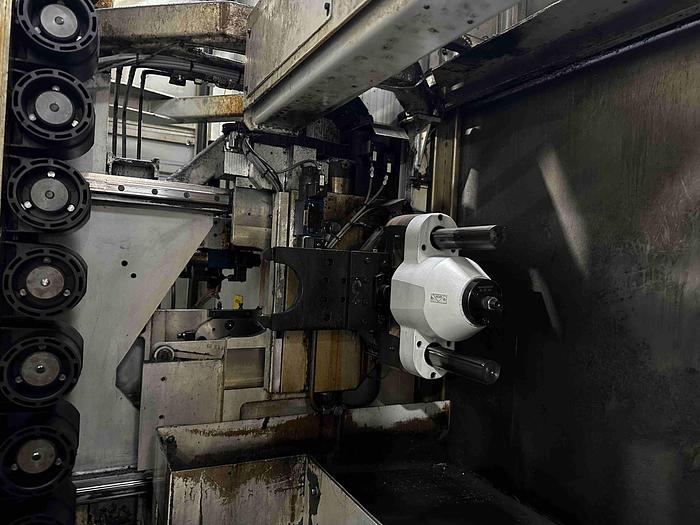

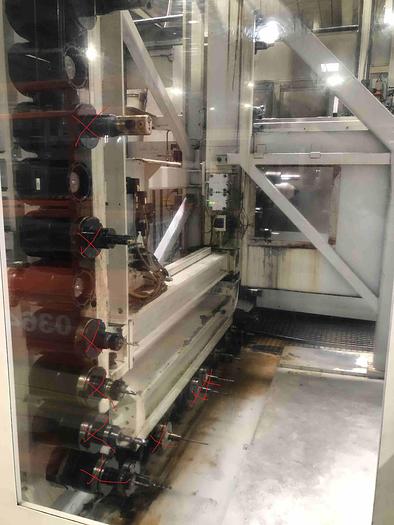

Number of tool places: 60/80 pos.
Max. tool data: length 800 mm / diameter 125 mm / weight 35 kg
Rapid traverse: 60 m/min
Weight: Approx. 26,000 kg
Operating / automatic hours read: 1,700 h / approx. 29,900 / spindle hours 1,400 h (according to service log 12/20/22
total operating hours approx. 66,000 hours and a total of 11,000 spindle hours)
Accessories: 2x pallets, chip conveyor, coolant system with IKZ and documentation
Specifications
Year | 2005 |
Condition | Used |
