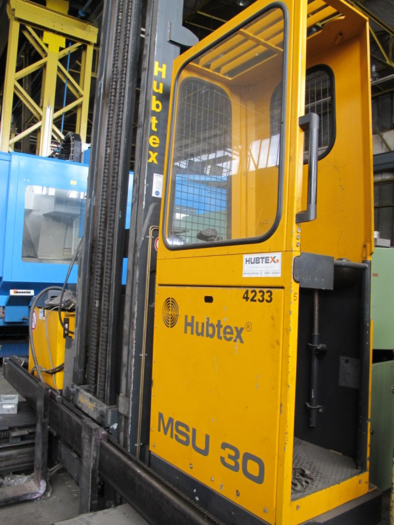

Sideloader HUBTEX MSU 30 (2000/1)

Sold

Sideloader HUBTEX MSU 30 (2000/1)

Location:Schwäbisch Gmünd, Germany

Description

Sideloader HUBTEX MSU 30 (2000/1) Year of construction 2001 Load capacity 3000 kg with Lsp 550 to lifting height h3 5500 mm 2500 kg with Lsp 550 to lifting height h3 6800 mm 2240 kg at Lsp 550 to lifting height h3 7100 mm Hubgeruest 2 steps Hubgeruest Retracted height h1 4463 mm Free lift h2 560 mm Lifting height h3 7100 mm extended high h4 7915 mm Fork carriage height vh 815 mm Geraetabmessungen Total length 3500 mm Frame length 3280 mm Usable width 1100 mm Frame width 1930 mm Mastvirschub 1250 mm Radar height 1340 mm Ground clearance 75 mm Turning radius 1995 mm standing cabin Lee weight without battery 6785 kg Drive power 2x2 3.5 kW Working width AST 2505 mm incl. 150 mm load side Minimum distance per side Working width AST 2505 mm incl. 425 mm ruecklastig Minimum distance per side 1003994

Specifications

ConditionUsed

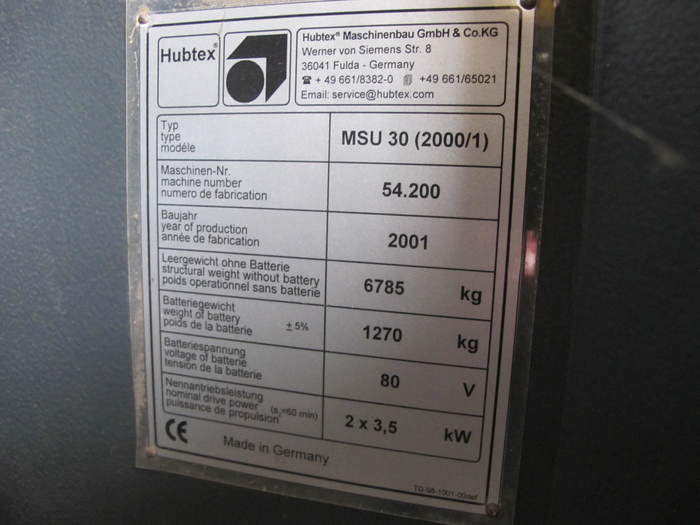

Serial Number54.200
Stock Number1003994
