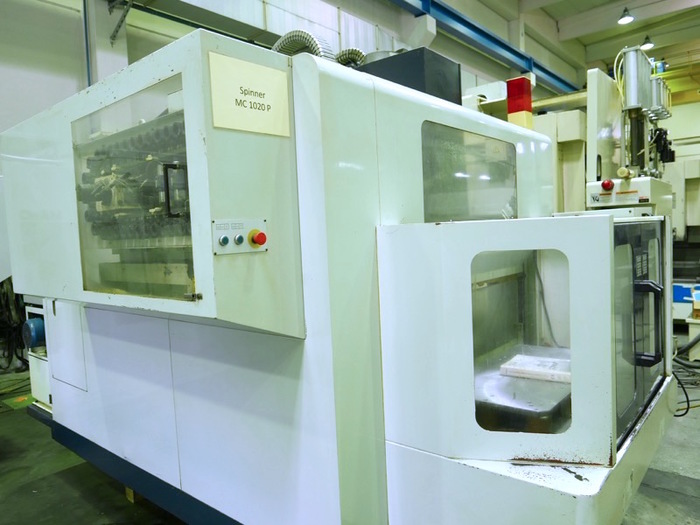

CNC machining center Spinner MC 1020

Sold

CNC machining center Spinner MC 1020

Location:Schwäbisch Gmünd, Germany

Description

CNC machining center Spinner MC 1020 Year of construction 1999 Control Siemens Axes: maximum travel X-axis mm 1020 maximum travel Y-axis mm 580 maximum travel Z-axis mm 560 Clamping table: Table size mm 1500x600 Workpiece: max. weight kg 2000 Spindle: Max. Spindle speed tool holder Bearing diameter in front Torque spindle (approx. 30 min) feed: Feed force: X-axis daN 817 Feed force: Y-axis daN 817 Feed force: Z-axis daN 817 tool changer: Number of tools 40 Max. Tool diameter (full assignment) mm 77 max tool diameter (additional spaces free) mm 130 Max. Tool length mm 250 Max. Tool weight kg 7 Change time approx. 2.5 sec Dimensions / Weight: LxWxH m 2.5x3.2x2.9 Installation area m2 23.2 Total weight kg 9000 1004276

Specifications

ConditionUsed
Serial NumberAC 0102
Stock Number1004276
