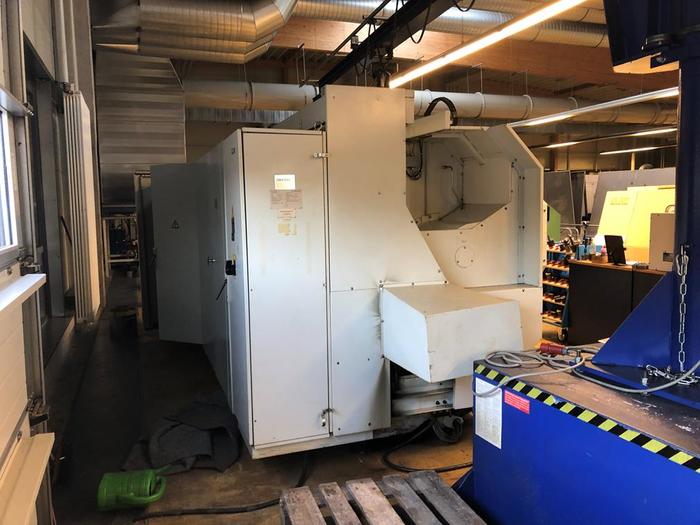

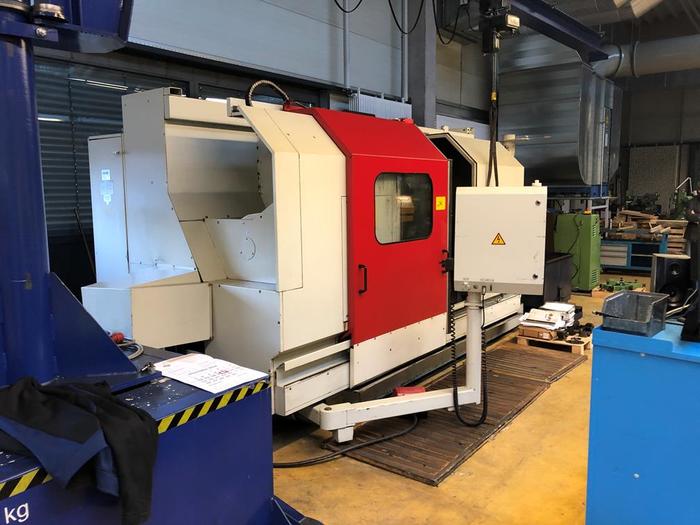

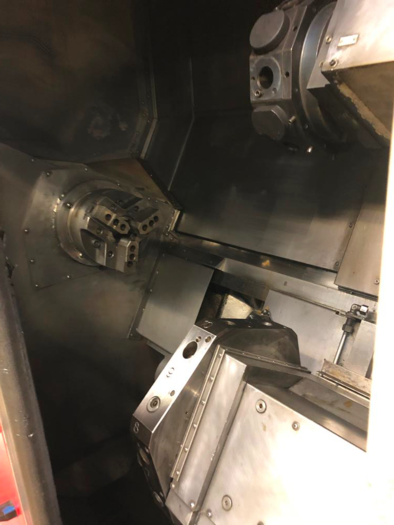

1998 MAGDEBURG HEID M 300 U-4

CNC lathe HEID MAGDEBURG M 300 U-4 CNC control 840 C Workspace: Max. Circulation dia. over bed 540 mm Max. Circulation dia. Continuous cross slide 410 mm max workpiece weight approx. 300 kg flying Working spindle: Spindle head according to DIN 55026 Size A8 Spindle diam. vord. Bearing 140 mm Max. Torque 940 Nm Spindle bore 97 mm Max. Feed diam. 315 mm Number of bed sleds: 2 Laengshub 955 Number of cross slides: 2 Plan stroke 300 Feed speed: Longitudinal slide 15000 mm / min Cross slide 10000 mm / min Spindle speed in 1 / min Stepless from 31.5 to 3150 rpm Weight approx. 8500 kg Flaechenbedarf: L: 4.0 m B: 2.5 m H: 2.5 m
