1980 DECKEL FP1 AKTIV - DIGITAL

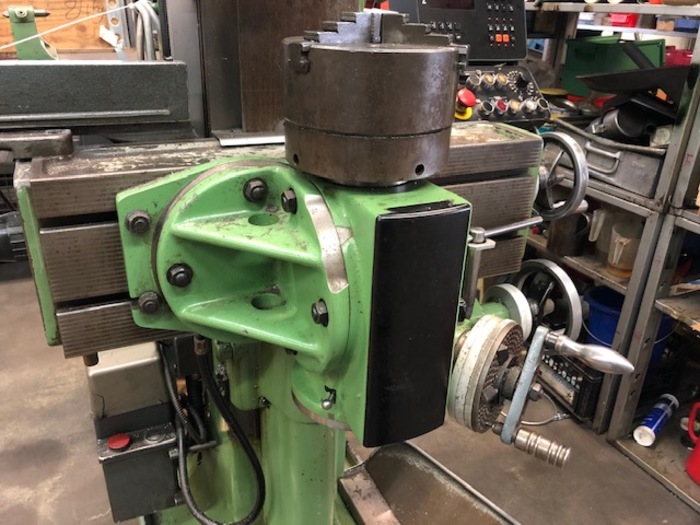

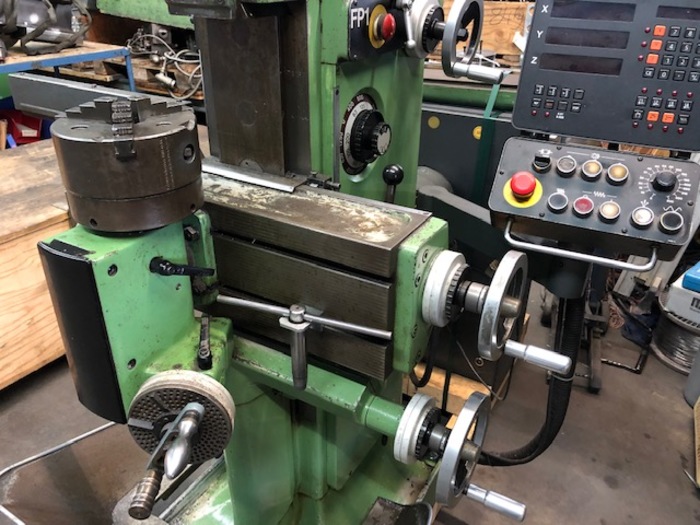

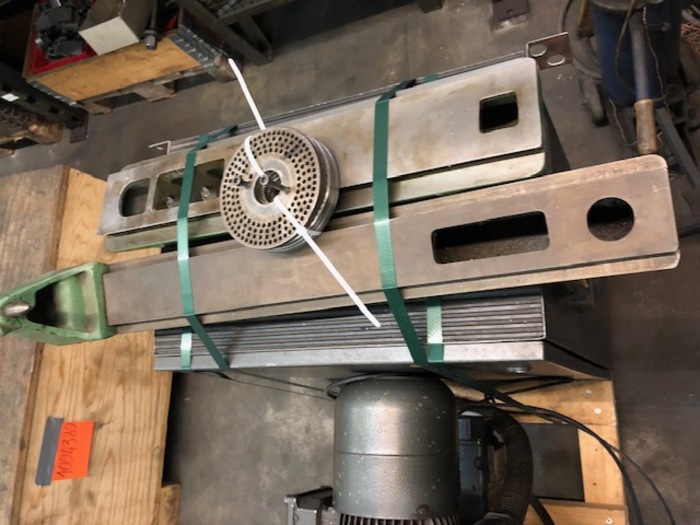

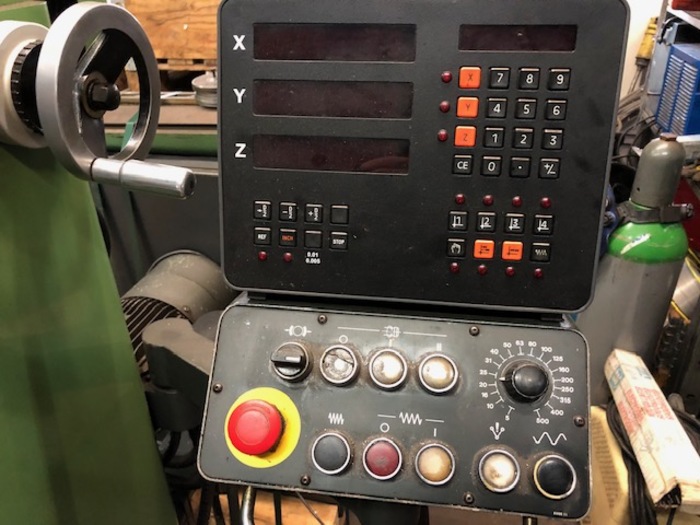

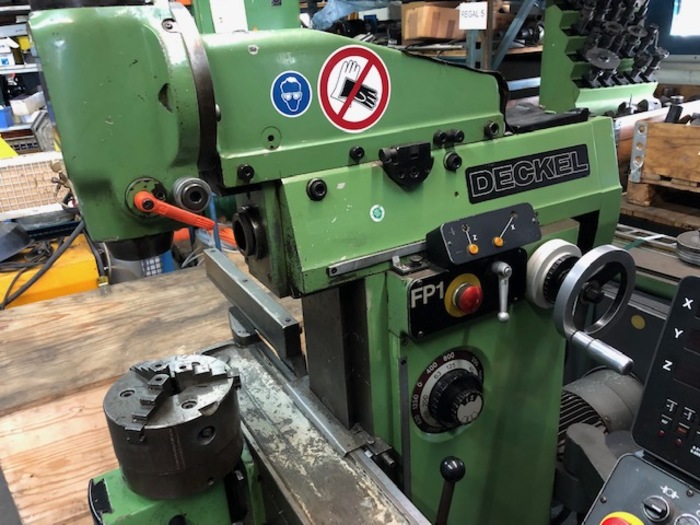

Milling Machine DECKEL FP1 ACTIVE - DIGITAL Year of construction 1980 Digital display: 3 - axis digital display (Heidenhain TNC 113) Travel: X - axis: approx. 300 mm Y axis: approx. 150 mm Z axis: approx. 340 mm Table mounting surface: dividing attachment Ø200mm Spindle: Speed range: approx. 40 - 2000 rpm Tool holder: ISO 40 Drive power: approx. 1.9 kW Tool clamping: manual Feeds & rapid traverse: in all 3 axes Feed range (stepless): approx. 5 - 500 mm / min Rapid travels: approx. 1.2 m / min EQUIPMENT: • Vertical & Horizontal milling device • angle milling head • Coolant device • Machine documentation
