CNC cycle lathe WEILER E50 - 2000

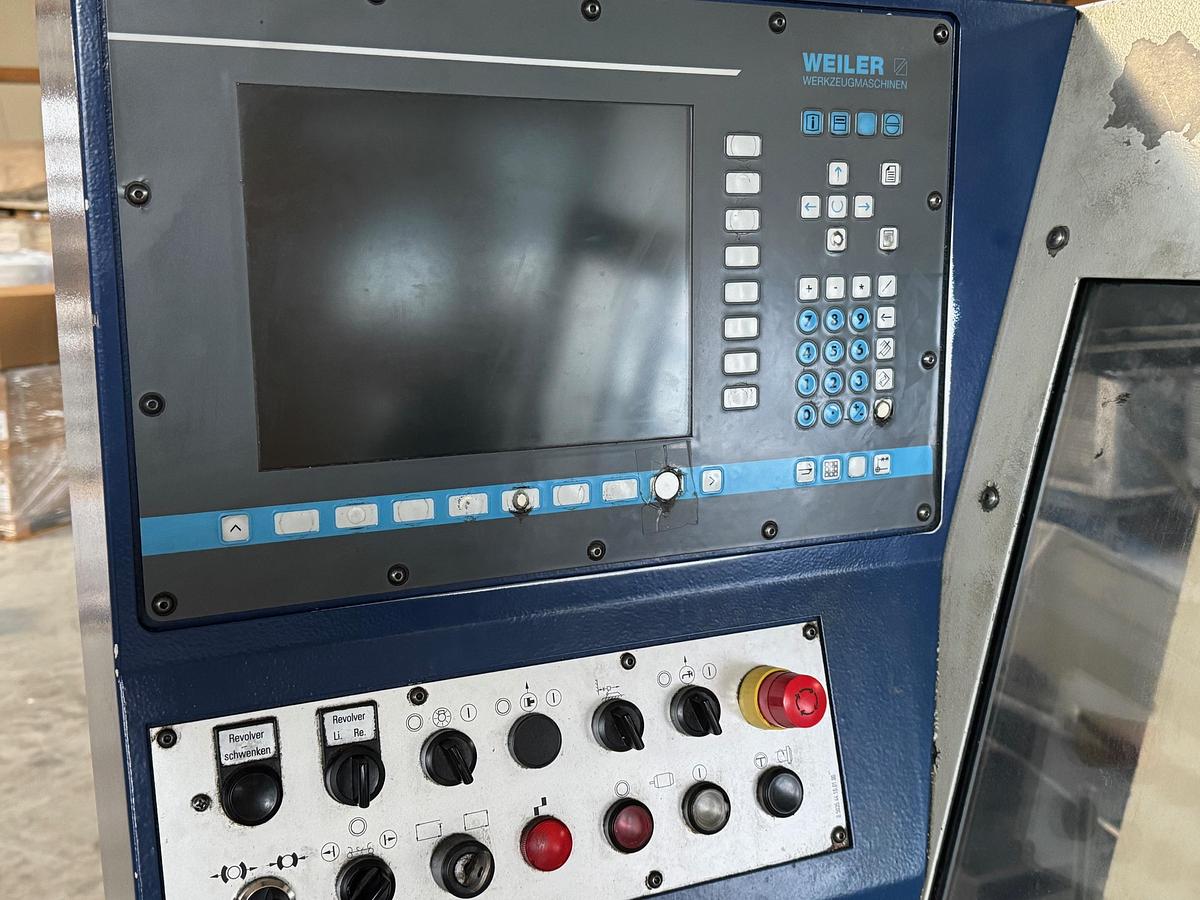

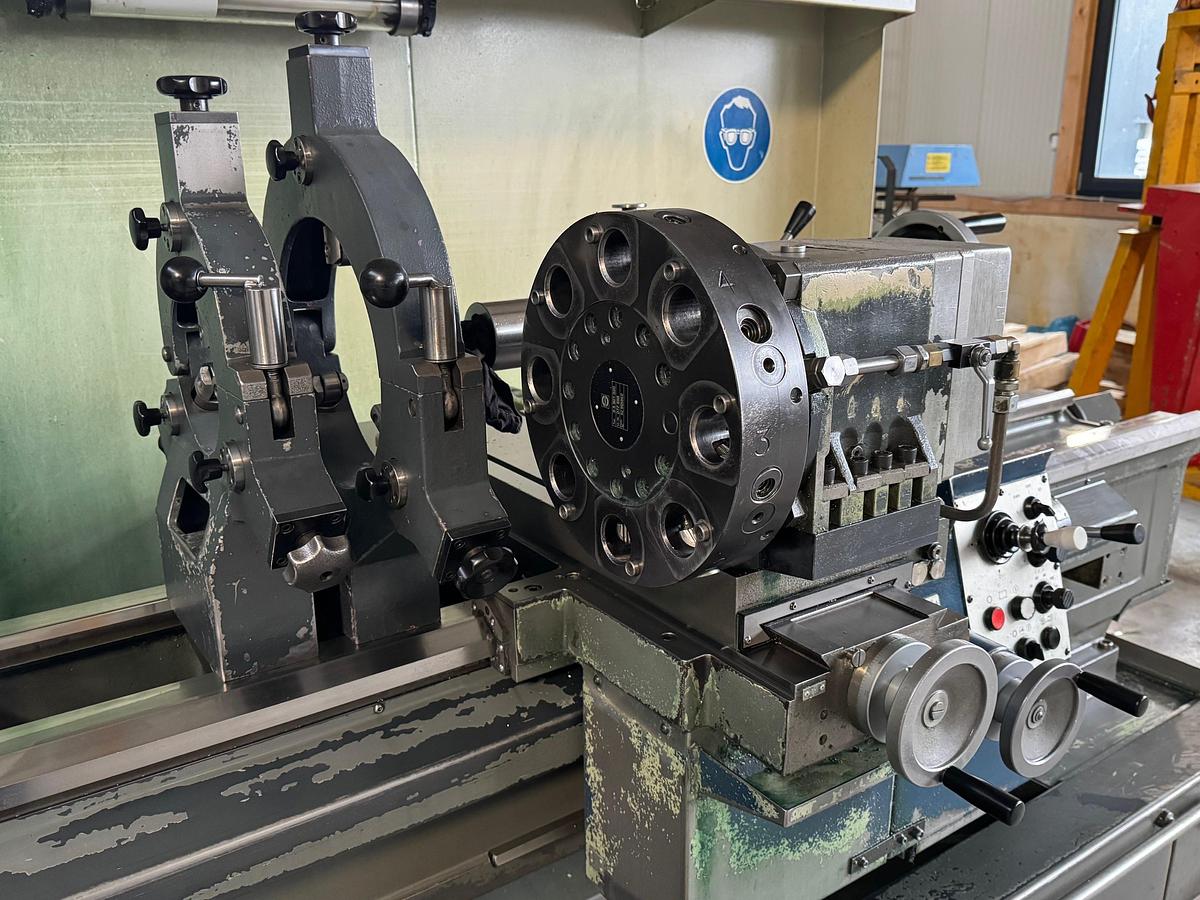

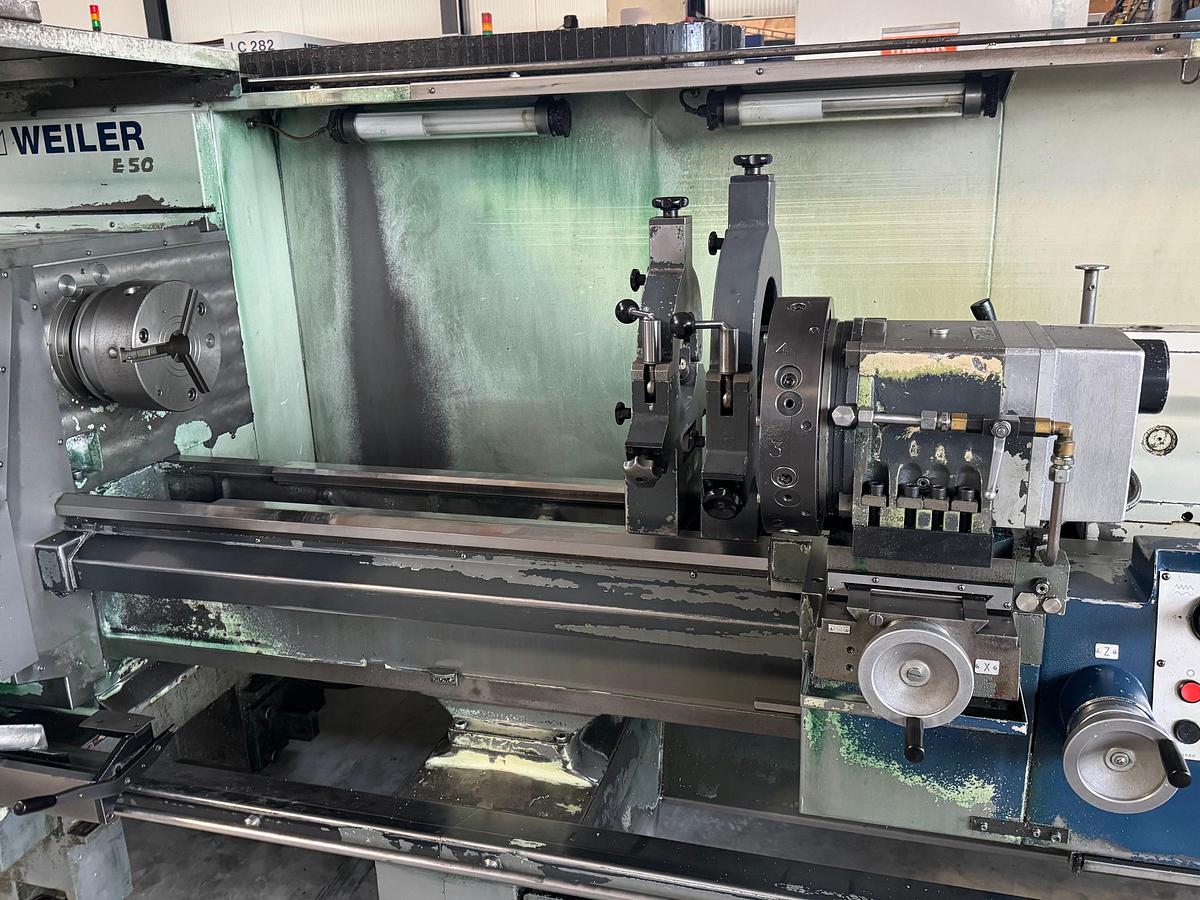

CNC cycle lathe WEILER E50 - 2000 Year of construction: 2002 CNC control WEILER SIEMENS 810D Center distance: 2,000 mm Circumference over bed: 570 mm Circulation diameter via slide gate: 340 mm Tip height: 280 mm Spindle bore: Ø 83 mm (option 128 / 165 mm) Main motor: 20 / 17 kW (60% / 100% ED) Speed range: 1 – 2,500 rpm Maximum torque: 1,300 – 1,600 Nm Tool turret: Disc turret with 8 stations; VDI 40 shank Tailstock: Quill diameter 80 mm, internal taper MK5 Dimensions / weight Machine dimensions: 3,850 mm length × 1,850 mm width × 1,750 mm height Machine weight: 4,200 kg Description: The WEILER E50 is a robust, cycle-controlled/conventional CNC-capable horizontal lathe from the E-series. With With a center distance of up to 2,000 mm and a generous working area (swing diameter over bed ≈ 570 mm), it is suitable for heavy turning operations. and suitable for series production. The machine is solidly built (wide bed, strong spindle) and is equipped with Disc turret (tool turret) supplied with 8-station turret and VDI interfaces.
