CNC flat grinding machine ROSA – LINEA SILVER 16.8 CNC.

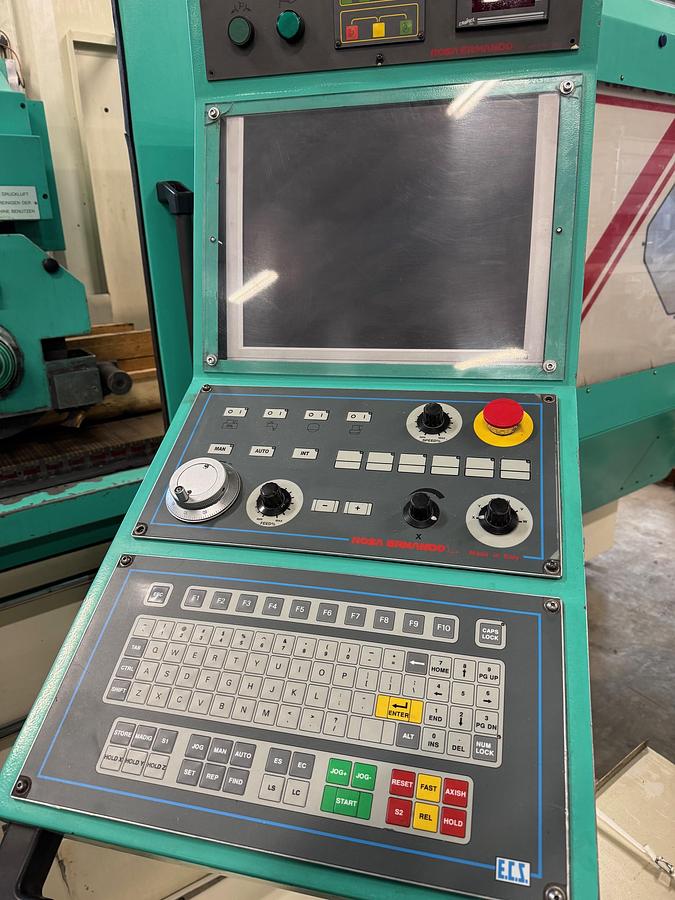

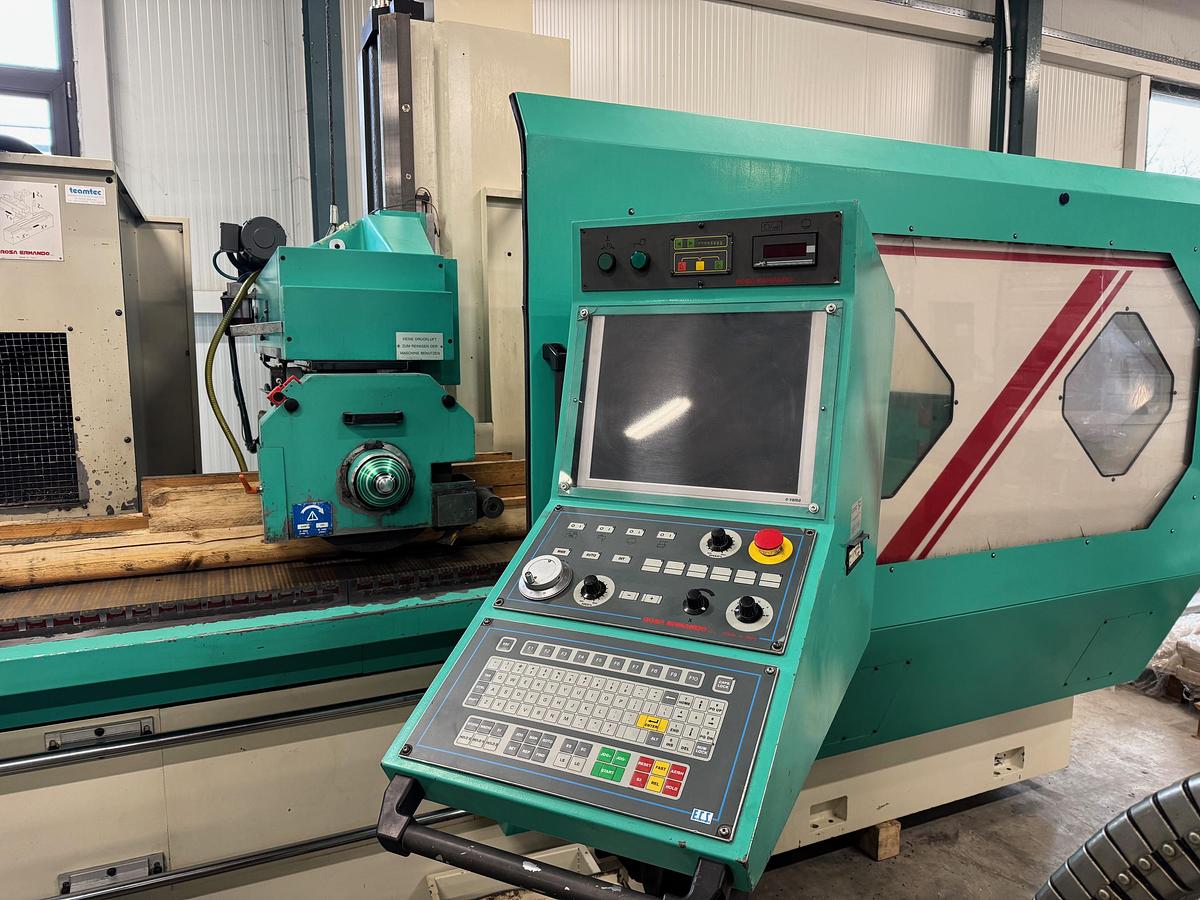

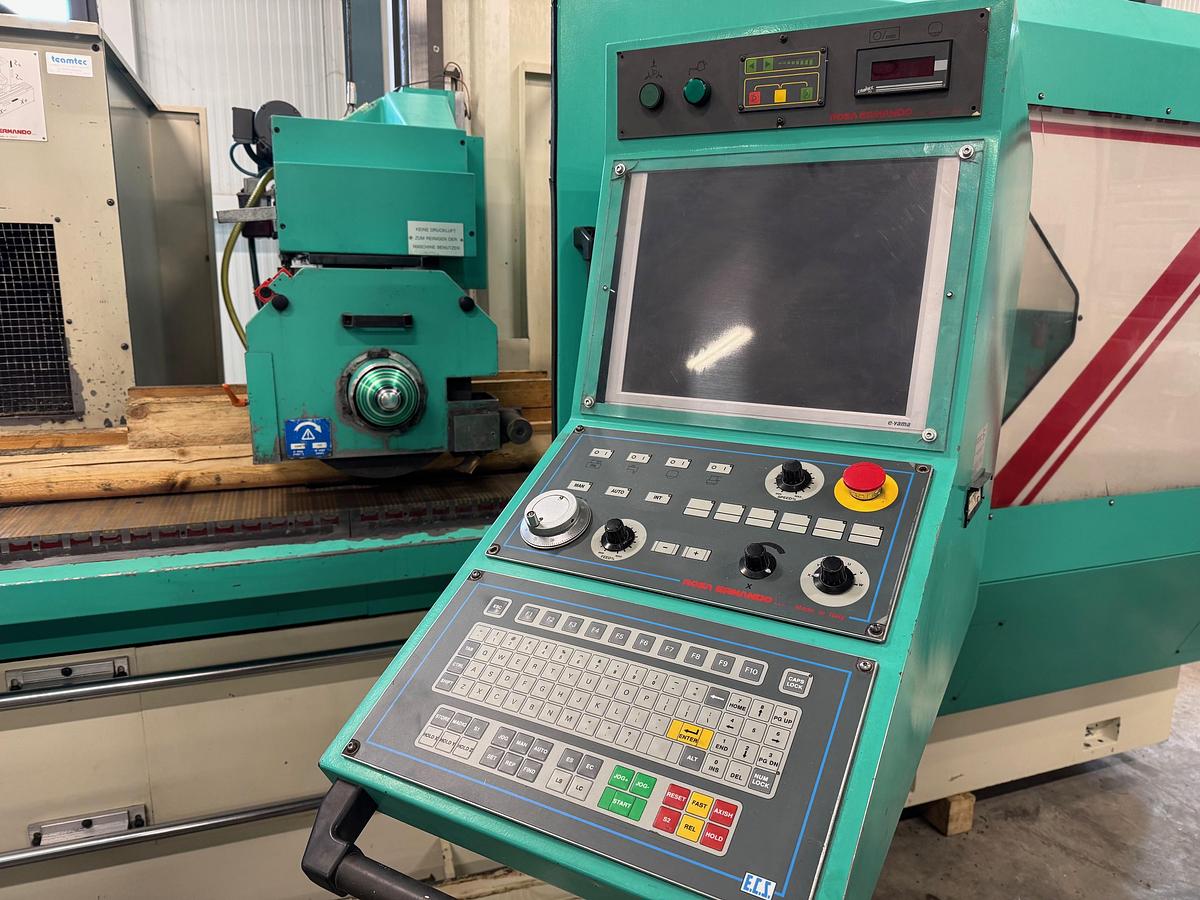

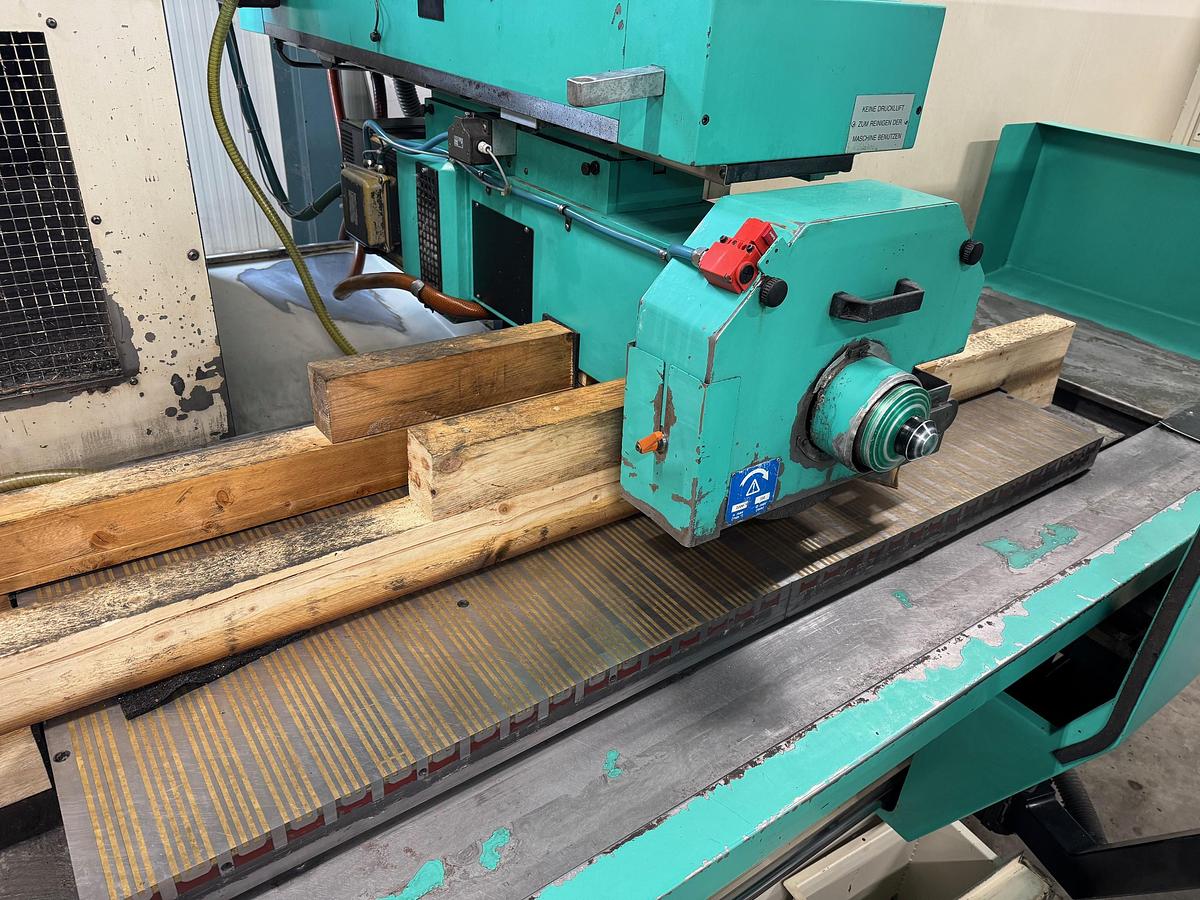

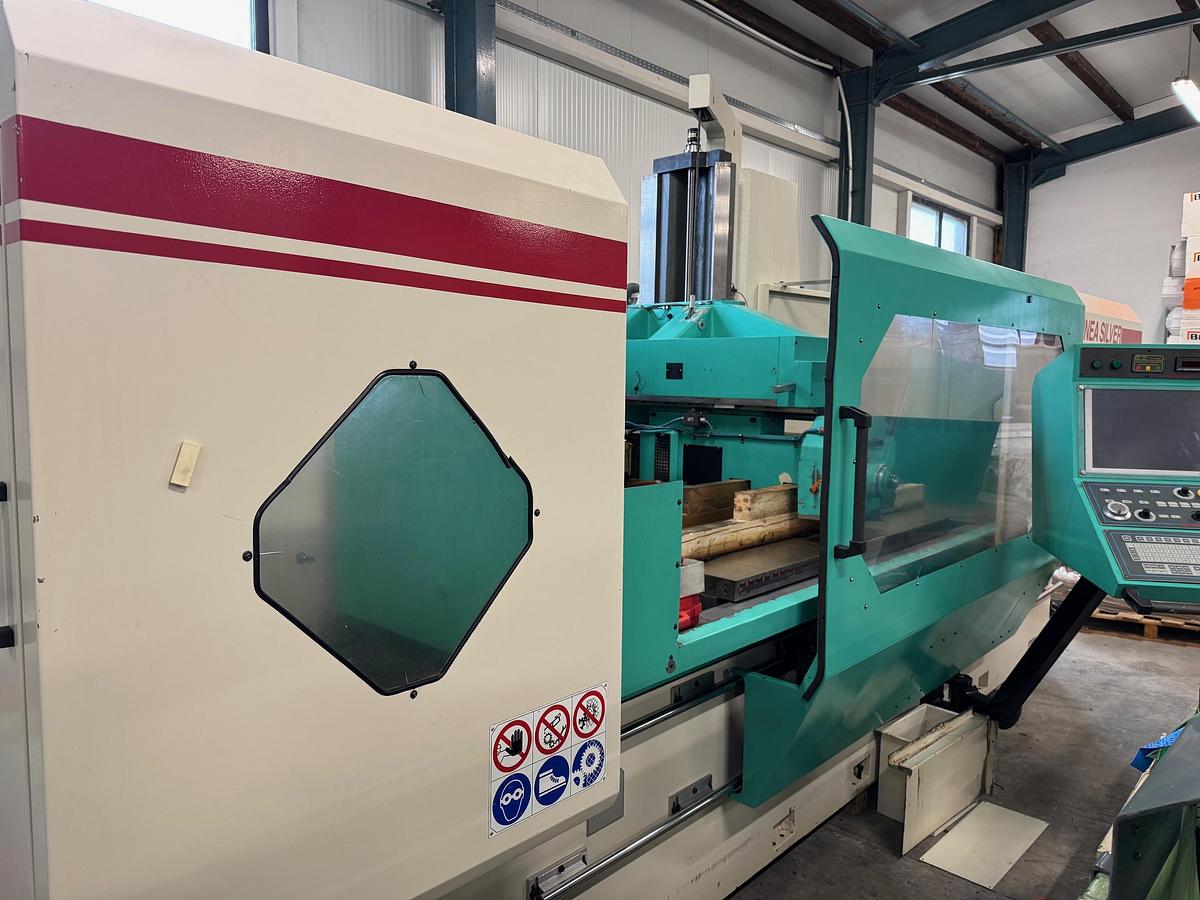

CNC flat grinding machine ROSA – LINEA SILVER 16.8 CNC. Year of manufacture 1997 CNC control ROSA General description The flat grinding machine ROSA LINEA SILVER 16.8 CNC is a robust and precise machine tool for industrial Grinding operation. Thanks to its large working range, powerful drives and CNC control, it is suitable ideal for demanding machining tasks in tool and mold making as well as in mass production. The machine is in good condition and can be viewed under power. ⸻ Technical specifications Process routes & work areas •  Longitudinal travel distance: 2000 mm • Grinding length: 1850 mm • Table top: 1700 mm • Cross travel: 750 mm • Cross-cut length: 830 mm • Sanding height (vertical): 700 mm speeds • Longitudinal speed: up to 39 m/min •  Cross speed: adjustable up to 4 m/min •  Lateral movement (jagged): max. 40 mm Grinding spindle & grinding wheel • Spindle speed of grinding spindle: 1450 rpm •  Grinding wheel size: Ø 450 × 80 × 203 mm •  Motor power of grinding wheel: 14.7 kW Hydraulics & Power • Power hydraulic unit: 9.4 kW •  Permissible table load: 2700 kg Magnetic chuck • Electronic magnetic clamping plate: 1700 × 550 mm Machine • Weight: 11,200 kg • Noise level: 76 dB(A) ⸻ State • The machine is in a functional state. • Inspection under power possible. ⸻ Special features • Large electronic magnetic clamping plate • CNC-controlled motion axes Very high load capacity of the table • stable, heavy-duty industrial design
