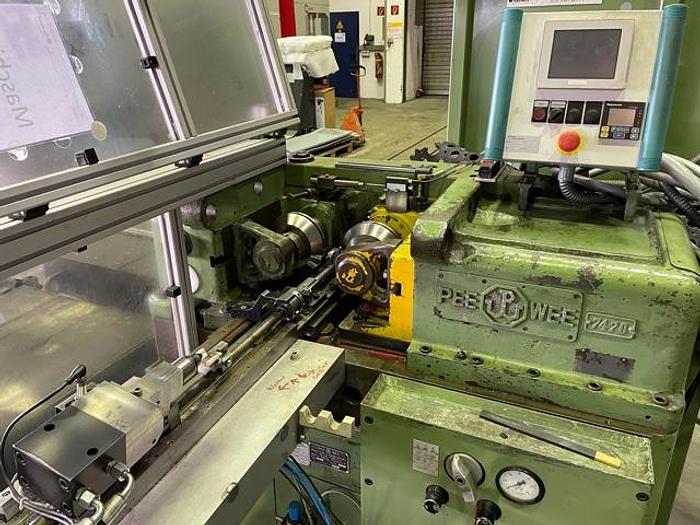

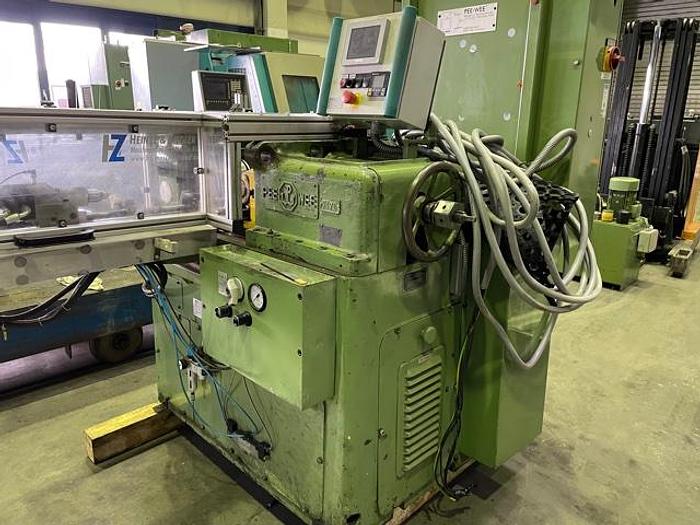

Universal thread rolling machine JUNG PE-WEE IV

Universal thread rolling machine

JUNG PE-WEE IV

Year of manufacture 1956

Overhauled 1999

pressure capacity max. 0,2 - 18to

max. workpiece diameter 75mm

pitch max. 8mm

knurling/serration/ pitch max. 2,5mm

max. thread length for plunge/throughfeed 150/2.000 mm

roller spindle speed stfl. 20 - 90 rpm

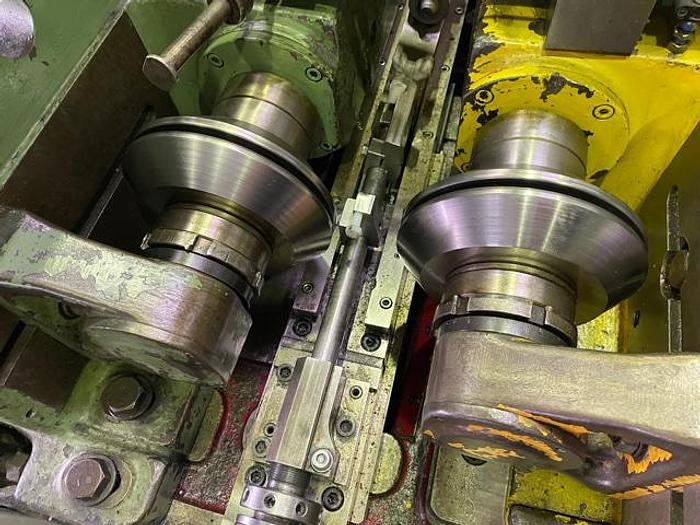

max. roller diameter 200mm

roll bore diameter 69,85mm

roll width max. 160mm

roller stroke adjustable 0 20mm

distance of roller spindles 135 230mm

feed speed 0,5-6mm/sec.

Working time adjustable 0- 60sec.

Pause time/workpiece change time 0,2- 30sec.

spindle drive 6 kW

total drive ca. 8,5 kW - 380 V - 50 Hz

weight approx. 2,5 to
