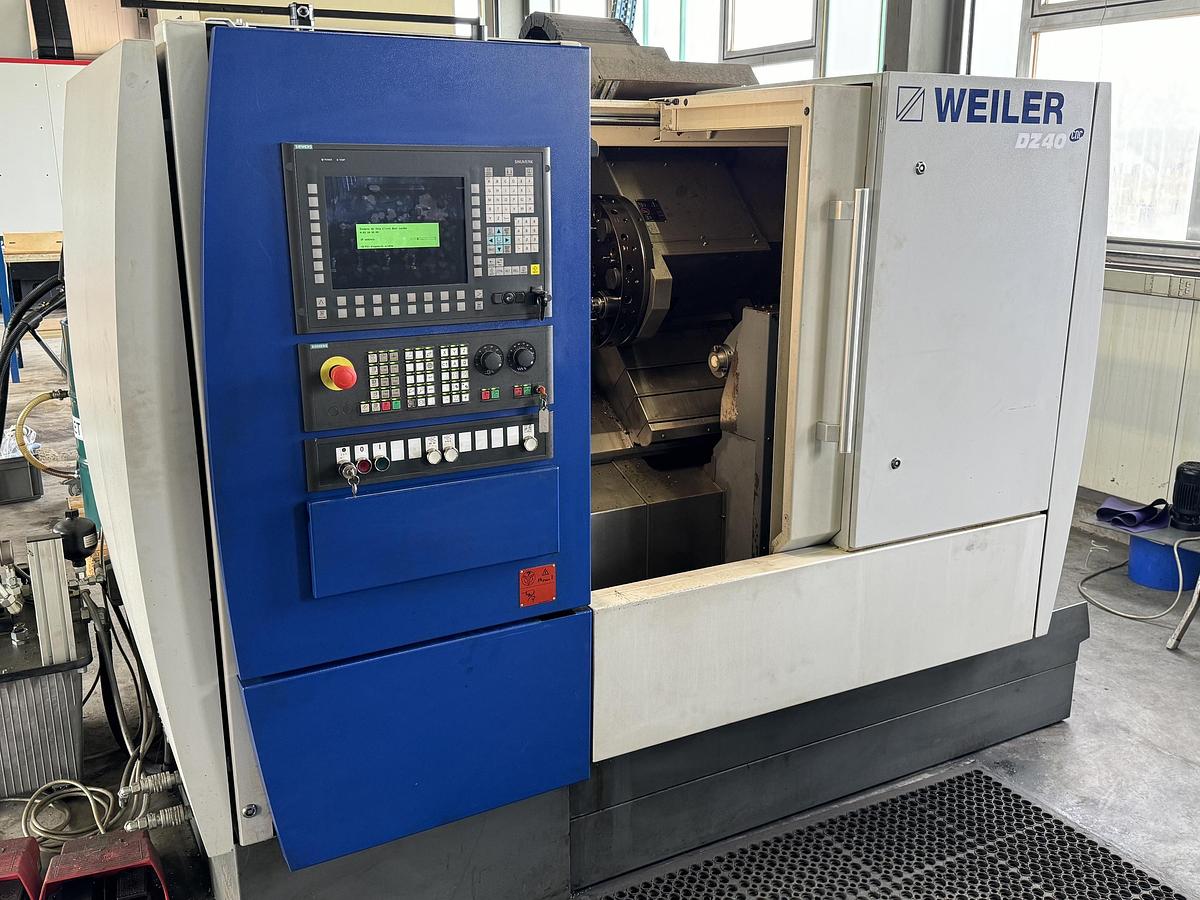

CNC lathe WEILER DZ 40 ARY

CNC lathe

WEILER DZ 40 ARY

Year of manufacture 2008

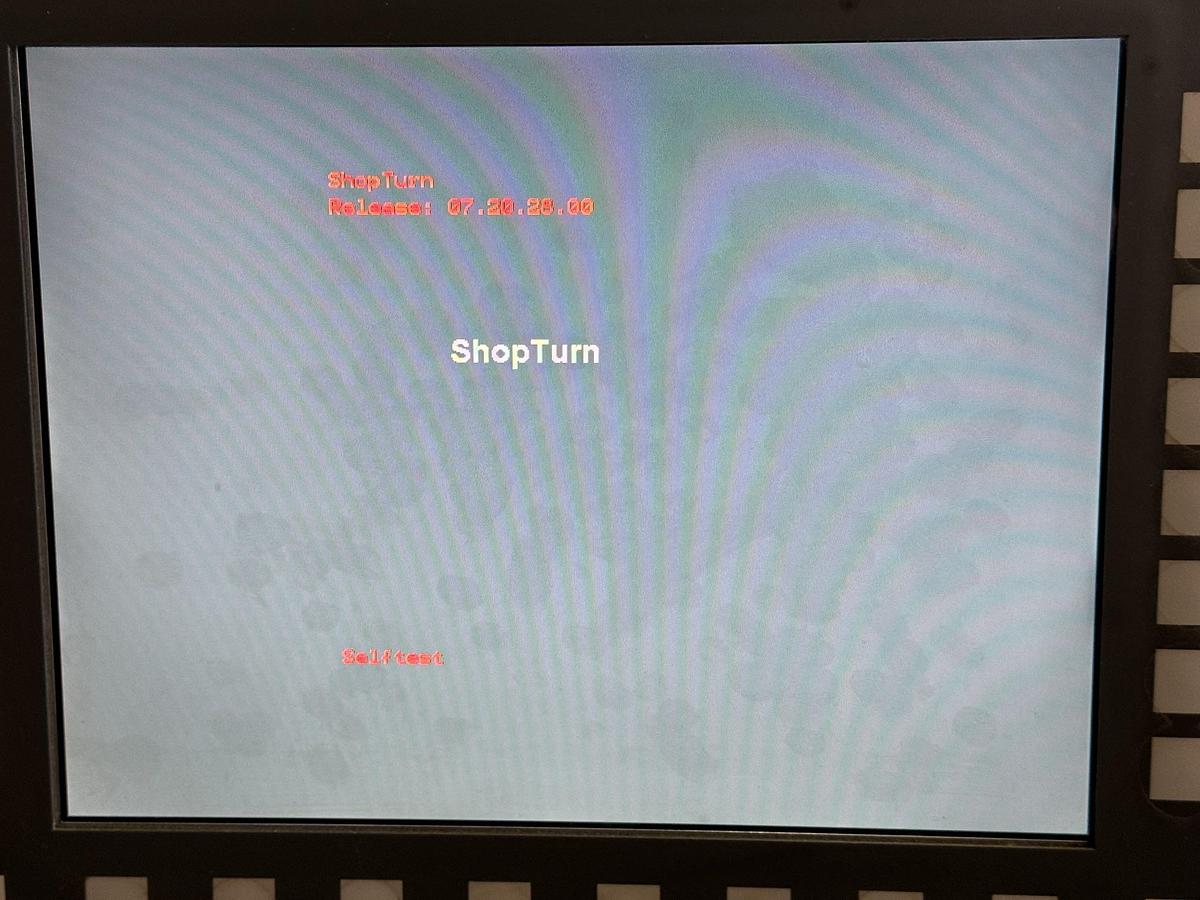

CNC control SIEMENS 840D with SHOPTURN

Technical specifications:

Max. Drehdurchmesser: 180 mm

Max. outer diameter: 560 mm

Travel path X-axis: 200 mm

Travel path Z-axis: 350 mm

Y-axis: ±25 mm

Programmable live center (Q-axis)

Travel path Q-axis: 360 mm

Faceplate rest: MK 4

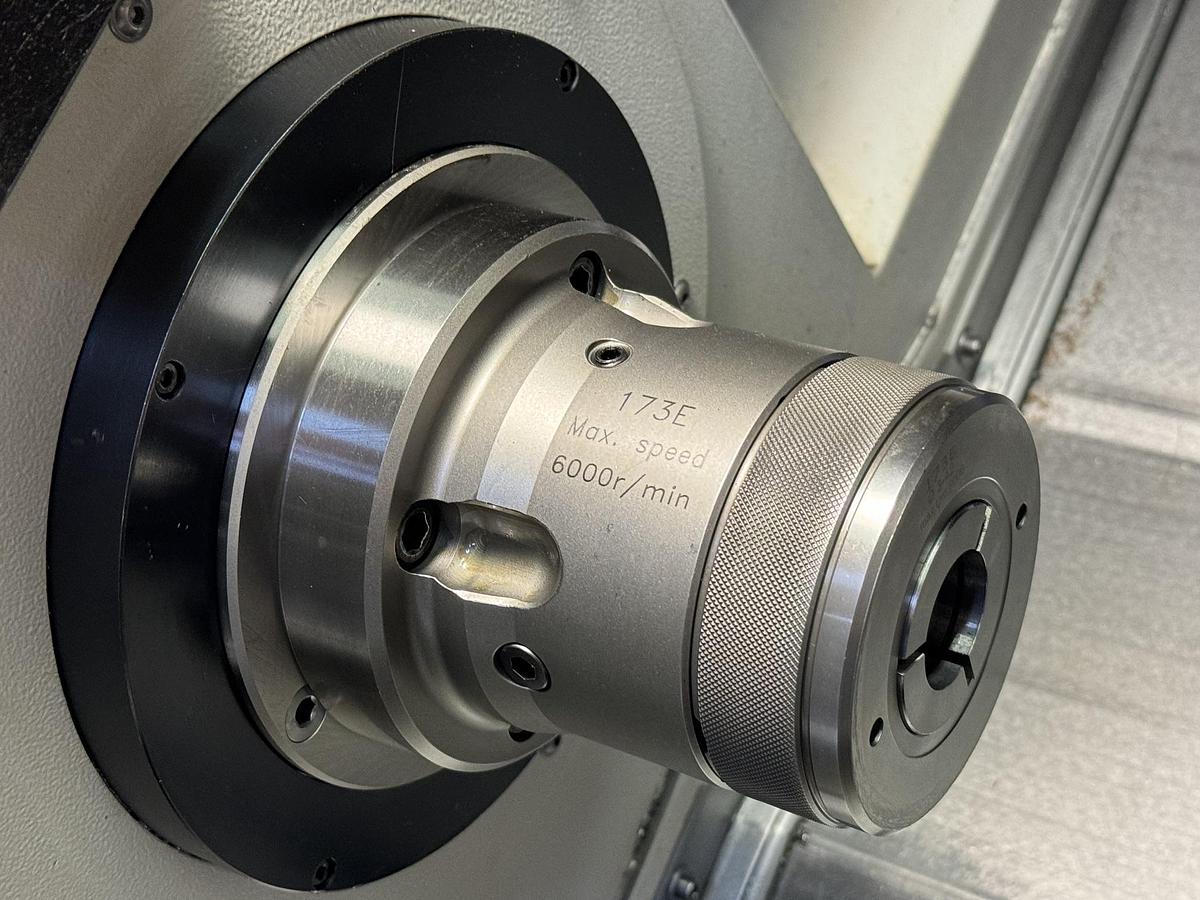

Main spindle – bar passage: 42 mm

Spindle bore: 52 mm

Emergency movements X / Z / Q: 30 / 30 / 20 m/min

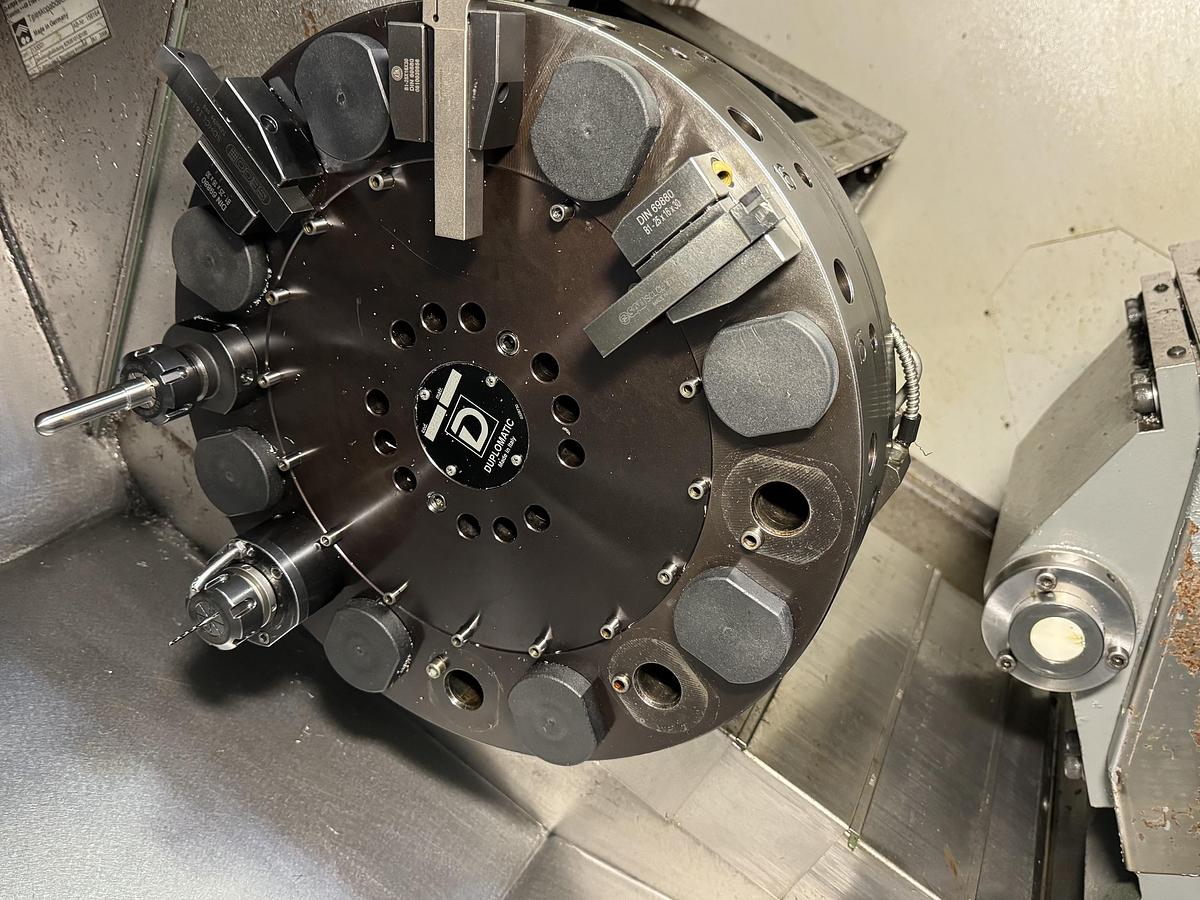

Tool turret: 16-fold, all stations driven

Tool holder: VDI 25

Shank diameter: 25 mm

Speed of driven tools: up to 4,500 rpm

Dimensions (approx.):

Length: 3,300 mm

Width: 2.000 mm

Height: 2,300 mm

Weight: approx. 5,000 kg

Domestic equipments:

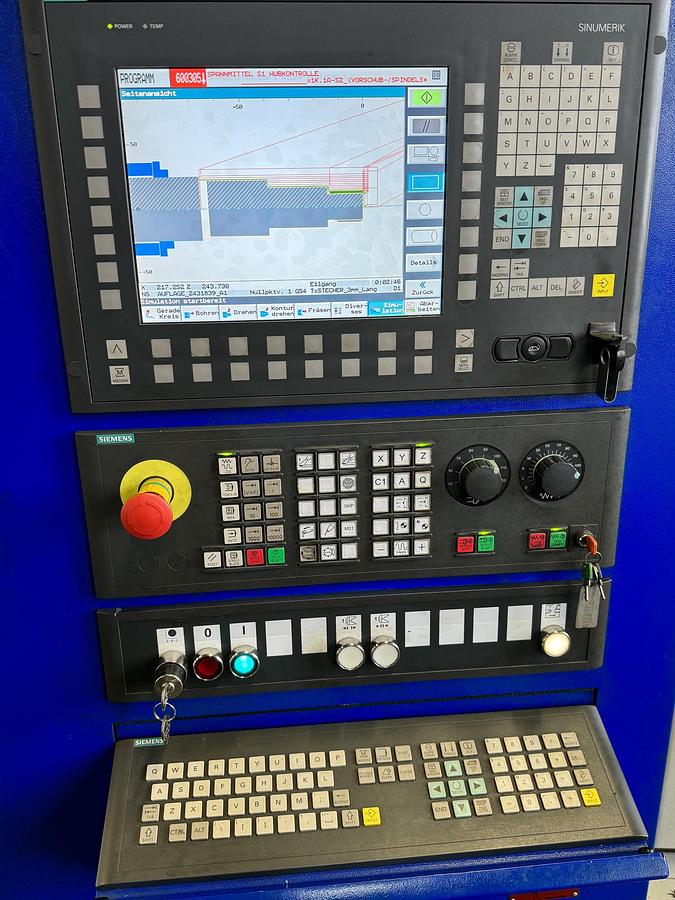

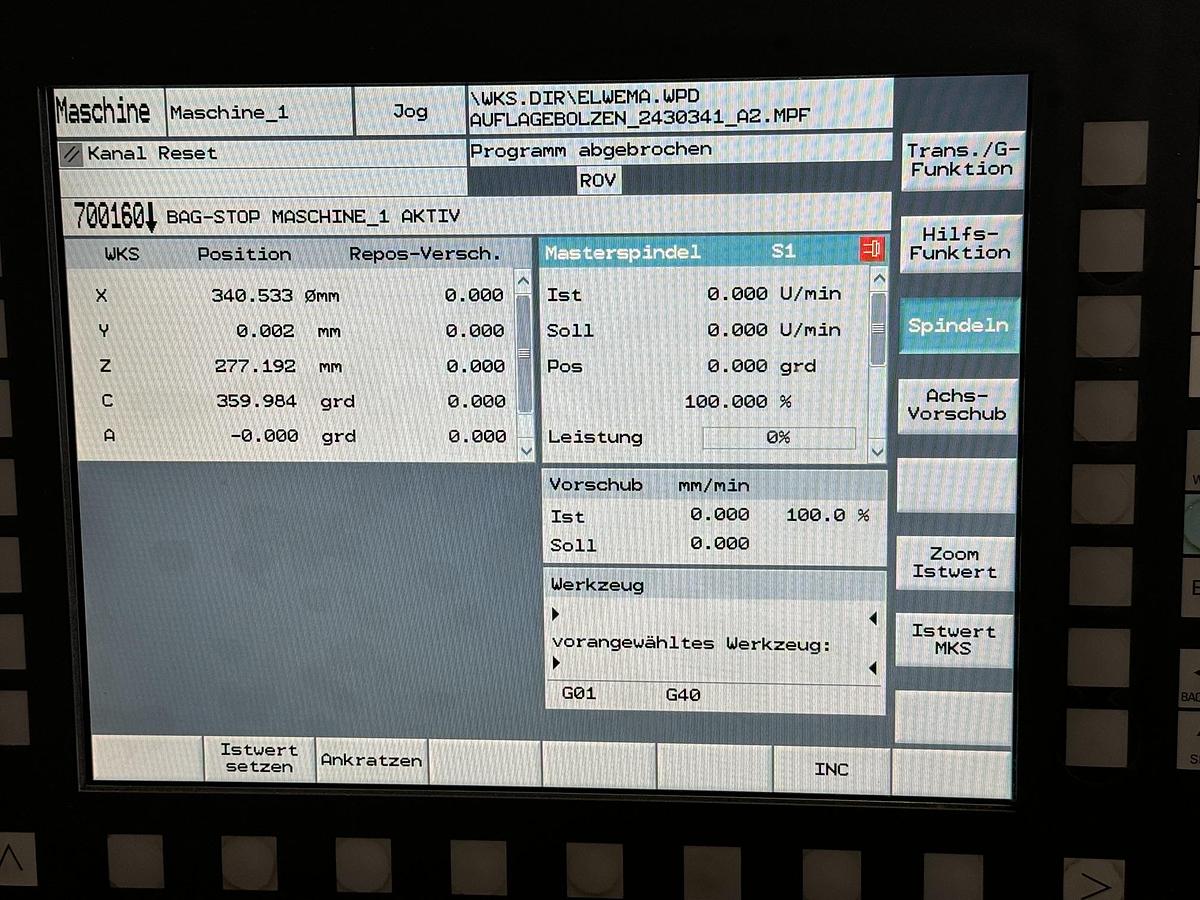

- SIEMENS SINUMERIK 840D CNC control with SHOPTURN

- Y axis

Programmable tailstock

- 16-position tool turret with driven tools

- Part housing

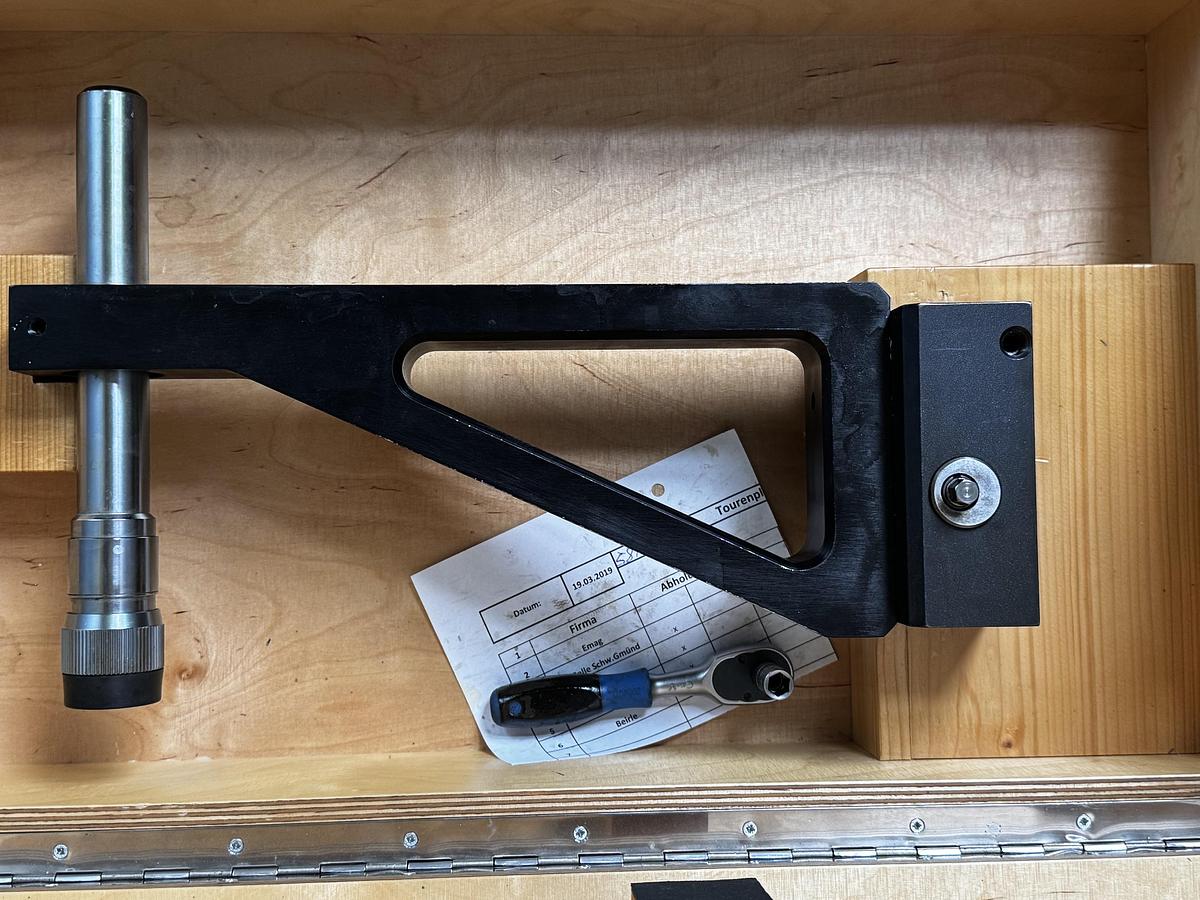

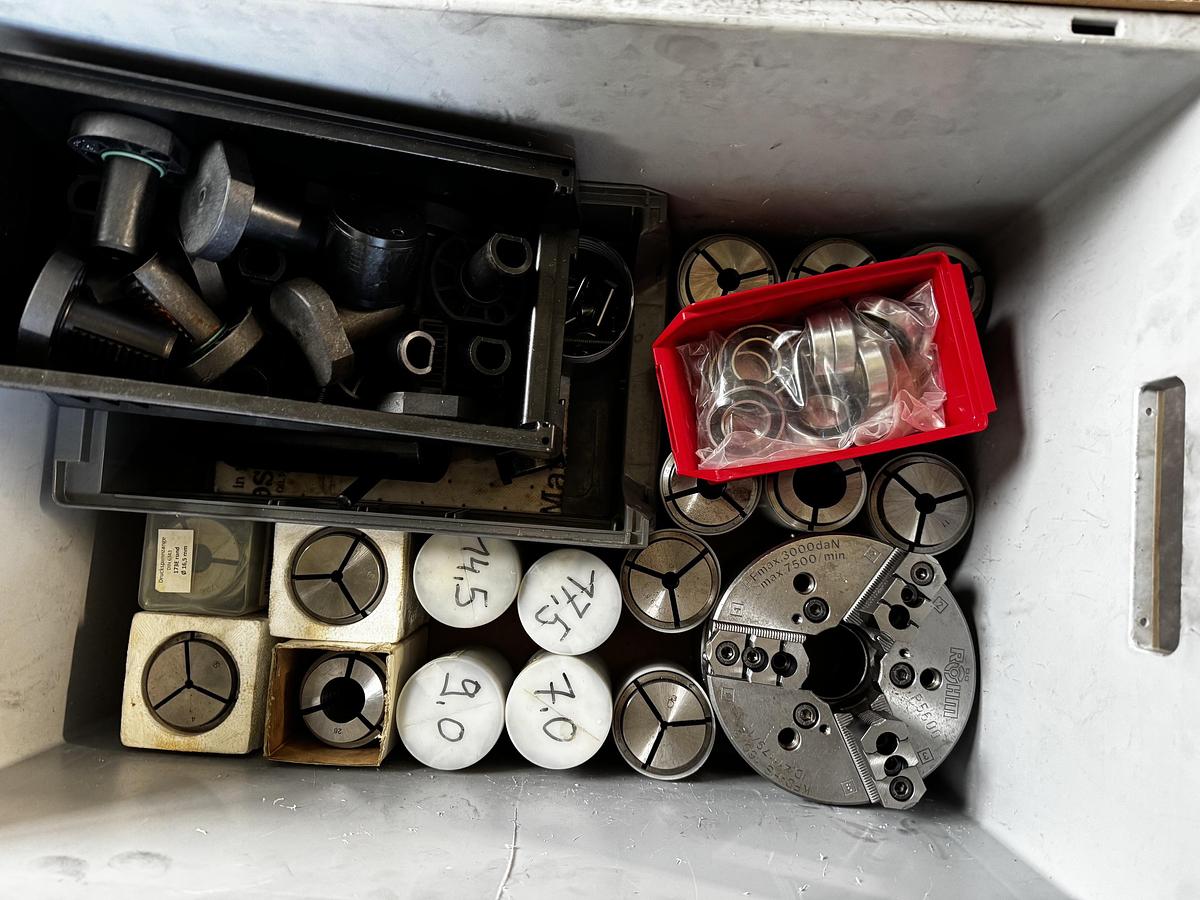

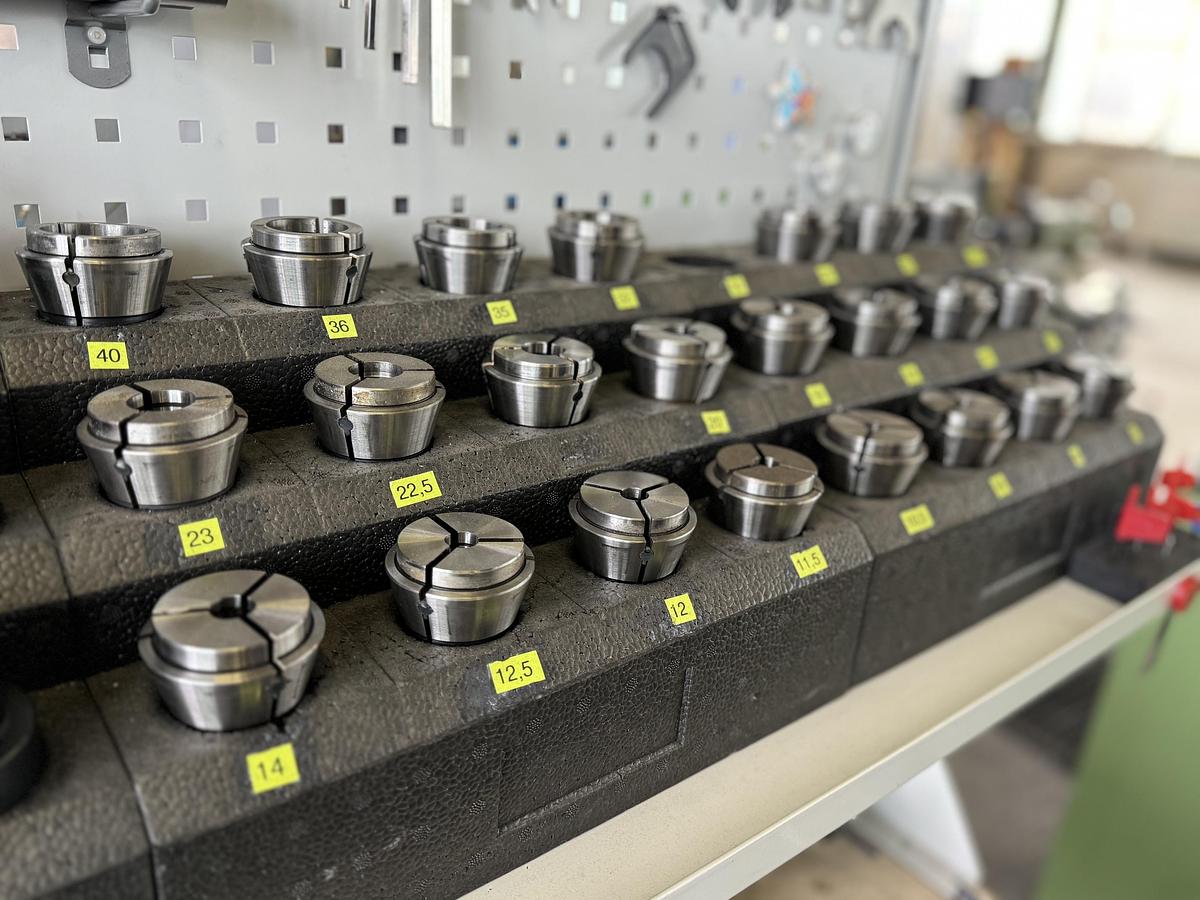

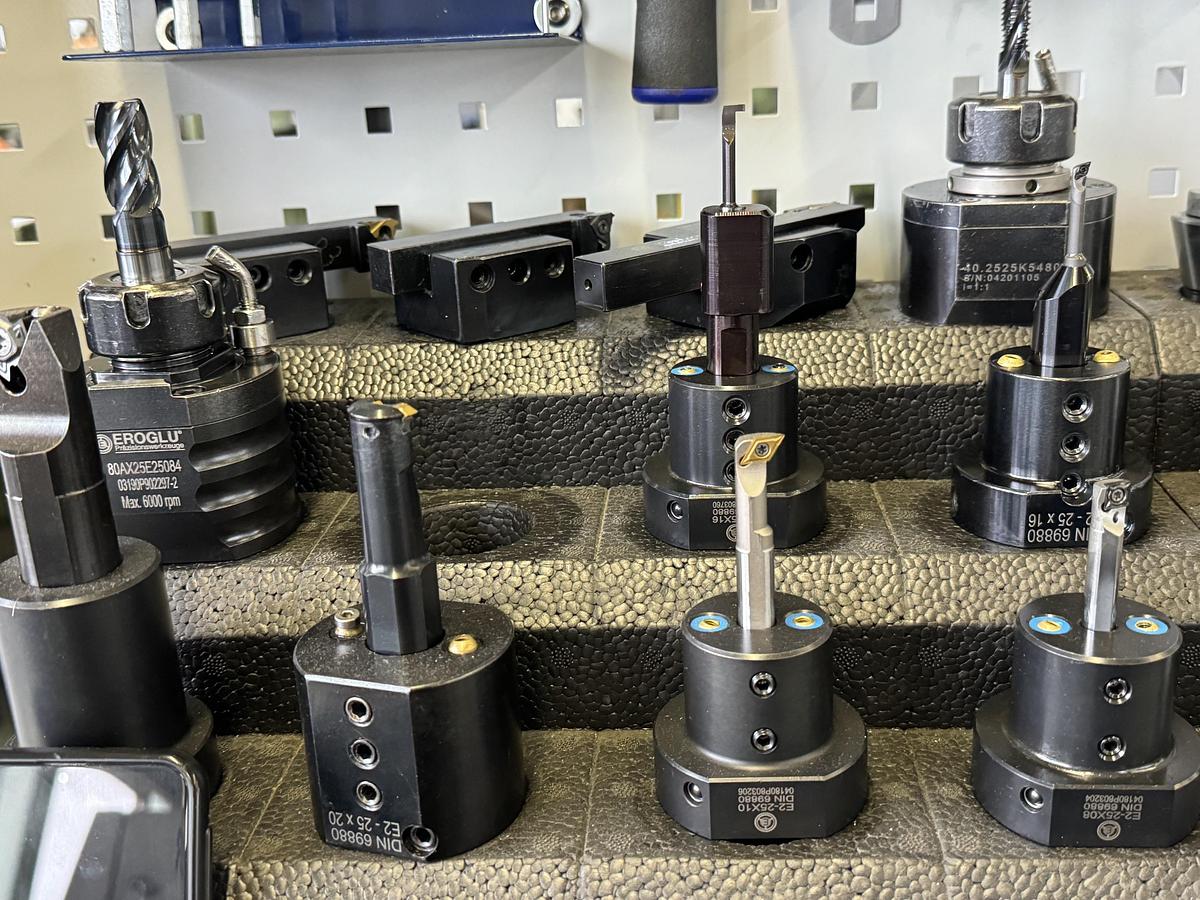

- Various tool holders and accessories
