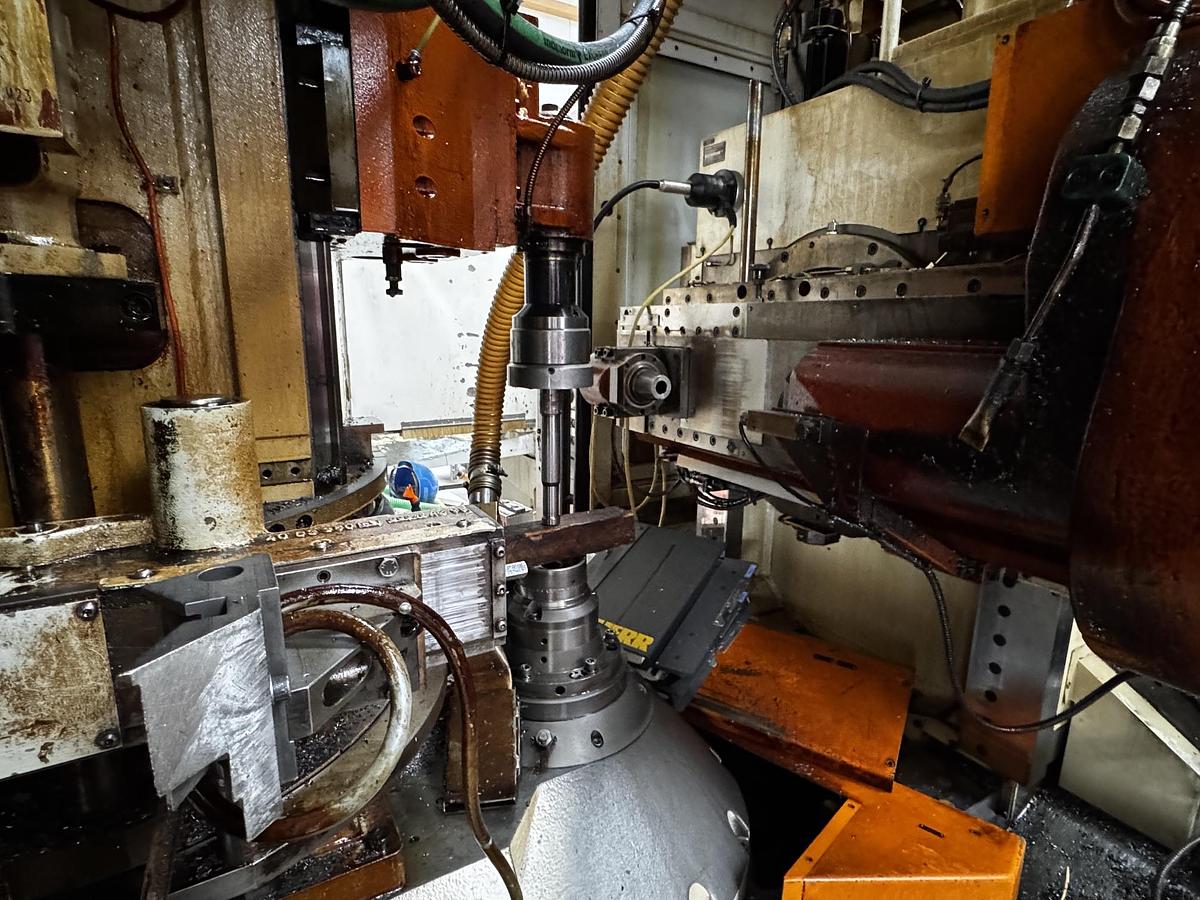

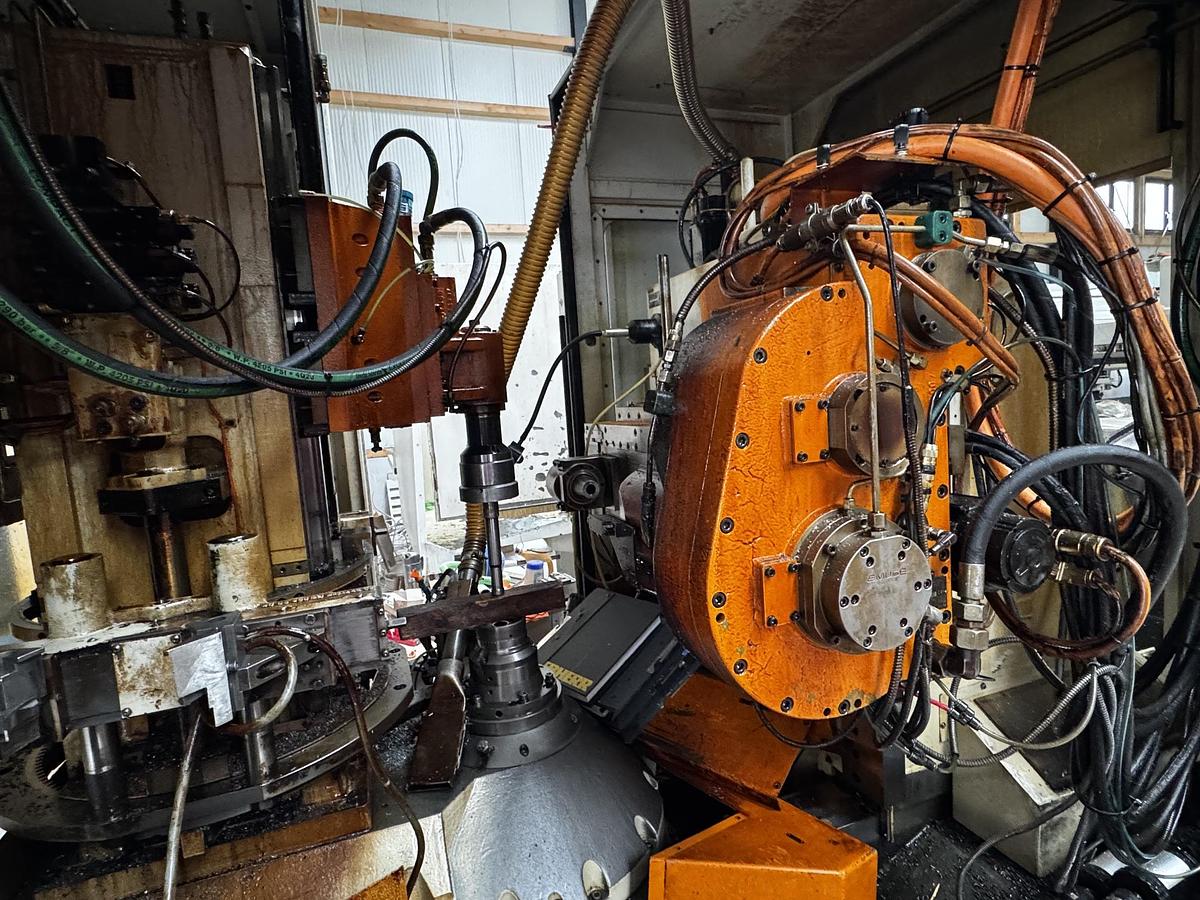

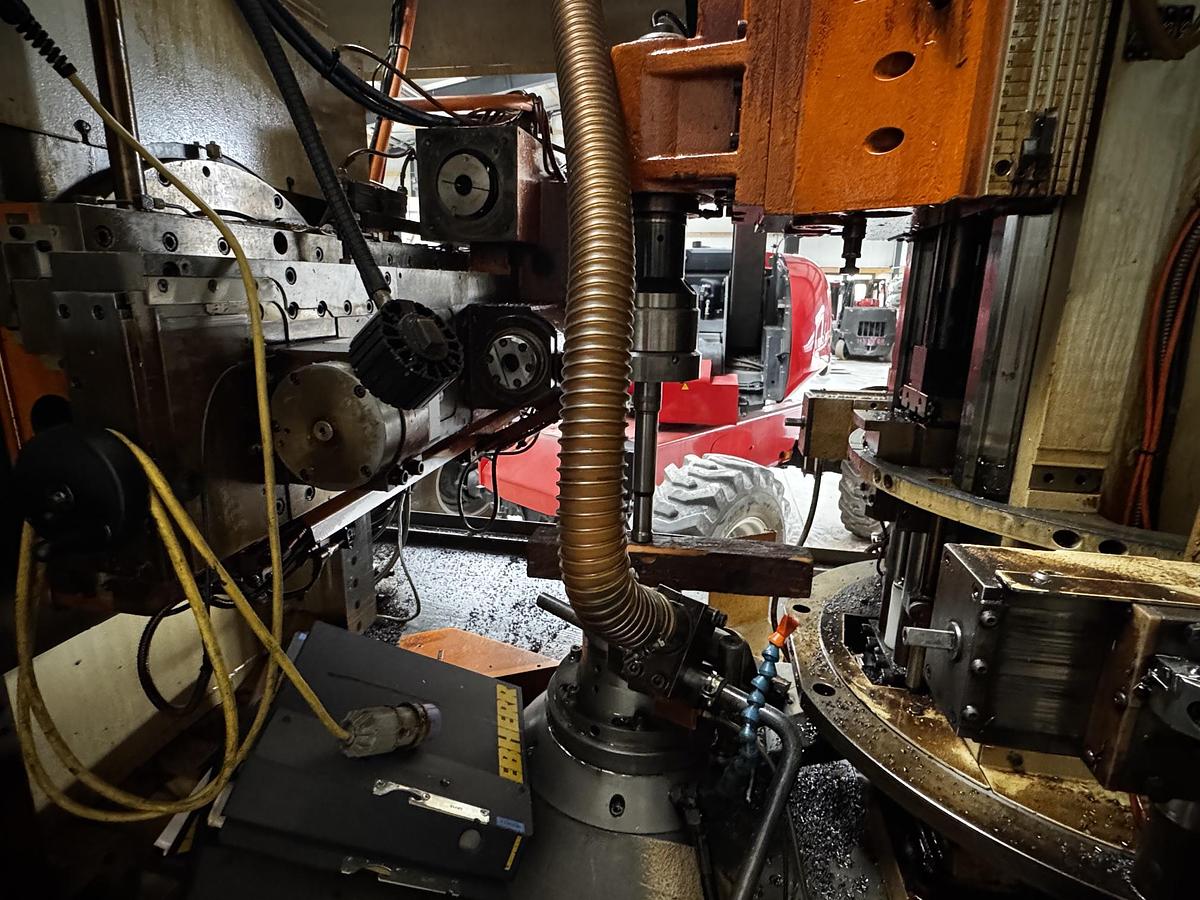

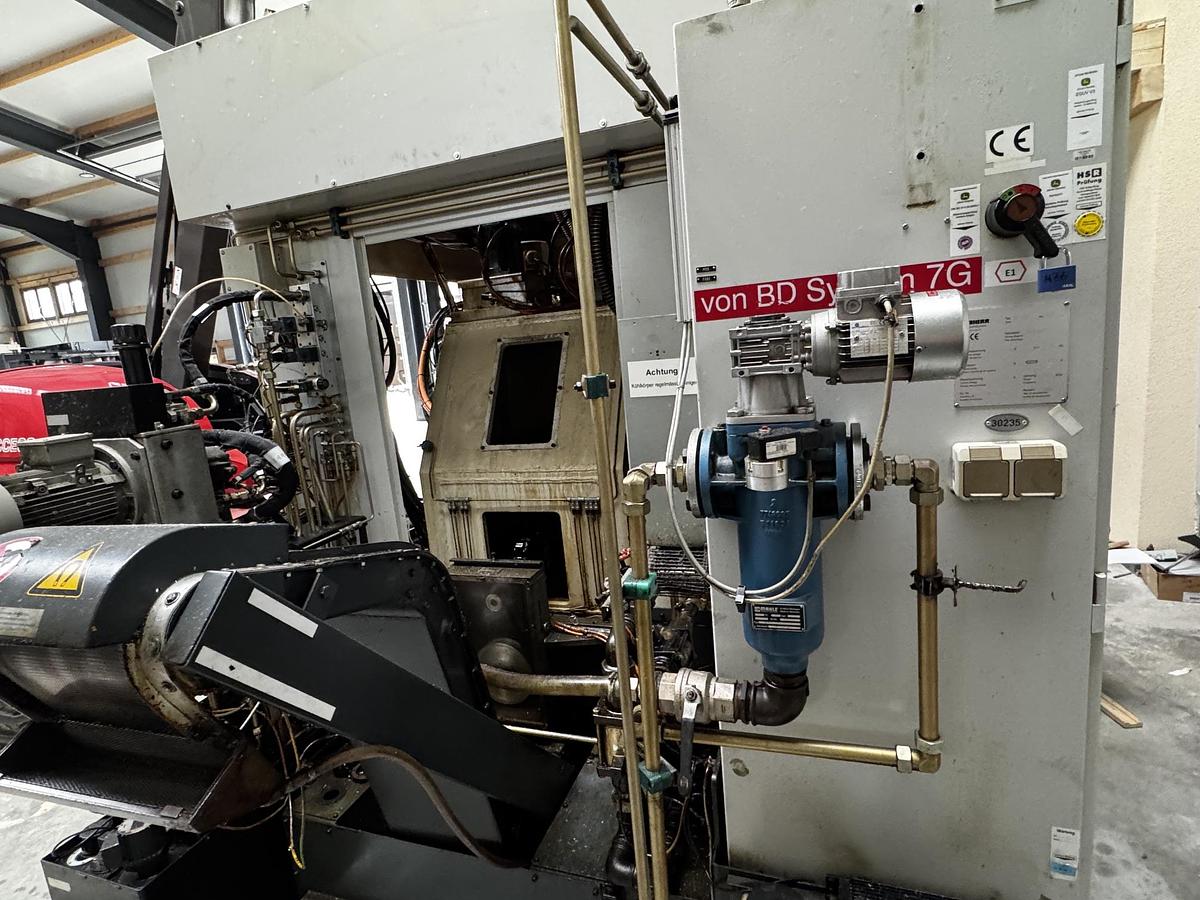

CNC cylindrical gear hobbing machine LIEBHERR LC 282

CNC gear hobbing machine

LIEBHERR LC 282

Year of manufacture 1999

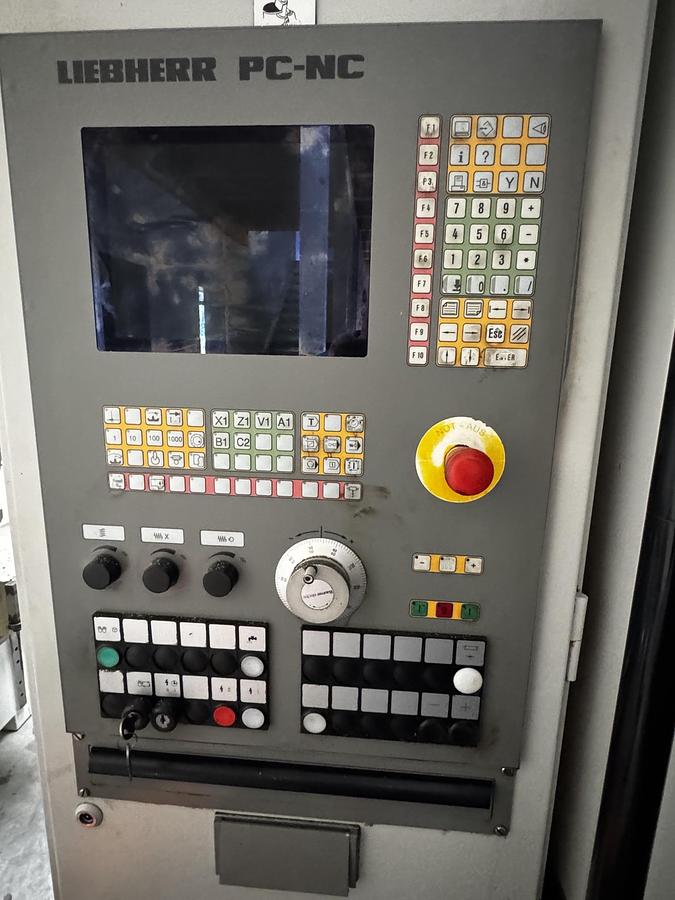

CNC Control LIEBHERR PC-NC

Technical specifications

Wheel diameter - max.: 280 mm

Module - max.: 7

Axial travel max.: 600mm

Table spindle speed range: 100 rpm

Table diameter: 250 mm

Number of teeth - min.: 4

Milling spindle speeds: 750 rpm

Largest milling cutter diameter: 160

Maximum tool length: 230 mm

Total drive approx. 38 kVA

Dimensions L6380mm, W4460mm, H3680mm

Total weight approximately 14,000 kg
