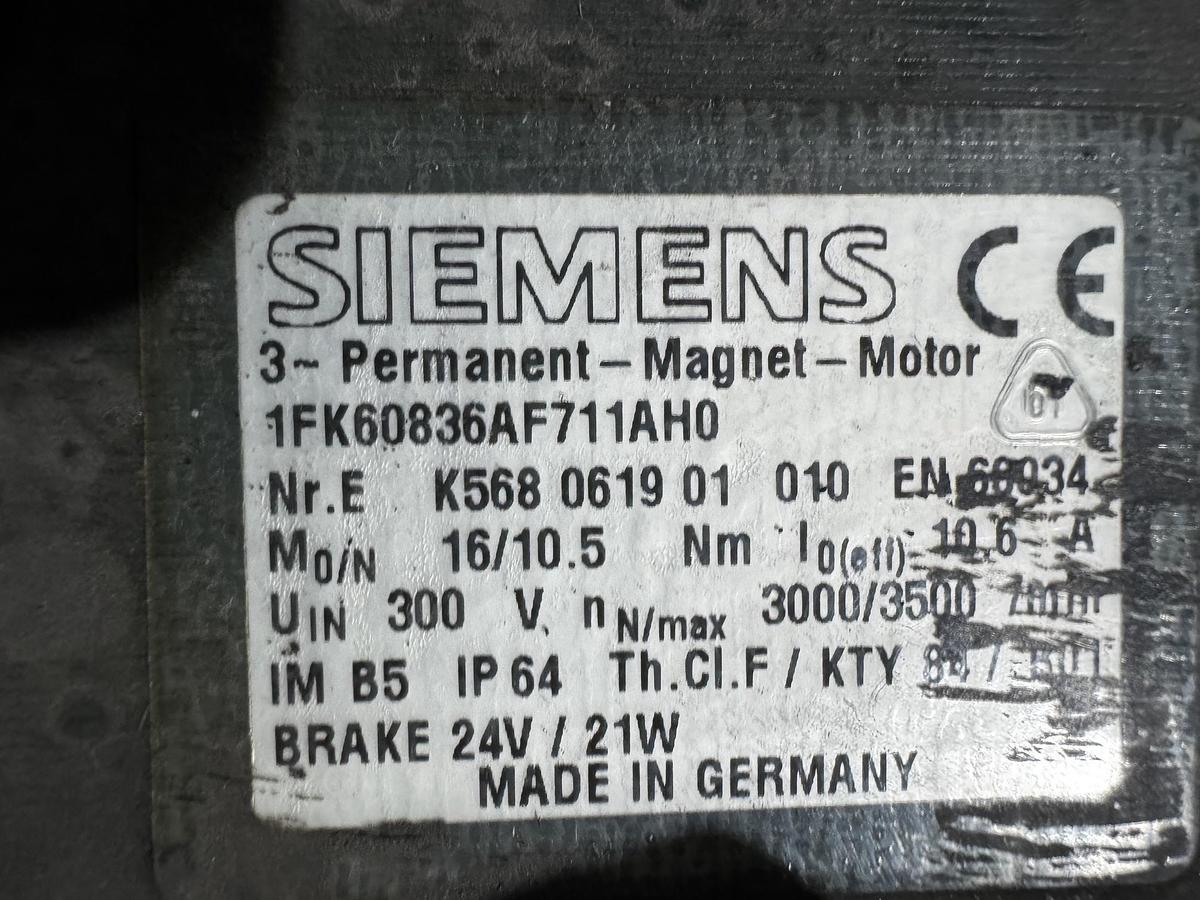

Servo motor SIEMENS 1FK6083-6AF71-1AH0

3~ Permanent magnet synchronous motor from the 1FK6 series.

Identification & Mechanics

• Model / MLFB: 1FK6083-6AF71-1AH0

• Serial number (No. E): K568 0619 01 010

• Standards: EN 60034

• Construction form: IM B5

• Protection class: IP 64

• Shaft end: Smooth shaft

• Weight: approx. 18.4 kg

Electrical & performance values

• Standstill torque (M₀): 16 Nm

• Rated torque (\(M_{N}\)): 10,5 Nm

• Stall current (I₀ eff.): 10.6 A

• Interstage voltage (\(U_{IN}\)): 300 V

• Rated speed (\(n_{N}\)): 3000 rpm

• Maximum speed (\(n_{max}\)): 3500 rpm

• Number of poles: 6-pole motor
