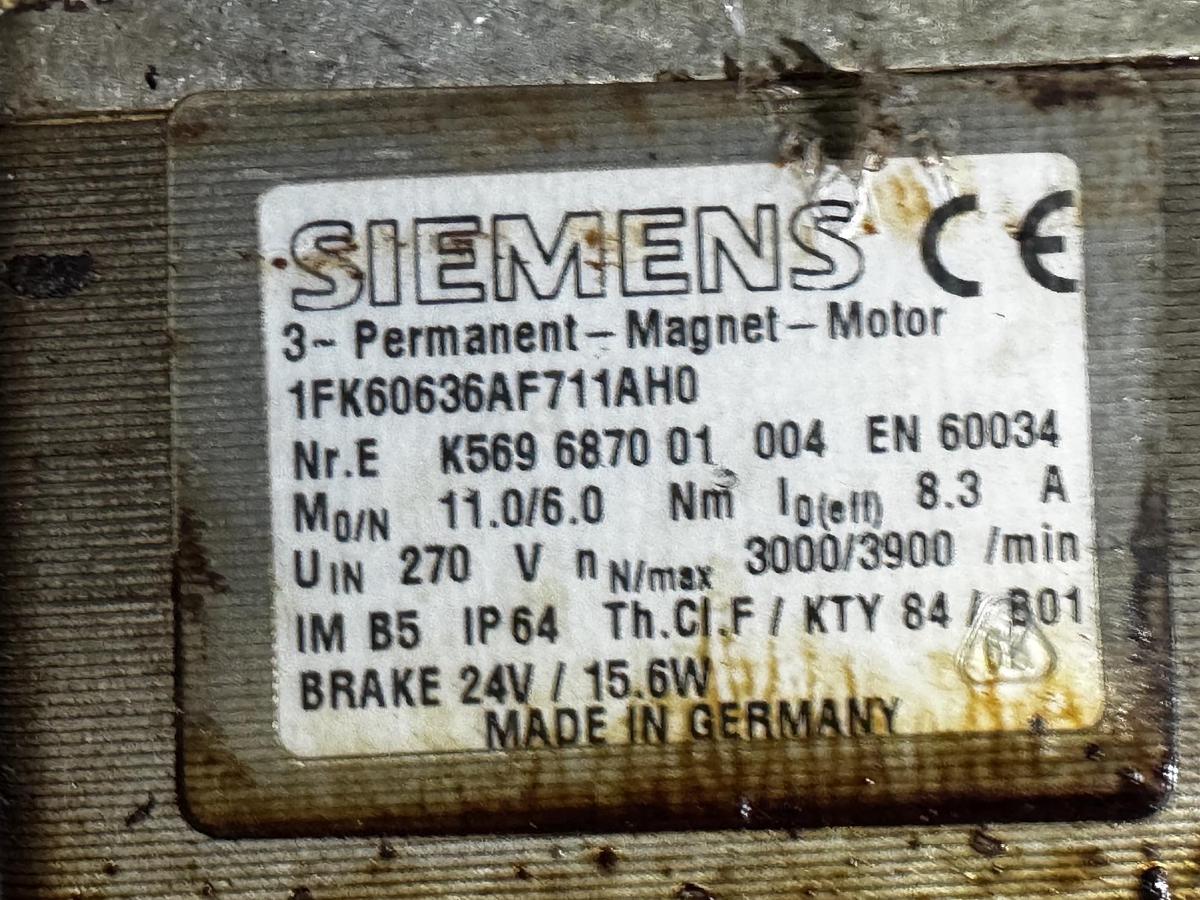

Servo motor Siemens 1FK6063-6AF71-1AH0

Servo motor Siemens 1FK6063-6AF71-1AH0

3~ Permanent magnet synchronous motor from the 1FK6 series.

Identification & Mechanics

• Model / MLFB: 1FK6063-6AF71-1AH0

• Serial number (No.E): K569 6870 01 004

• Standards: EN 60034

• Construction form: IM B5

• Protection class: IP 64

• Shaft end: Smooth shaft

• Weight: approx. 13.2 kg

Electrical & performance values

• Stall torque (M₀): 11.0 Nm

• Rated torque (M_N): 6.0 Nm

• Inrush current (I_{0(eff)}): 8,3 A

• Interstage voltage (\(U_{IN}\)): 270 V

• Rated speed (\(n_{N}\)): 3000 rpm

• Maximum speed (n_{max}): 3900 rpm

• Number of poles: 6-pole motor
