Servo motor Siemens 1FT6064-1AF71-4AG1

Servo motor Siemens 1FT6064-1AF71-4AG1

3~ Brushless servo motor from the higher-end series 1FT6.

Identification & Mechanics

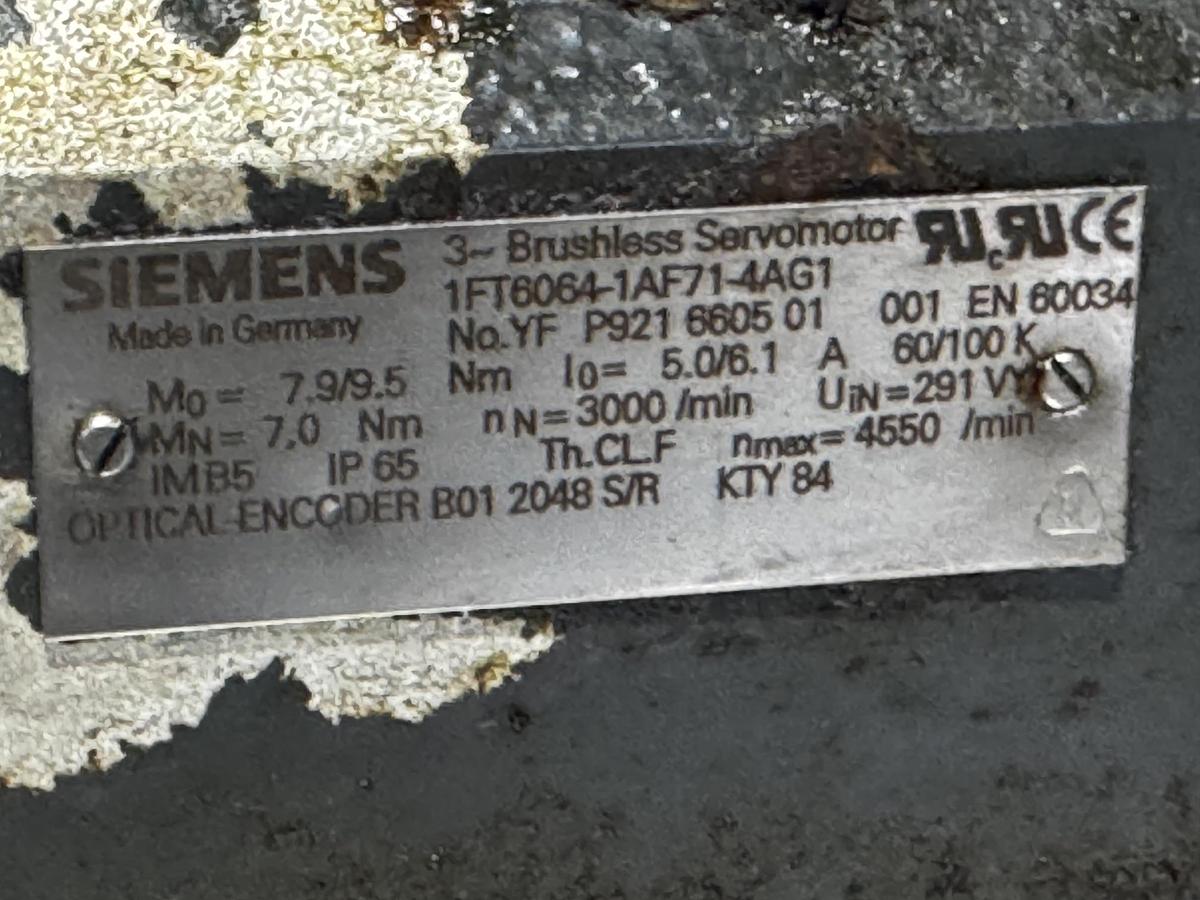

• Model / MLFB: 1FT6064-1AF71-4AG1

• Serial number (No.YF): P921 6605 01 001

• Standards: EN 60034 / UR / cUR

• Housing: IM B5 (standard flange mounting)

• Protection class: IP 65 (dust-tight and protected against water jets from all directions)

• Shaft end: Smooth shaft (without keyway, designation G)

Electrical & performance values

• Static torque (M₀): 7.9 Nm (with warming 60K) / 9.5 Nm (with warming 100K)

• Rated torque (\(M_{N}\)): 7,0 Nm

• Stall current (I₀): 5.0 A (at 60K) / 6.1 A (at 100K)

• Interstage voltage (U_IN): 291 V

• Rated speed (\(n_{N}\)): 3000 rpm

• Maximum speed (\(n_{max}\)): 4550 rpm
