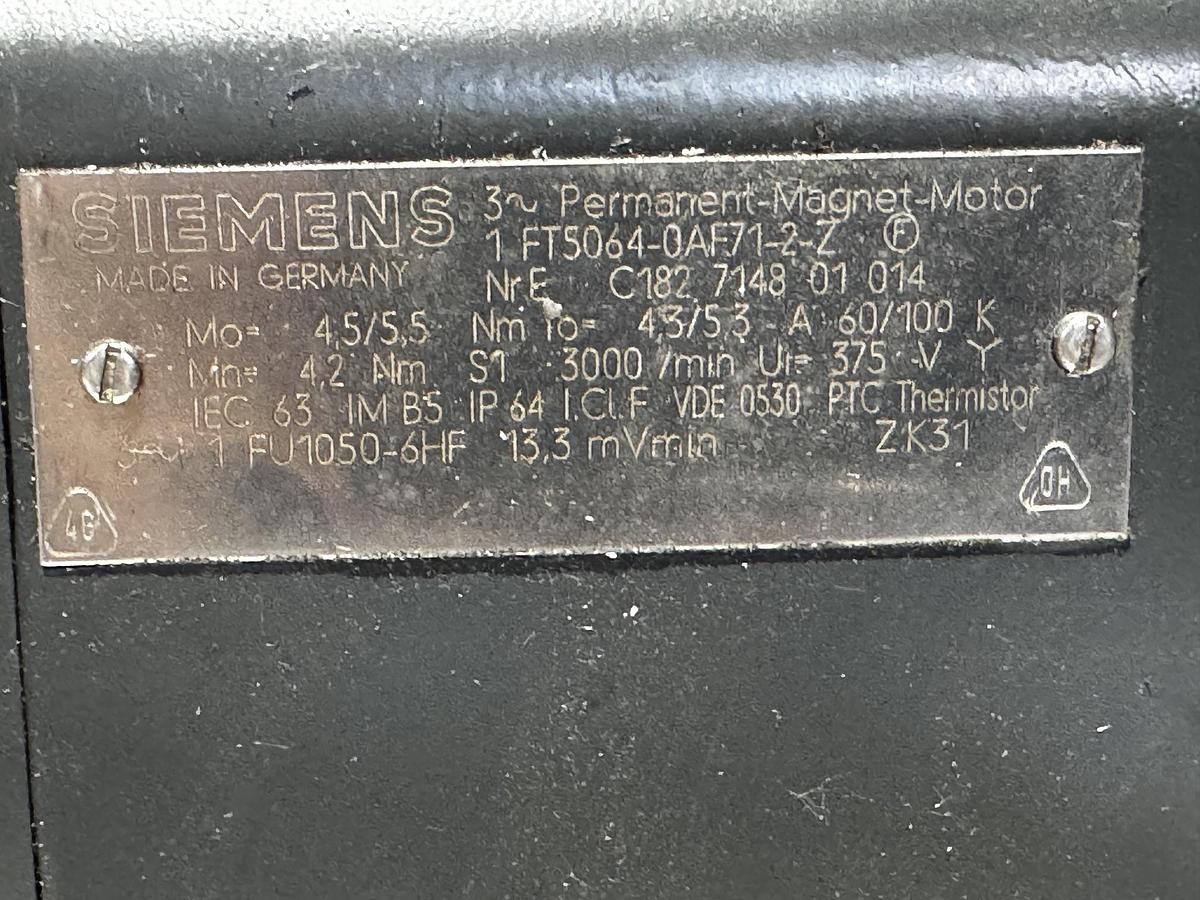

Servo motor Siemens 1FT5064-0AF71-2-Z

Servo motor Siemens 1FT5064-0AF71-2-Z

3~ permanent-magnet motor from the classic series 1FT5.

Identification & Mechanics

• Model / MLFB: 1FT5064-0AF71-2-Z (with the optional option ZK31)

• Serial number (No.E): C182 7148 01 014

• Standards: VDE 0530 / IEC 63

• Construction form: IM B5

• Protection class: IP 64

Electrical & performance values

• Static torque (M₀): 4.5 Nm

• Rated torque (\(M_{N}\)): 4,2 Nm

• Stall current (I₀): 4.3 A (at 60K) / 5.3 A (at 100K)

• Operating mode: S1 (continuous operation)

• Rated speed (n): 3000 rpm

• Induced voltage (\(U_{i}\)): 375 V (in Y-connection)
