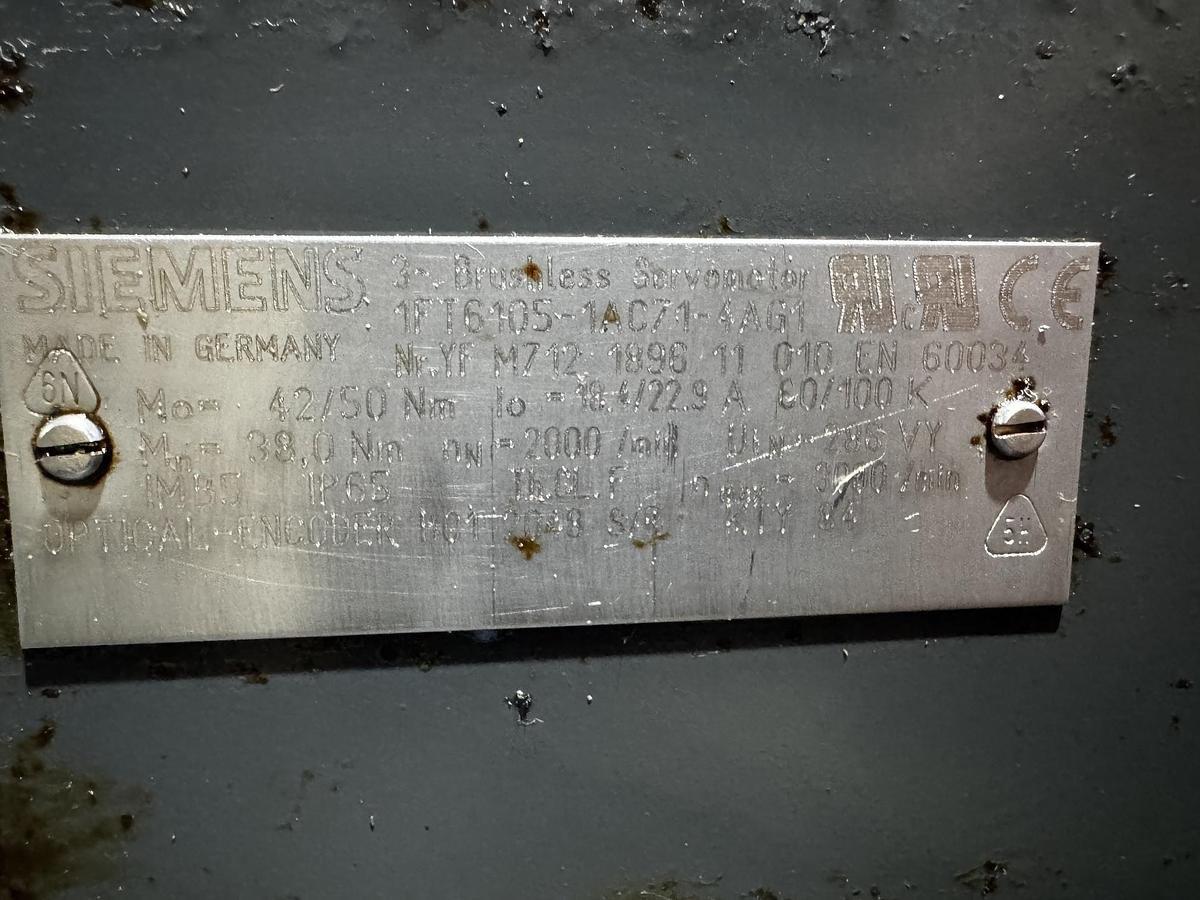

Siemens SIMOTICS 1FT6105-1AC71-4AG1 three-phase synchronous servo motor

Siemens SIMOTICS 1FT6105-1AC71-4AG1 three-phase synchronous servo motor

General product data

• Manufacturer: Siemens AG

• Product family: SIMOTICS S / 1FT6 servo motor (high-performance series)

• Motor type: 3~ Brushless servo motor (Permanent magnet synchronous motor)

• Country of manufacture: Made in Germany

• Conformity: CE marking, EN 60034

Technical performance data (Engineering Data)

• Static torque (M₀): 42 Nm (at 60 K heating) / 50 Nm (at 100 K heating)

• Rated torque (\(M_{N}\)): 38,0 Nm

• No-load current / Standby current (I₀): 19.4 A (at 60 K) / 22.9 A (at 100 K)

• Nominal speed (\(n_{N}\)): 2000 /min (rpm)

• Maximum speed (\(n_{max}\)): 3300 /min (rpm)

• Weight (m): approx. 35 kg

Mechanical design & environmental conditions

• Construction type: IM B5 (standard flange mounting, also suitable for IM V1 and IM V3)

• Protection class: IP 65 (full contact protection, dust-tight and protected against water jets from all directions)

• Heat class / insulation class: Th.Cl.F (designed for thermal loads up to 155 °C)

• Cooling type: Natural convection cooling (Naturally cooled)

• Connection variant: For power/signal connectors, outlet direction axial (drive side / AS)

• Parking brake: Without integrated parking brake

Gebersystem (Encoder)

• Typ: Optical incremental encoder (Optical Encoder)

• Signal form: Sinus/Cosinus 1 Vss (1 Vpp)

• Resolution: 2048 pulses/revolution (Encoder I-2048)

• Temperature sensor: Integrated KTY 84 sensor for thermal motor monitoring
