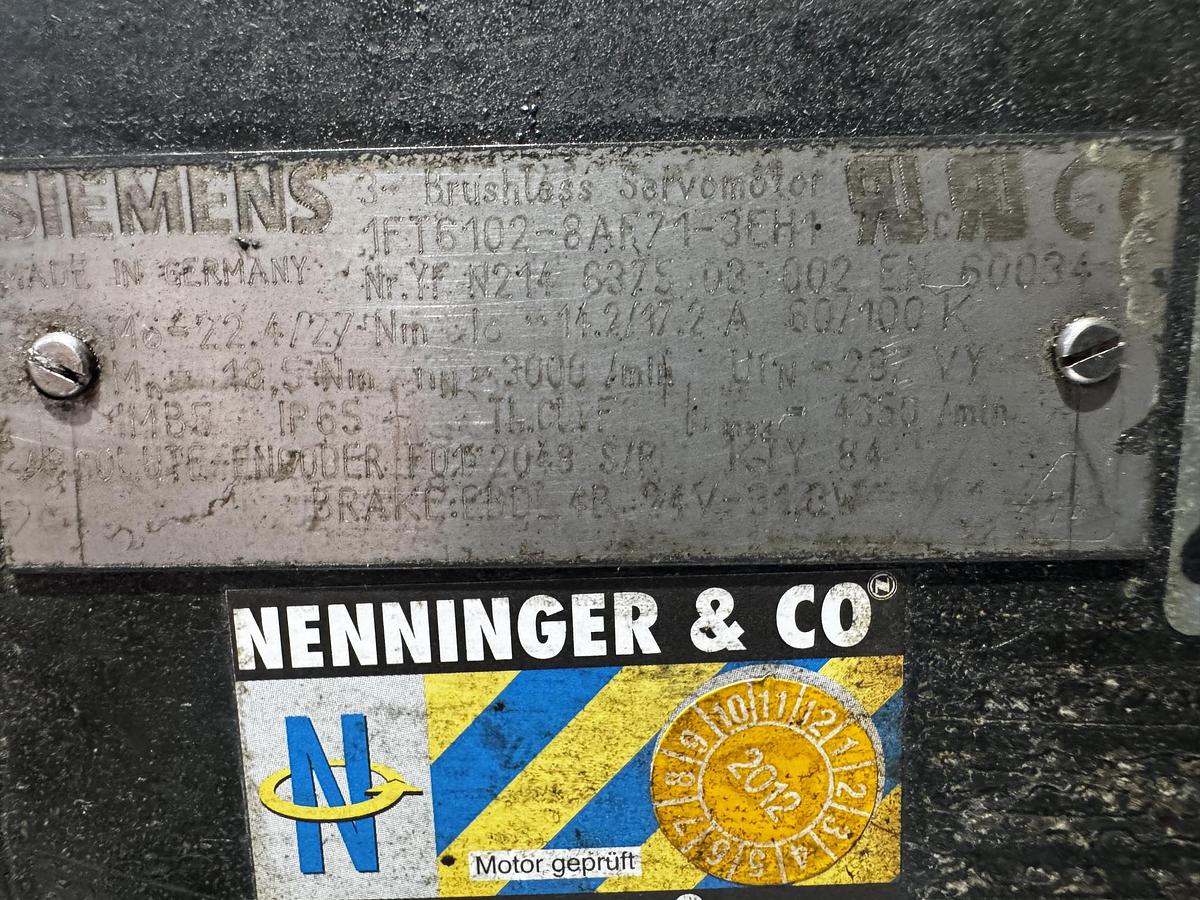

Siemens SIMOTICS 1FT6102-8AF71-3EH1 three-phase synchronous servo motor

Siemens SIMOTICS 1FT6102-8AF71-3EH1 three-phase synchronous servo motor

General product data

• Manufacturer: Siemens AG

• Product family: SIMOTICS S / 1FT6 servo motor (High-Performance Series)

• Motor type: 3~ Brushless servo motor (Permanent magnet synchronous motor)

• Country of manufacture: Made in Germany

• Conformity: CE marking, EN 60034

Technical performance data (Engineering Data)

• Static torque (M₀): 22.4 Nm (at 60 K warming) / 27 Nm (at 100 K warming)

• Rated torque (M_N): 18.5 Nm

• No-load current / Standstill current (I₀): 14.2 A (at 60 K) / 17.2 A (at 100 K)

• Nominal speed (\(n_{N}\)): 3000 /min (rpm)

• Maximum speed (\(n_{max}\)): 4350 /min (rpm)

• Rated voltage (\(U_{IN}\)): 232 V Y (Star connection)

Mechanical design & environmental conditions

• Overall height: 100 mm (specified by the encoding "102" in the article number)

• Construction type: IM B5 (standard flange mounting, also suitable for vertical installations IM V1 and IM V3)

• Protection rating: IP 65 (dust-tight and protected against water jets from any angle)

• Temperature class / insulation class: Th.Cl.F (designed for thermal peak loads in operation up to 155 °C)

• Cooling: Natural cooling (Naturally cooled via surface)

Integrated hold brake (Brake)

• Type: Built-in permanent magnet holding brake (BRAKE)

• Operating voltage: 24 V DC (direct current)

• Power consumption: 31.8 W

Gear system & sensor technology (encoder)

• Type: Absolute multiturn encoder (Absolute Encoder F35 / AM2048) with EnDat interface

• Resolution: 2048 impulses/revolution (sinus/cosinus 1 Vss)

• Temperature sensor: Integrated KTY 84 temperature probe to protect motor windings from overheating
