Siemens SIMOTICS 1FT6082-8AC71-3EG1 three-phase synchronous servo motor

Siemens SIMOTICS 1FT6082-8AC71-3EG1 three-phase synchronous servo motor

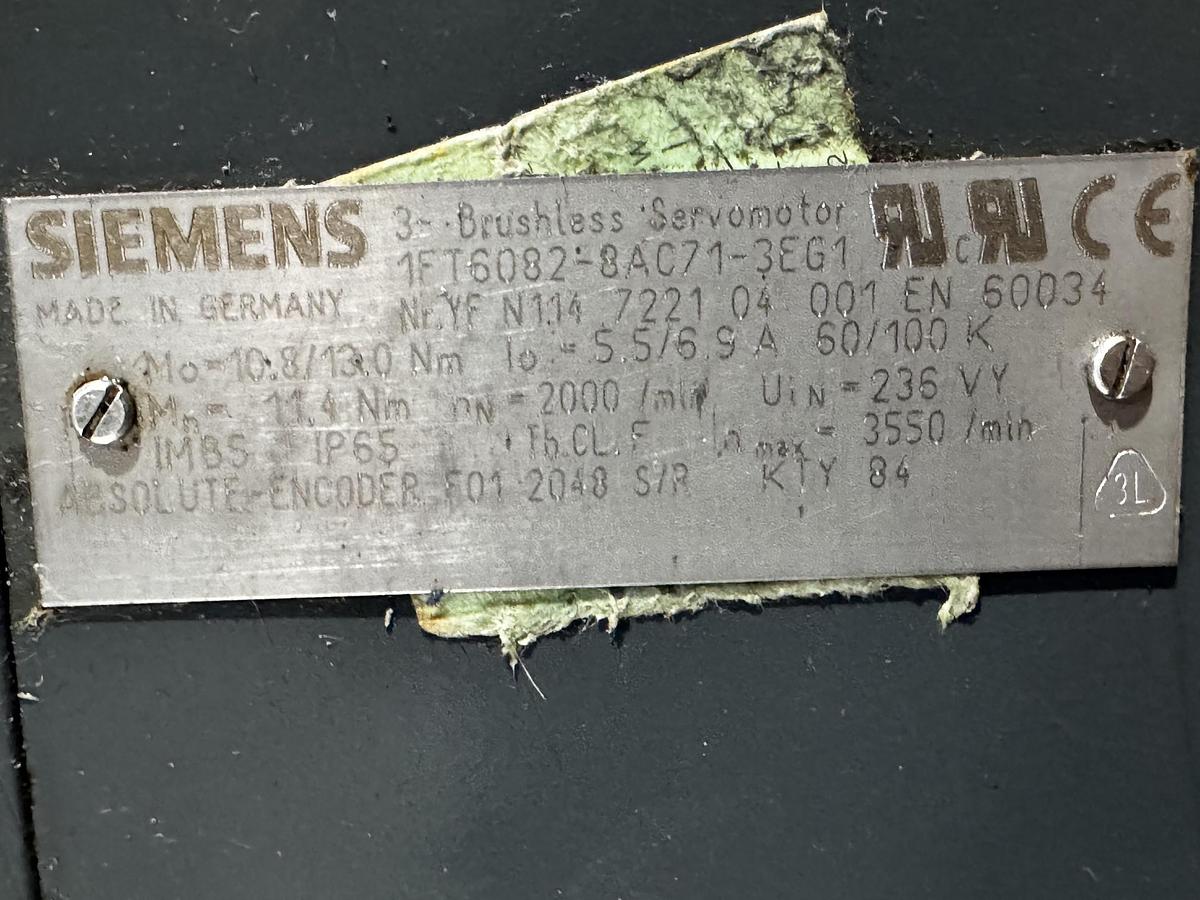

General product data

• Manufacturer: Siemens AG

• Product family: SIMOTICS S / 1FT6 servo motor (High-Performance Series)

• Motor type: 3~ Brushless servo motor (Permanent magnet synchronous motor)

• Country of manufacture: Made in Germany

• Conformity: CE marking, cURus, EN 60034

Technical performance data (Engineering Data)

• Static torque (M₀): 10.8 Nm (at 60 K warming) / 13.0 Nm (at 100 K warming)

• Rated torque (\(M_{N}\)): 11,4 Nm

• No-load current / Standstill current (I₀): 5.5 A (at 60 K) / 6.9 A (at 100 K)

• Nominal speed (\(n_{N}\)): 2000 /min (rpm)

• Maximum speed (\(n_{max}\)): 3550 /min (rpm)

• Rated voltage (\(U_{IN}\)): 236 V Y (Star connection)

• Weight (m): approx. 14 kg

Mechanical design & environmental conditions

• Overall height: 80 mm (specified by the code "082" in the article number)

• Construction type: IM B5 (standard flange mounting, also suitable for vertical installations IM V1 and IM V3)

• Protection class: IP 65 (complete protection against touch, dust-tight and protected against water jets from any angle)

• Temperature class / insulation class: Th.Cl.F (designed for thermal peak loads in operation up to 155 °C)

• Cooling: Natural self-cooling via the housing surface

• Parking brake: Without integrated parking brake (specified by model code)

Gear system & sensor technology (encoder)

• Type: Absolute multiturn encoder (Absolute Encoder F01 / 2048 S/R) with EnDat interface

• Resolution: 2048 impulses/revolution (sinus/cosinus 1 Vss)

• Temperature sensor: Integrated KTY 84 temperature probe for permanent thermal motor monitoring and protection of the windings against overheating
