Baumüller DSG 71-K Three-phase synchron servo motor Art.-No. 262650.

Baumüller DSG 71-K Three-phase synchron servo motor Art.-No. 262650.

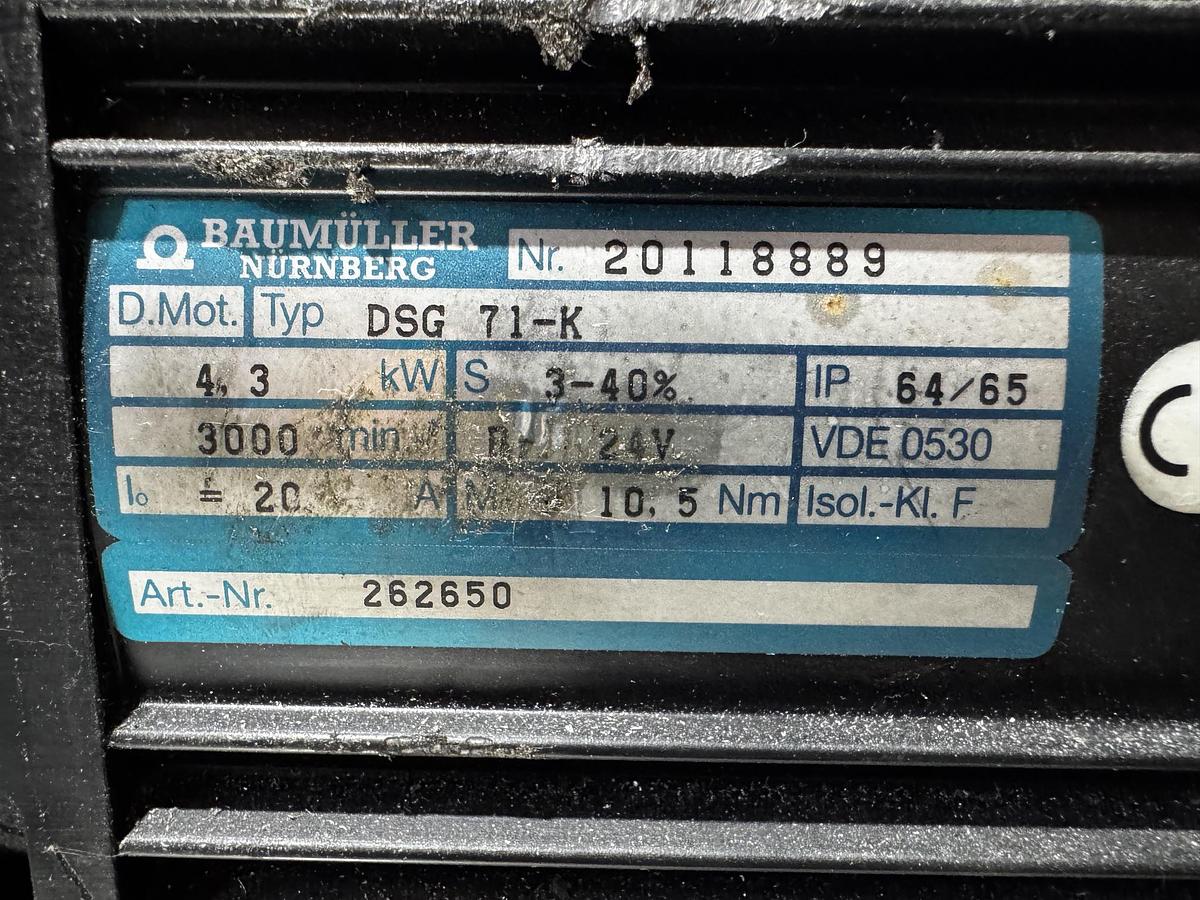

General product data

• Manufacturer: Baumüller Nürnberg GmbH

• Product family: DSG series (three-phase synchronous motors for highly dynamic applications)

• Type designation: DSG 71-K

• Serial number (No.): 20118889

• Compliance: VDE 0530

Technical performance data (Engineering Data)

• Rated power: 4.3 kW

• Nominal torque (M₀): 10.5 Nm

• No-load / Standstill current (I₀): 20 A

• Rated speed: 3000 /min (rpm)

• Operating mode: S3 - 40% (intermittent operating with a duty cycle of 40%)

Mechanical design & environmental conditions

• Overall height / build size: 72 mm (specified by build size 71)

• Degrees of protection: IP 64 / IP 65 (complete protection against touching, dust-tight as well as protected against splashing and jet water)

• Insulation class / thermal class: insulation class F (designed for thermal stresses of the winding up to 155 °C)

Integrated hold brake (Brake)

• Type: Built-in holding brake (recognizable by the brake symbol “Br.” on the nameplate)

• Operating voltage: 24 V DC (direct current)
