Baumüller DSG 56-S three-phase synchronous servo motor

Baumüller DSG 56-S three-phase synchronous servo motor

General product data

• Manufacturer: Baumüller Nürnberg GmbH

• Product family: DSG series (three-phase synchronous motors for highly dynamic industrial applications)

• Type designation: DSG 56-S

• Serial number (No.): 98203322 / F

• Compliance: VDE 0530

Technical performance data (Engineering Data)

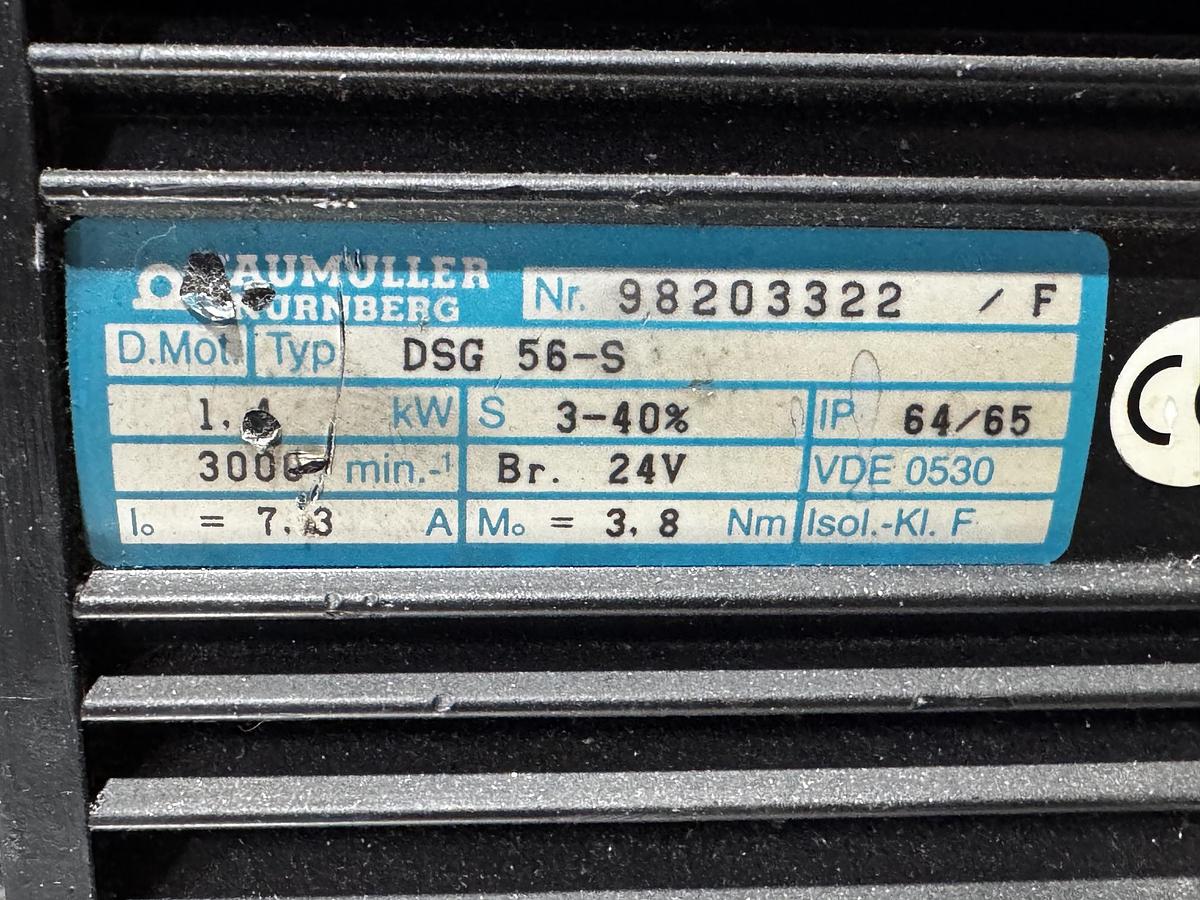

• Rated power: 1.6 kW (The value on the nameplate is slightly damaged, but corresponds to the standard for this version)

• Static torque (M₀): 3.8 Nm

• Idle current / standby current (I₀): 7,3 A

• Rated speed: 3000 /min (rpm)

• Operating mode: S3 - 40% (intermittent operation with a relative on-time of 40%)

Mechanical design & environmental conditions

• Height / construction size: 56 mm

• Protection class: IP 64 / IP 65 (dust-tight, complete touch protection and protected against splash and water jets from all directions)

• Insulation class / thermal class: Insul. Class F (designed for thermal continuous loading of the winding up to 155 °C)

Integrated hold brake (Brake)

• Type: factory-installed hold brake (marked by "Br." on the plate)

• Operating voltage: 24 V DC (direct current)
