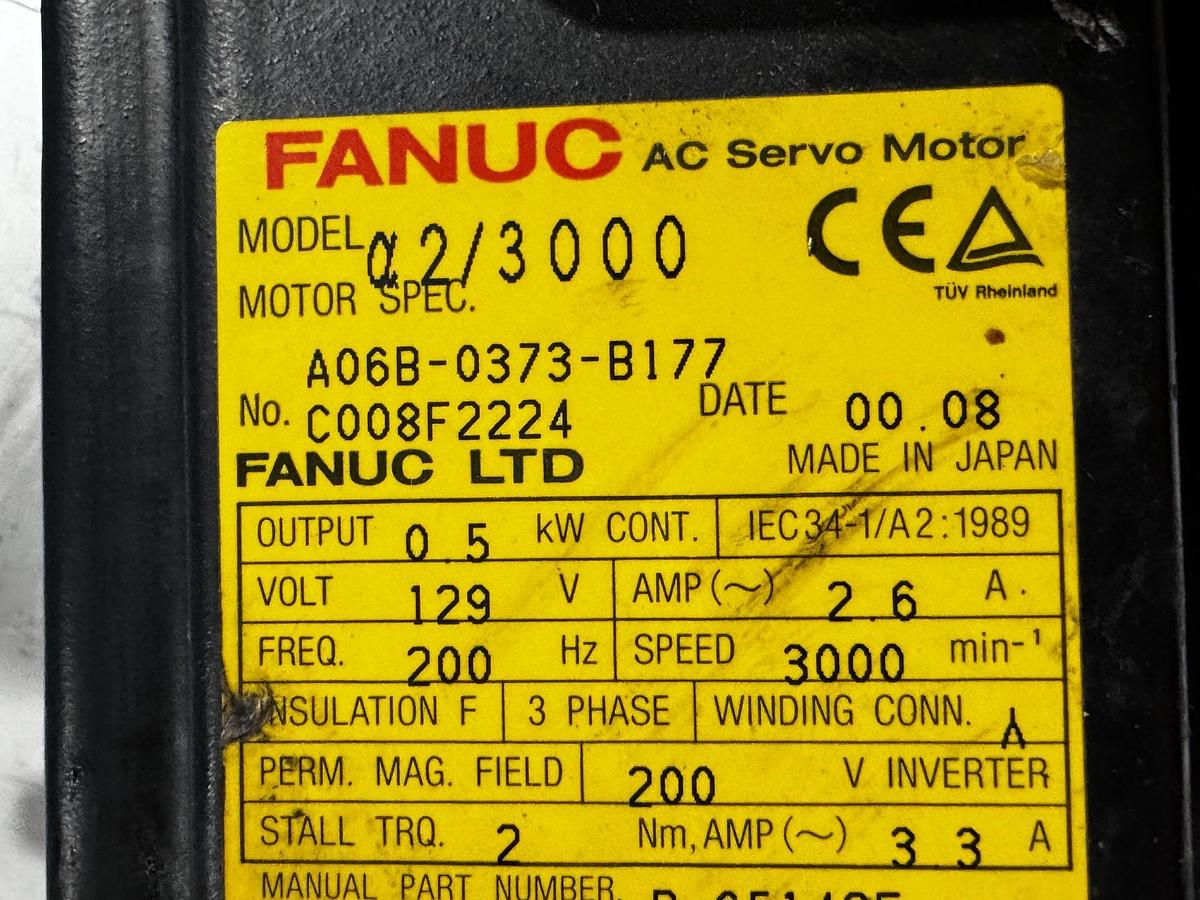

Fanuc AC Servo Motor Model α 2/3000 Motor Spec.:A06B-0373-B177

Fanuc AC Servo Motor Model α 2/3000 Motor Spec.:A06B-0373-B177

General product data

• Manufacturer: FANUC LTD

• Product family: Alpha Series AC Servo Motor

• Model designation: Model α 2/3000 (α2/3000)

• Part number / motor spec.: A06B-0373-B177

• Serial number (No.): C008F2224

• Manufacture date (Date): 00.08 (August 2000)

• Certifications: CE marking, TÜV Rheinland, test standard IEC34-1 / A2:1989

• Country of manufacture: Made in Japan

Technical performance data (Engineering Data)

• Rated output (Output): 0.5 kW in continuous operation (CONT.)

• Stall torque (Stall Trq.): 2 Nm

• Nominal current (A): 2.6 A

• Stall current (Stall Amp): 3.3 A

• Nominal speed (Speed): 3000 /min (rpm)

• Nominal voltage (Volts): 129 V

• Nominal frequency (Freq.): 200 Hz

• Inverter voltage: 200 V inverter (specified drive amplifier class)

Mechanical design & environmental conditions

• Phases: 3-phase alternating current motor (3 phase)

• Winding connection (Winding Conn.): Δ (Delta connection)

• Magnetic field type: Permanent magnet excited (Perm. Mag. Field)

• Insulation class: Insulation F (designed for thermal loads up to 155 °C)

• Weight (m): approx. 4.3 kg

Integrated holding brake (Brake) & shaft

• The suffix -B177 in the Fanuc part number specifies the mechanical interface. In this variant, it is standardly a model with a straight shaft and a factory-integrated 24V holding brake.
