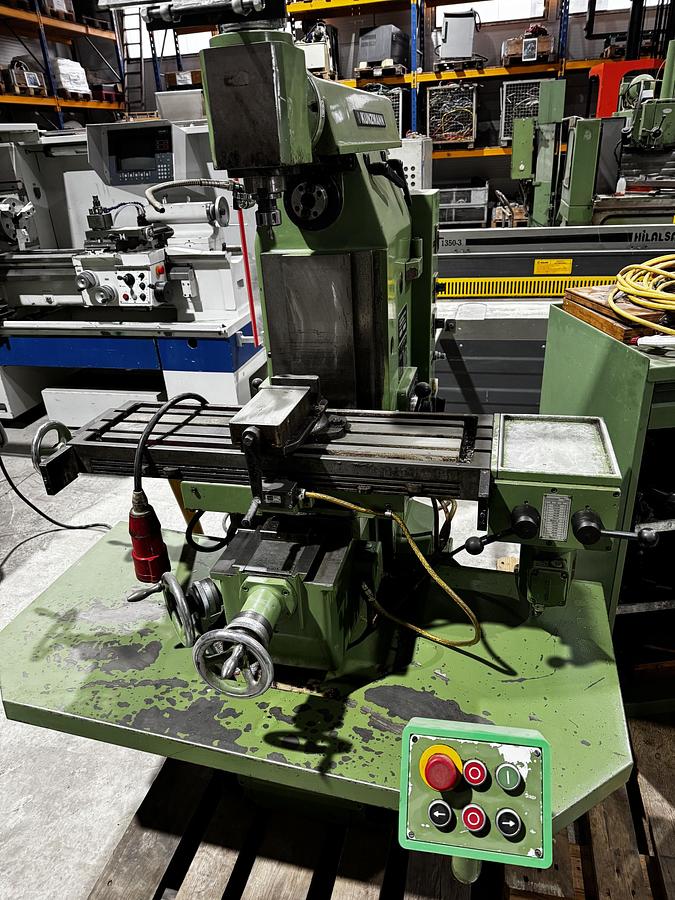

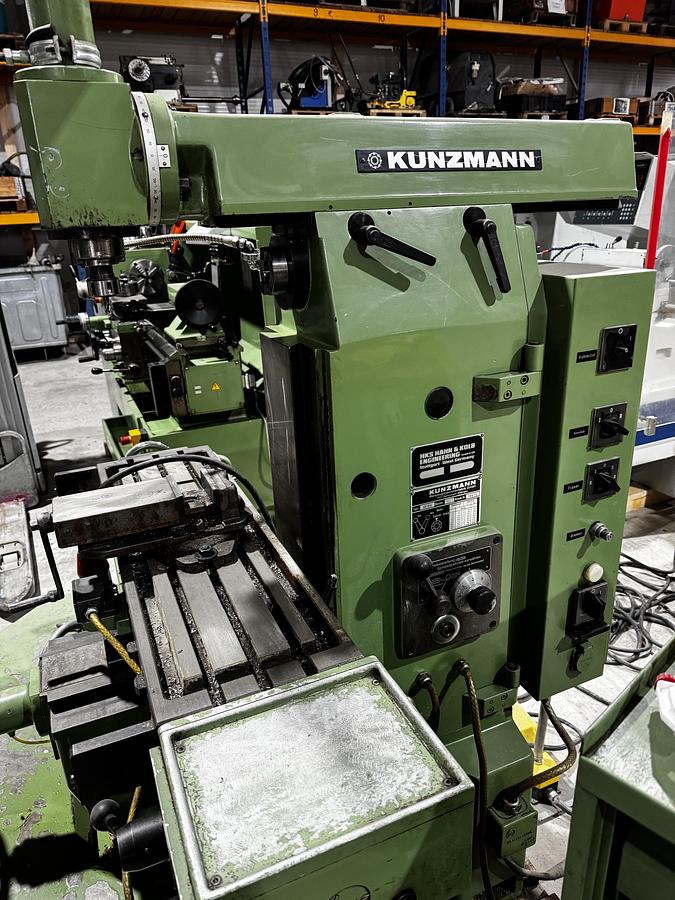

Conventional universal milling machine KUNZMANN UF 6 N

Conventional universal milling machine

KUNZMANN UF 6 N

Year of construction: 1987

Control type: conventional

Travel

• Travel stroke X: approx. 450 mm

• Y travel range: approx. 200 mm

• Travel range Z: approx. 400 mm

Milling head & spindle

• Spindle taper: ISO SK30 (horizontal & vertical)

• Horizontal spindle speeds: 30 – 1275 rpm (18 steps)

• Vertical spindle speeds: 50 – 215 rpm (18 steps)

• Pinolenhub: ca. 60 mm

• Milling head tilt range: ± 90 ° vertical

Table & clamping

• Table clamping surface: approx. 860 × 240 mm

• Tiltable table: approx. ± 45° horizontal

• Distance table/horizontal spindle: up to about 400 mm

• Distance table/vertical spindle: up to approx. 430 mm

Drive & Feed

• Total power requirement: approx. 6.0 kW

  •  Feed range: approx. 0 – 1000 mm/min (stepless or stepped)

  •  Rapid traverse: ca. 2000 mm/min

Dimensions & Weight

• Weight: approx. 2500 kg

• Dimensions (L × W × H): approx. 1.6 × 1.6 × 1.9 m

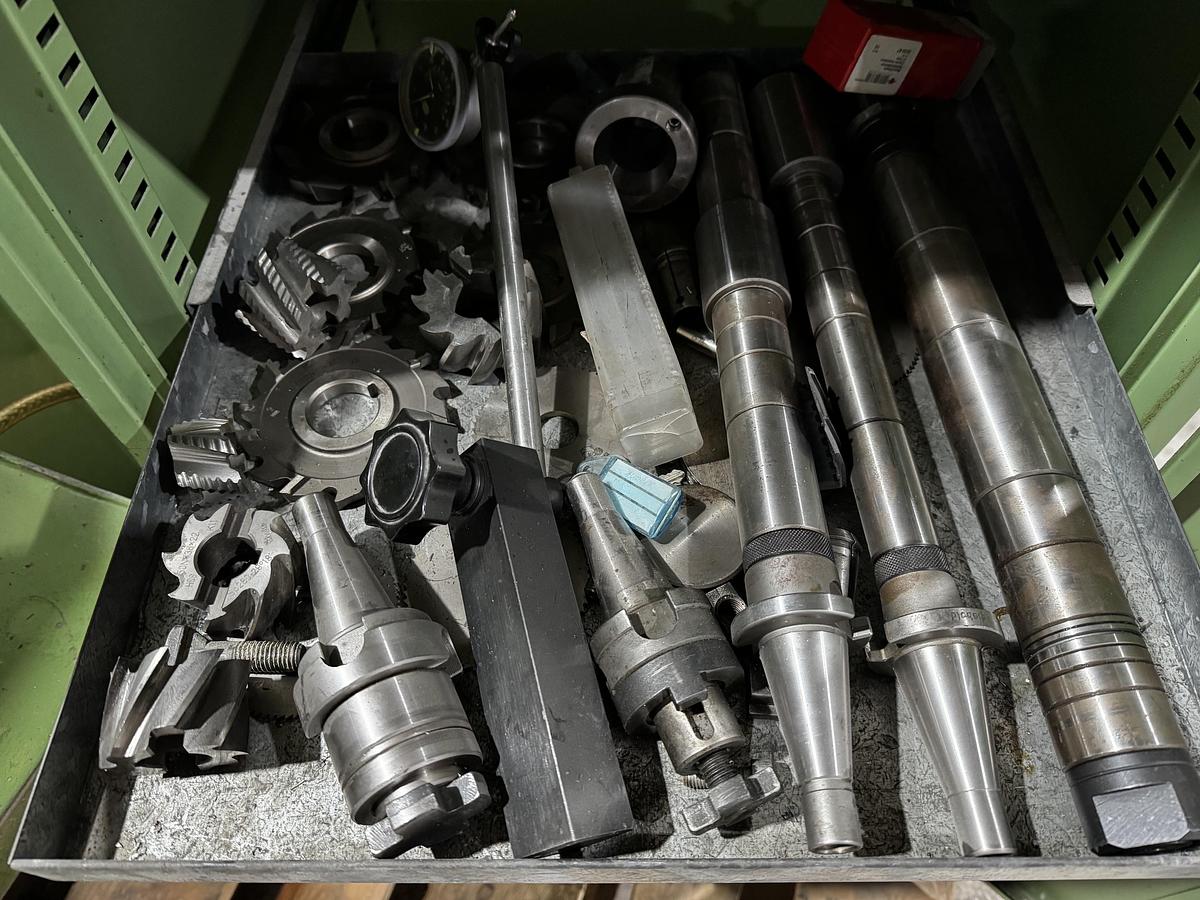

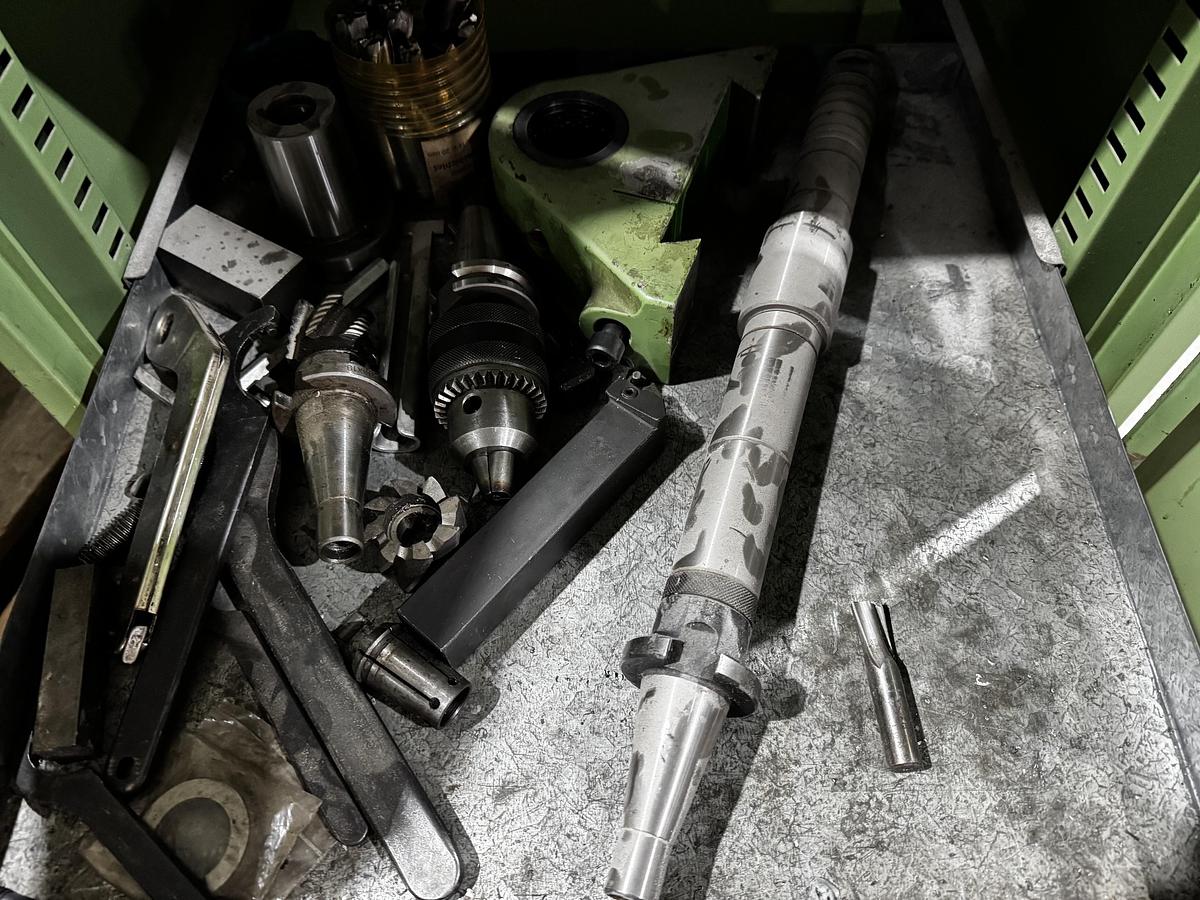

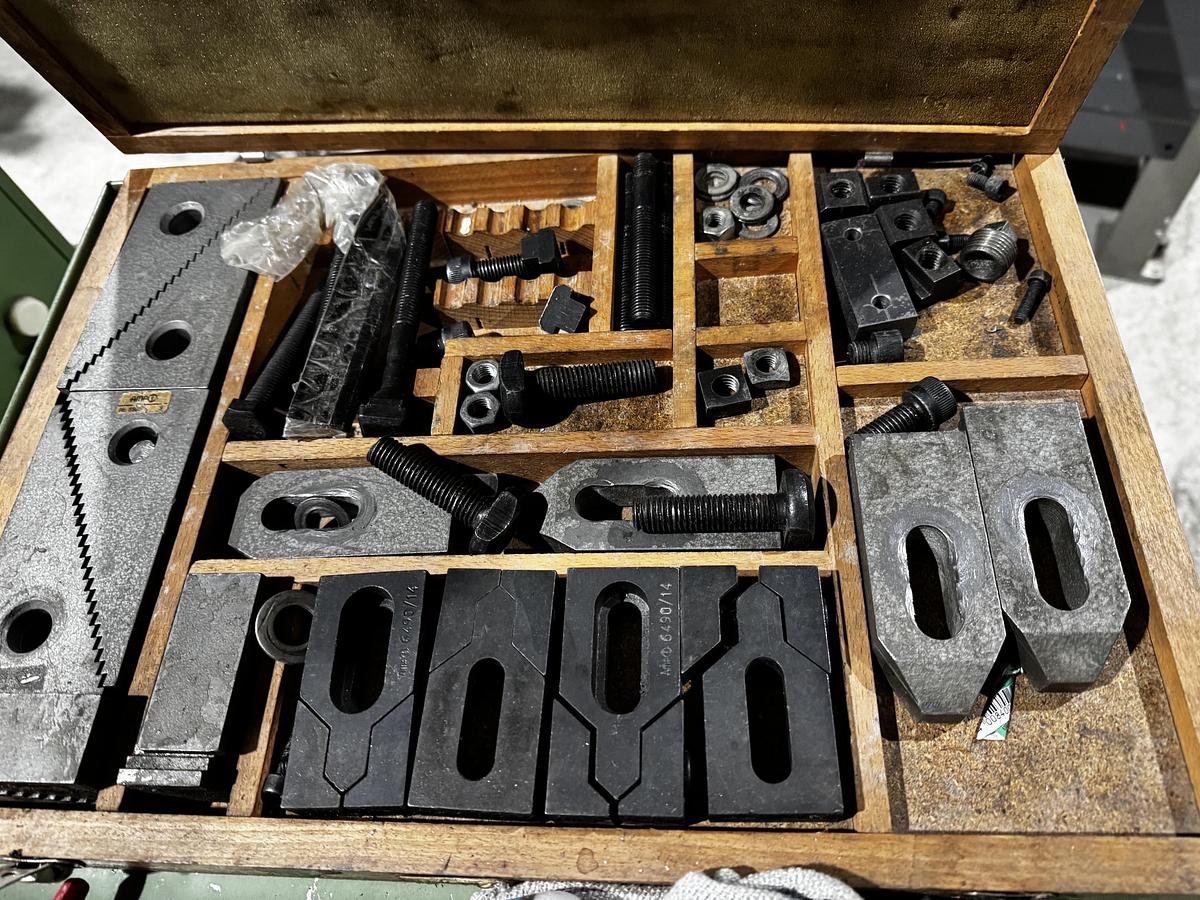

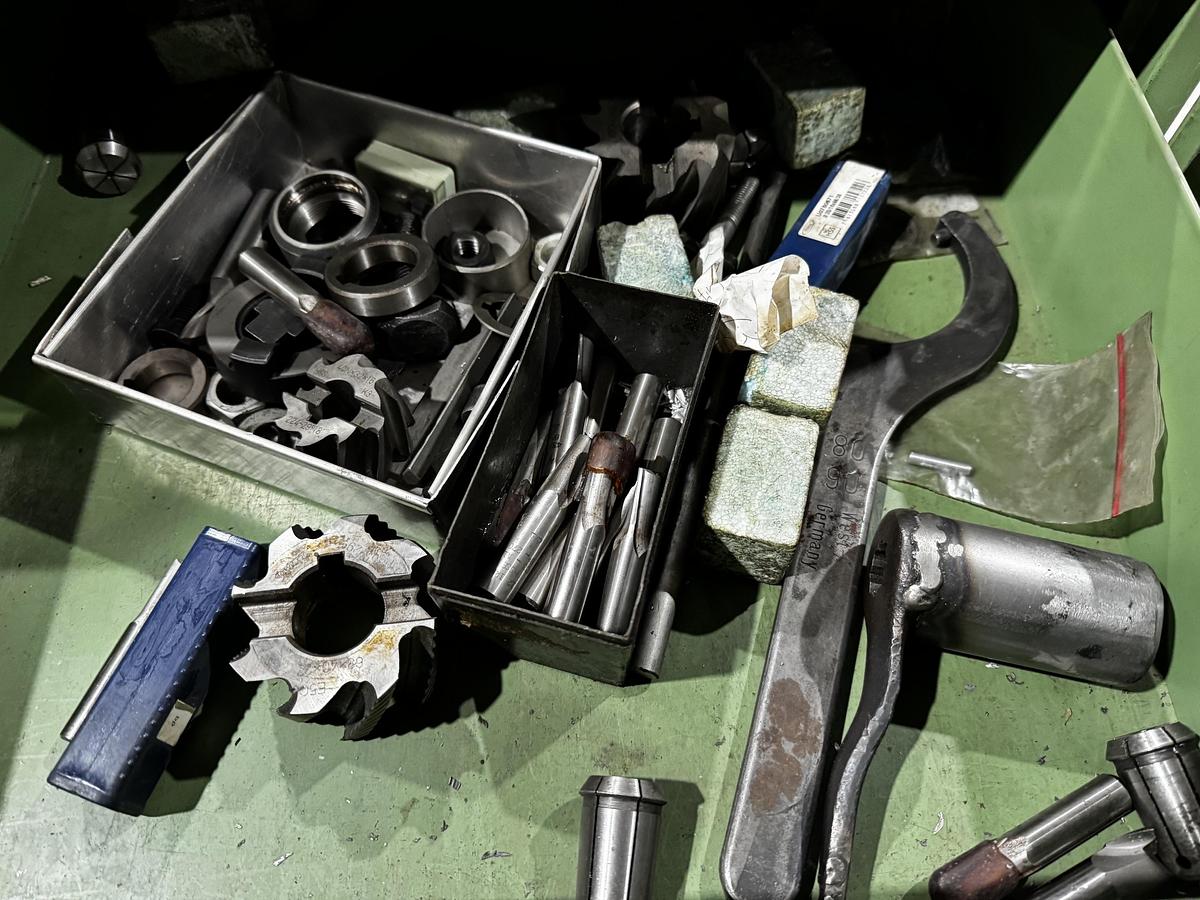

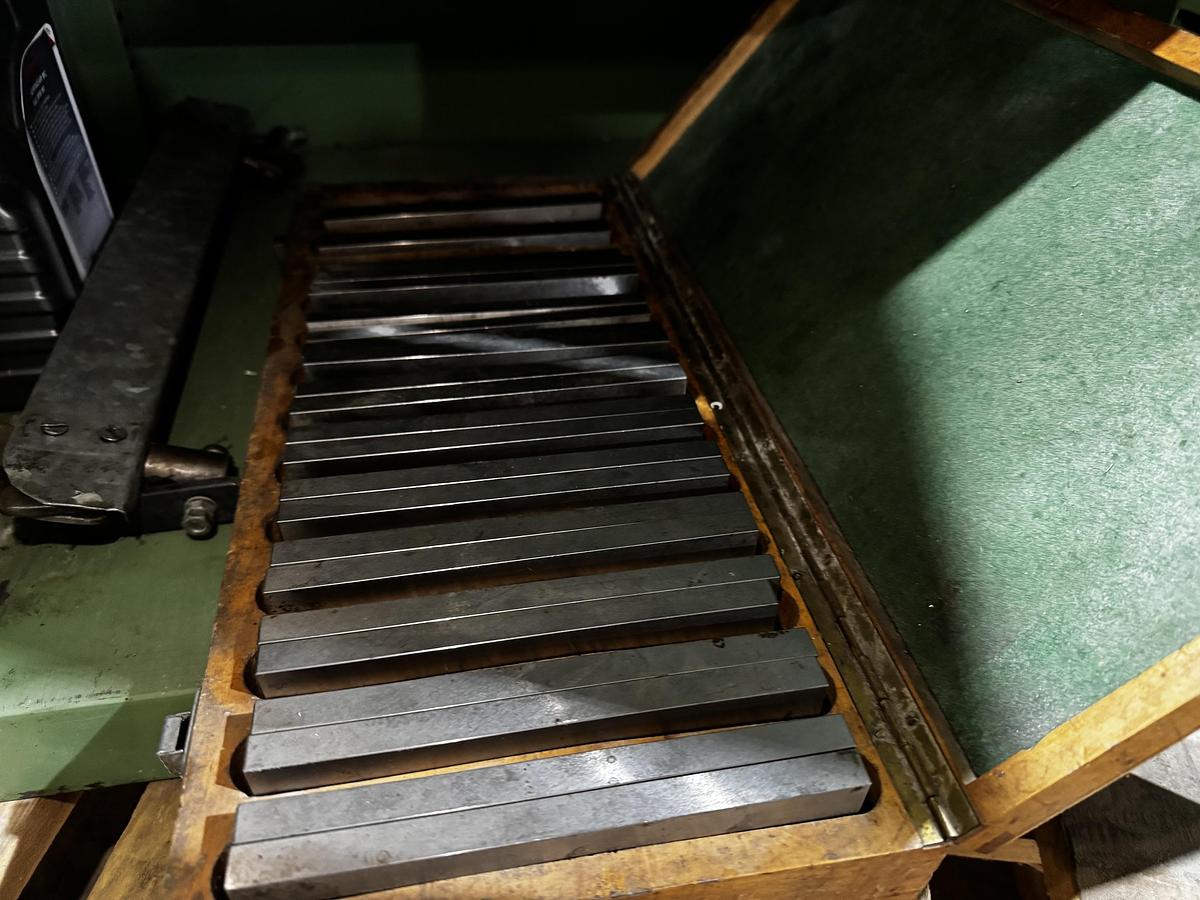

Incl. a tool cabinet with clamping devices, tools and accessories (see pictures)
