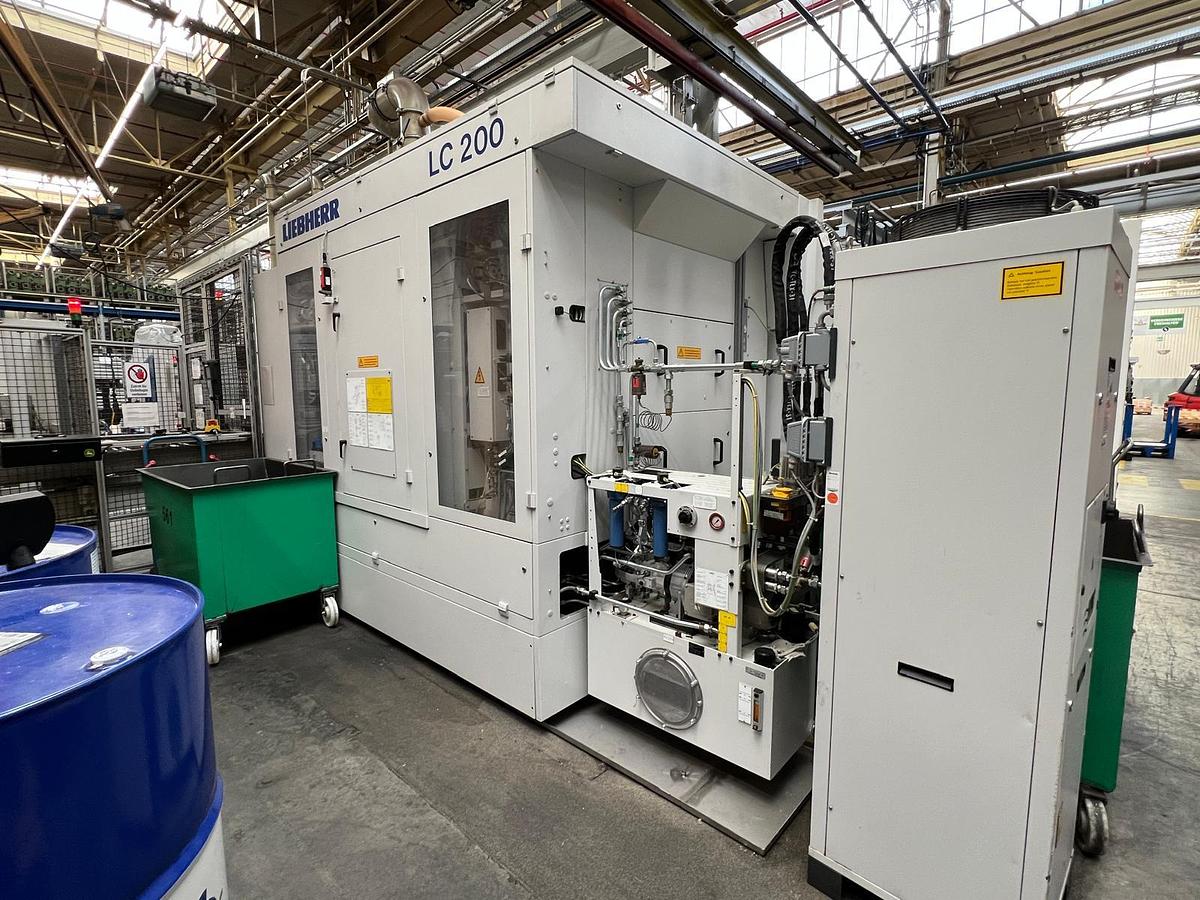

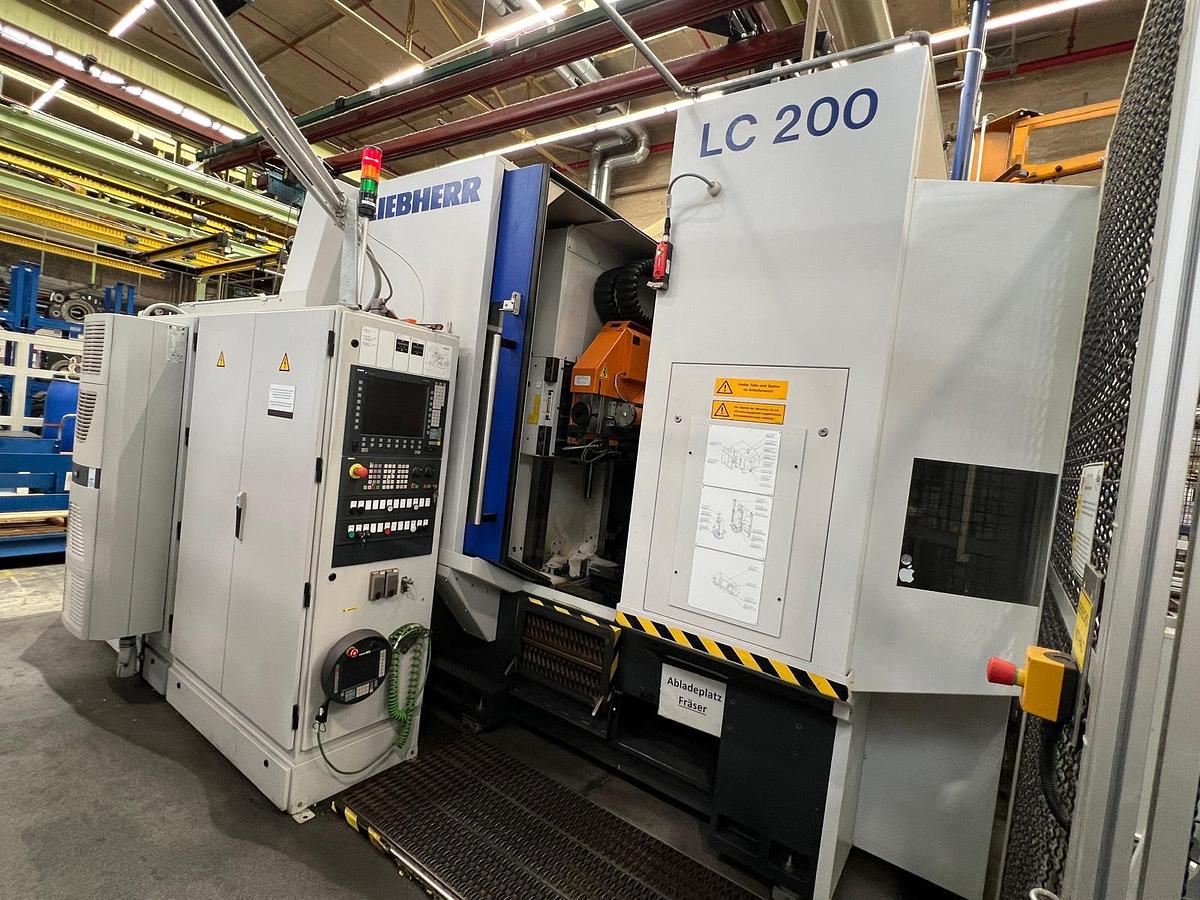

CNC Worm Milling Machine for Gear Machining LIEBHERR LC 200
CNC Worm Milling Machine for Gear Machining LIEBHERR LC 200
Contact us for price
Location:Schwäbisch Gmünd, Germany
Description

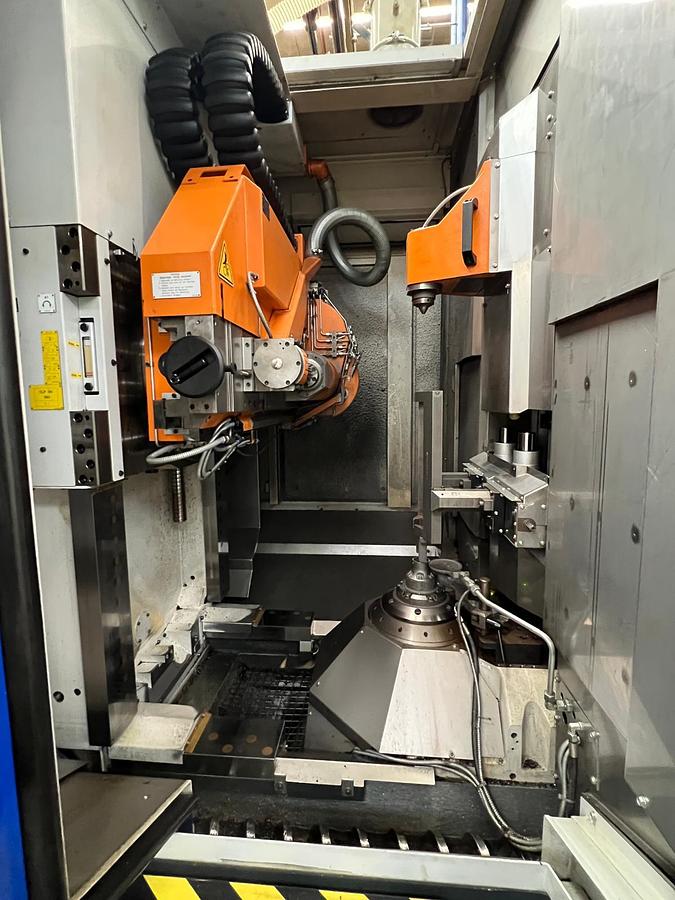

CNC hob and rack milling machine for gear processing
LIEBHERR LC 200
Year of manufacture 2014

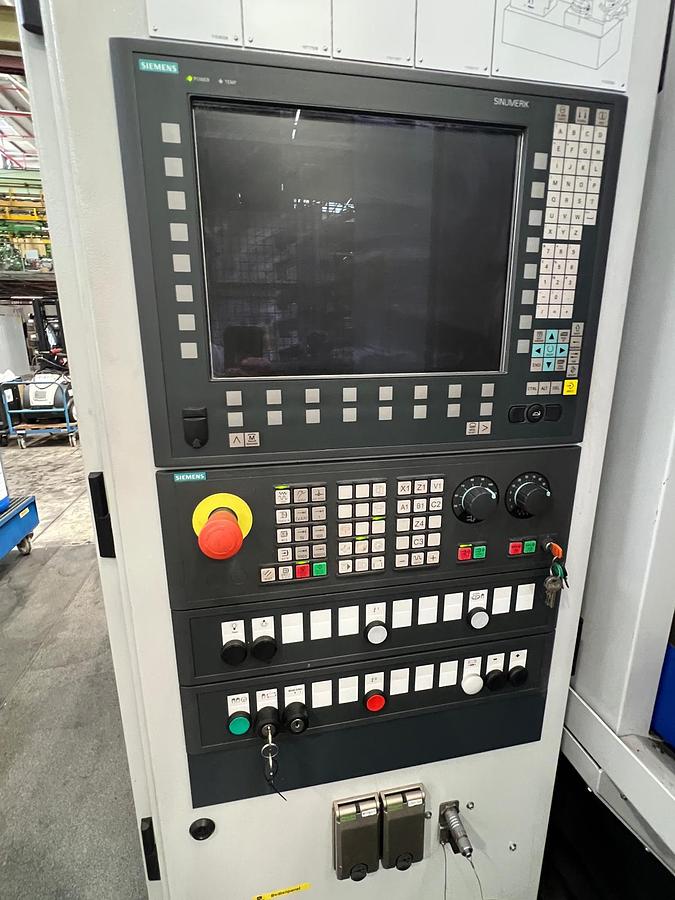

CNC controller SIEMENS 840D Solutionline
TECHNICAL DATA
Max. workpiece diameter: 200 mm
Max. rated module: 7 / 12 mm
Workpiece weight: 100 kg
Max. workpiece length with manual loading: 680 mm; Variant 1,200 mm
Max. axial travel of the milling gantry: 600 mm
Table diameter: 180 mm
Table speed: 100 / 200 / 400 rpm
Spindle center distance - milling cutter to worktable: 15–400 mm
Milling head swivel angle: ±35° / ±45°
Max. travel: 200 / 300 mm
Max. milling diameter: 160 / 220 mm
Max. Milling length: 230 / 330 mm
Cutter spindle speed with gear drive: 500 / 750 / 1,500 / 3,000 min⁻¹
Milling spindle power with gear drive: 14 / 27 kW
Milling head with direct drive: 4,500 min⁻¹, 26 kW
Total connected load: approx. 35–50 kVA
CNC basic version: 6 CNC axes
Processing: Wet and Dry Machining
Machine weight with stand: approx. 16,000 kg
Specifications
| Manufacturer | LIEBHERR |
| Model | LC 200 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 26050 |
| Max. workpiece diameter | 200 mm |
| Max. nominal module | 7 / 12 mm |
| Max. axial travel of the milling slide | 600 mm |
| Table diameter | 180 mm |
| Spindle center distance – cutter-workpiece table | 15–400 mm |
| Milling head swiveling angle | ±35° / ±45° |
| Max. milling length | 230 / 330 mm |
| Milling head with direct drive | 4,500 min⁻¹, 26 kW |
| Milling spindle power with gearbox drive | 14 / 27 kW |
| CNC basic version | 6 CNC axes |
| Machine weight with stand | approx. 16,000 kg |
