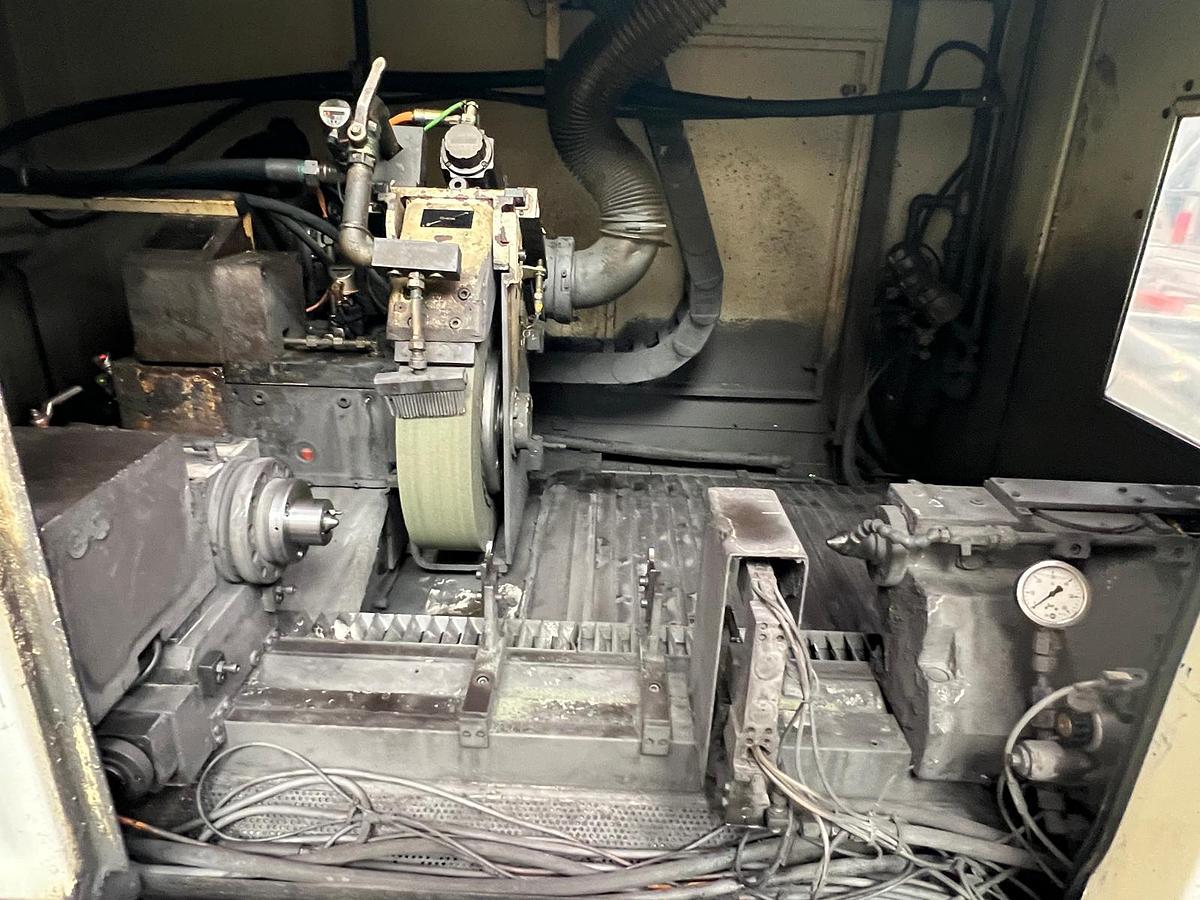

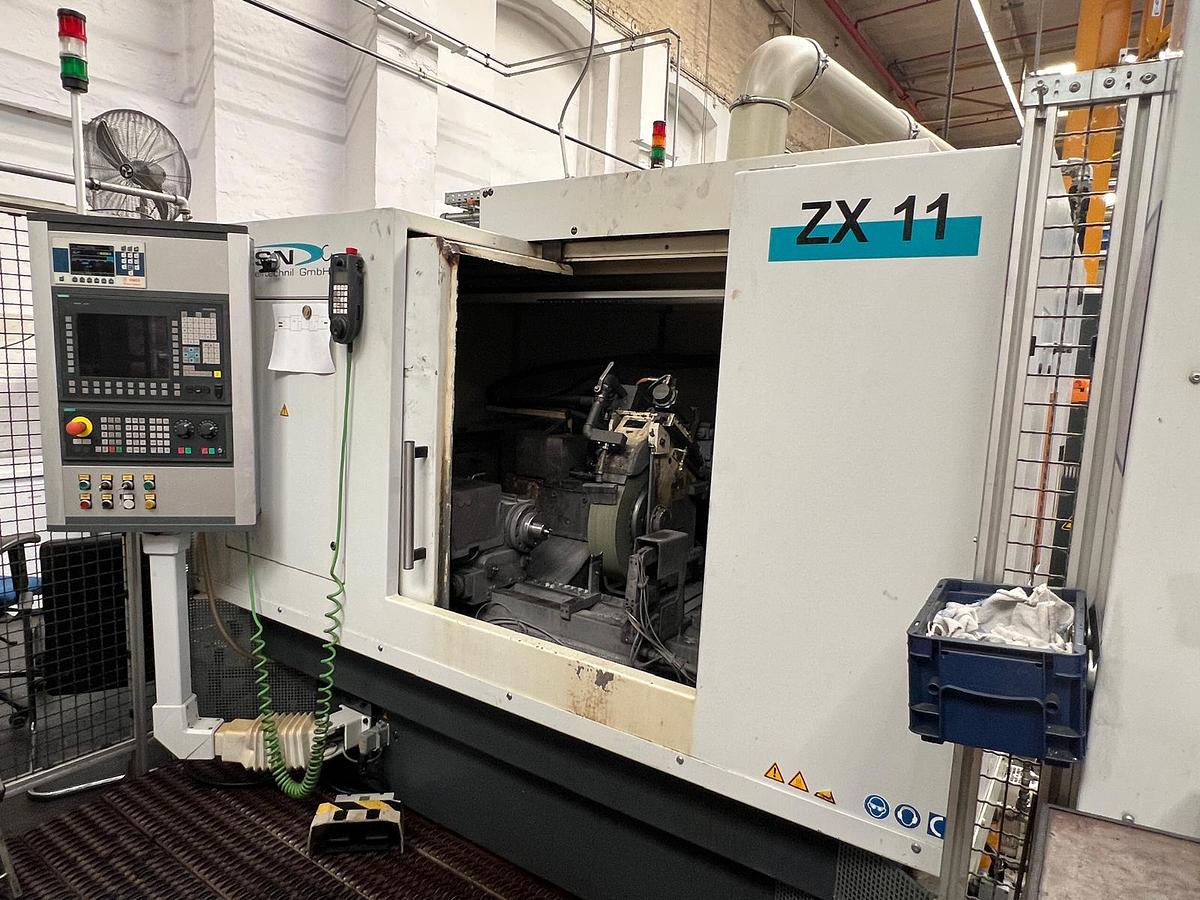

CNC external cylindrical grinding machine GSN SCHAUDT ZX11

CNC external cylindrical grinding machine

GSN SCHAUDT ZX11

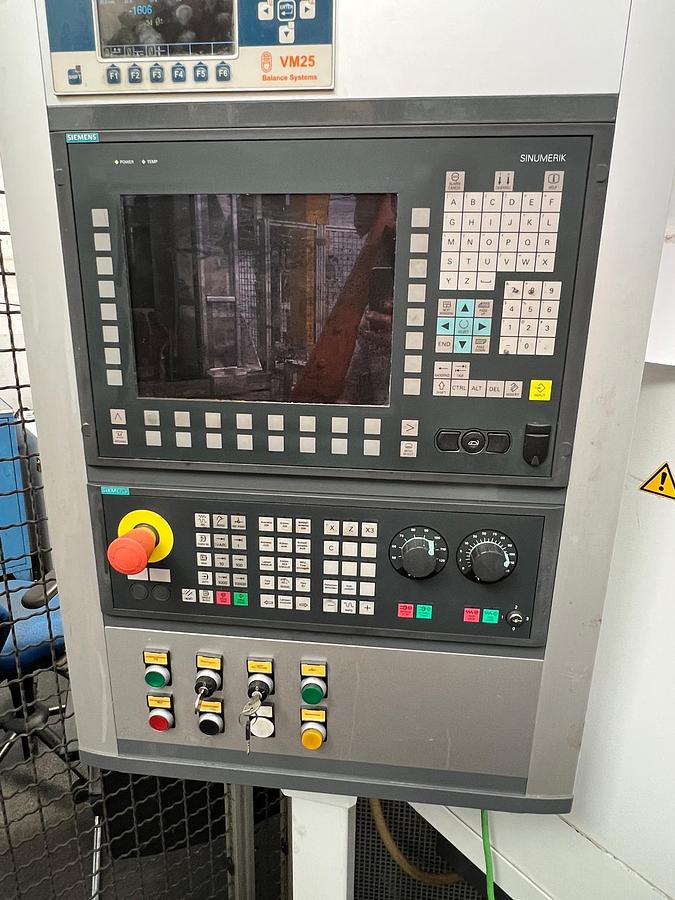

CNC controller SIEMENS 840D Solutionline

Year of manufacture 2014

TECHNICAL DATA:

CNC axes: 2

Tip height: 180 mm

Crown length: 600 mm

Workpiece weight: approx. 80 kg

Workpiece spindle speed: approx. 1–1,200 rpm

Workpiece spindle stock holder: MK 4

Institutional holder chuck: MK 4

Grinding wheel, diameter x width: 500 x 100 mm

Grinding wheel bore: 203.2 mm

Abrasive wheel peripheral speed: 45 m/s

Electrical connection rating: approx. 25 kVA

Machine weight: approx. 5,500 kg

Installation dimensions, length x width: 2,700 × 2,400 mm
