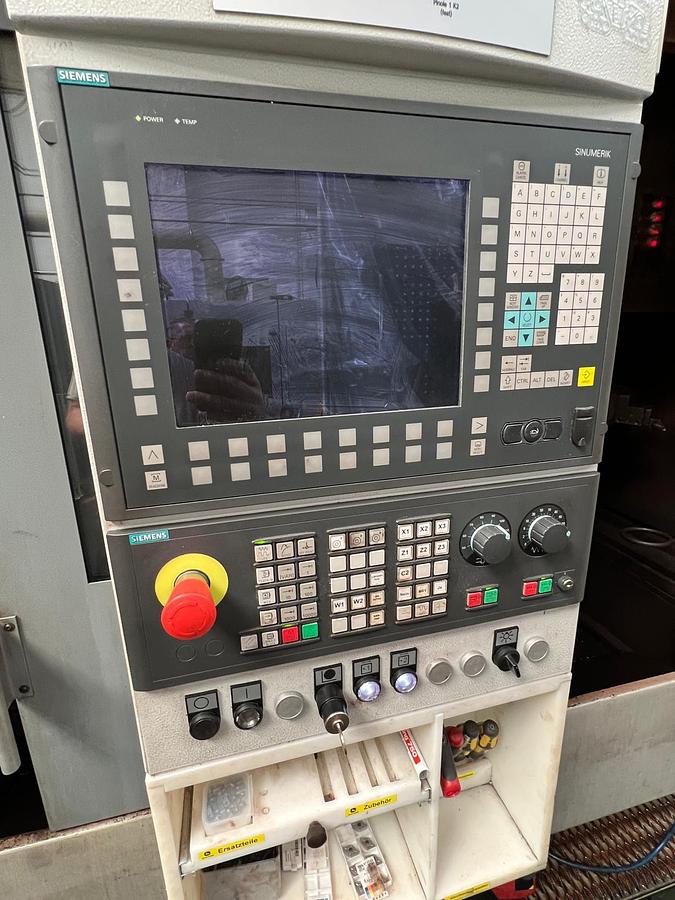

CNC shaft processing center vertical turning machine EMAG VTC 250 DUO

CNC shaft machining center vertical turning machine

EMAG VTC 250 DUO

Year of manufacture 2014

Technical model data:

Feed diameter: 250 mm

Maximum workpiece diameter: 140 mm

Maximum workpiece length: 630 mm, special version 1,000 mm

Maximum workpiece weight: 20 kg

Travel path X-axis: 300 mm

Travel path Z-axis: 740 mm

Maximum main spindle speed: 5,000 min⁻¹

Spindle head: DIN 55026-A, size 6

Front spindle bearing diameter: 110 mm

Main drive power at 40% / 100% duty cycle: 38 / 29 kW; alternative drive version 48 / 38 kW

Torque at 40% / 100% duty cycle: 250 / 200 Nm; alternative drive version 380 / 300 Nm

Rapids travel X-axis: 30 m/min

Rapids Z-axis: 40 m/min

Feed force X-axis: 9.4 kN

Feed force Z-axis: 10 kN

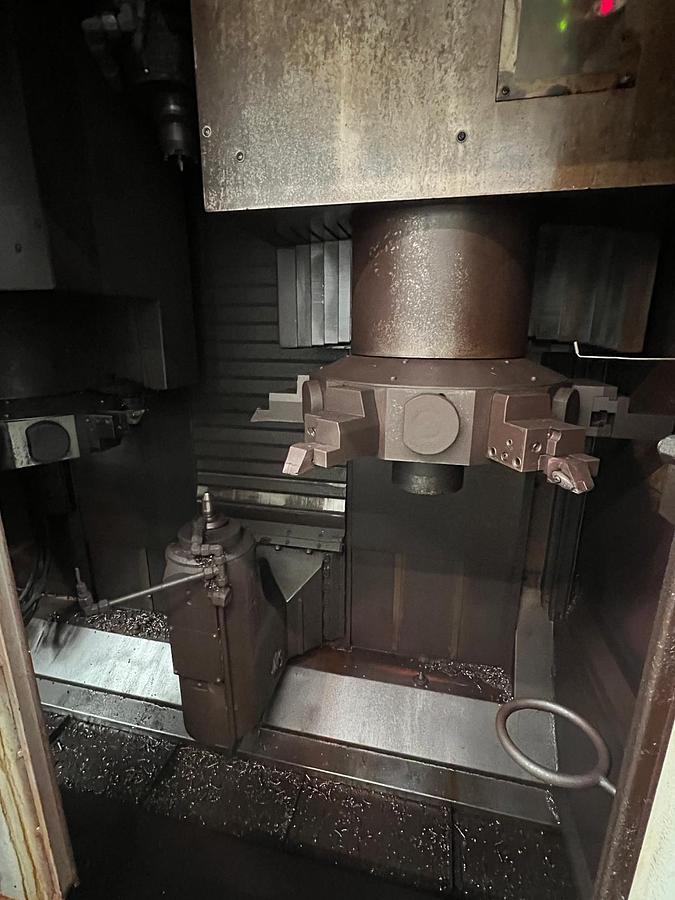

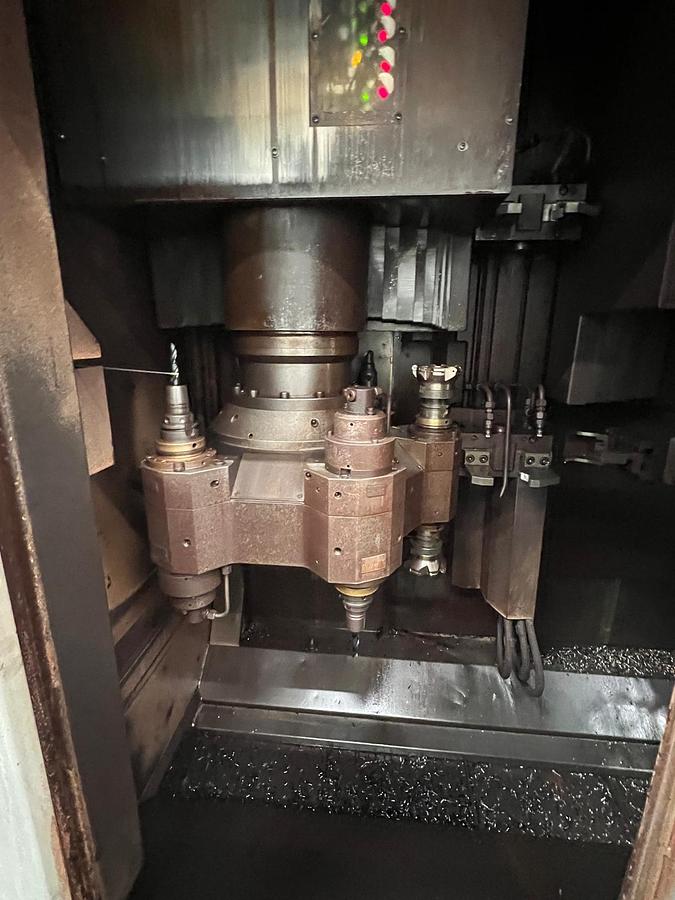

Tool revolver: 2–3, depending on configuration

Tool mounts per turret: 11

Tool holder: DIN 69880 / VDI 40, shank diameter 40 mm

Main spindles: 2; during end processing

Electrical connection power: 90 kW

Total weight: 23,000 kg

The EMAG VTC 250 DUO is designed for automated processing of shafts and shaft-shaped workpieces. The DUO concept combines two processing stations in one machine and enables the combination of several manufacturing steps within an automated sequence.

Depending on the equipment, turning operations can be combined with finishing, cutting to length, centering, as well as drilling and milling operations. The workpiece grippers integrated into the tool turret handle the workpiece transport. The vertical design supports free chip fall; the machine bed made of MINERALIT provides high vibration damping.

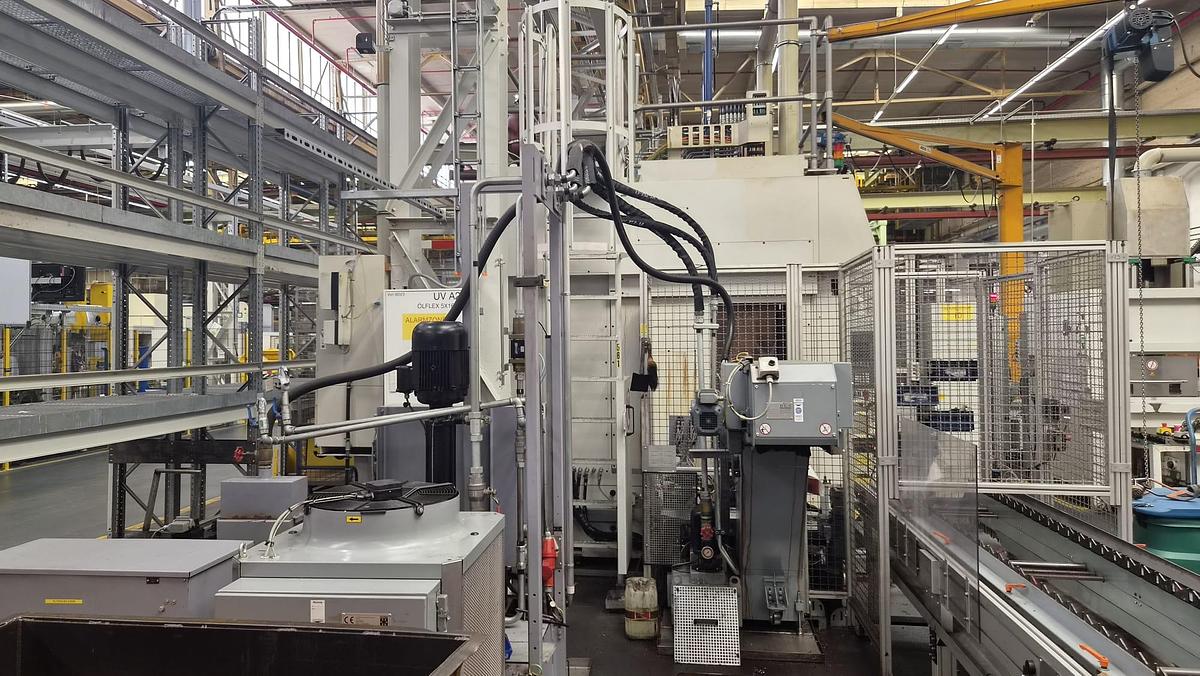

The machine is particularly suitable for the serial production of shafts and can be used as a standalone unit or within a linked production line.
